4.1.6 Call up status data
Options:
• DELETE: Deletes the selected status data file. A warning appears in the
display.
• RENAME: Renames the selected status data file. The character editor
appears.
• CANCEL: Cancels the operation.
4.2 File structure
When the R100 is connected to a PC, it will be displayed as "Removable
Disk".
The folder structure is shown in fig. 2. For PC connection via USB connec-
tion, see fig. 3.

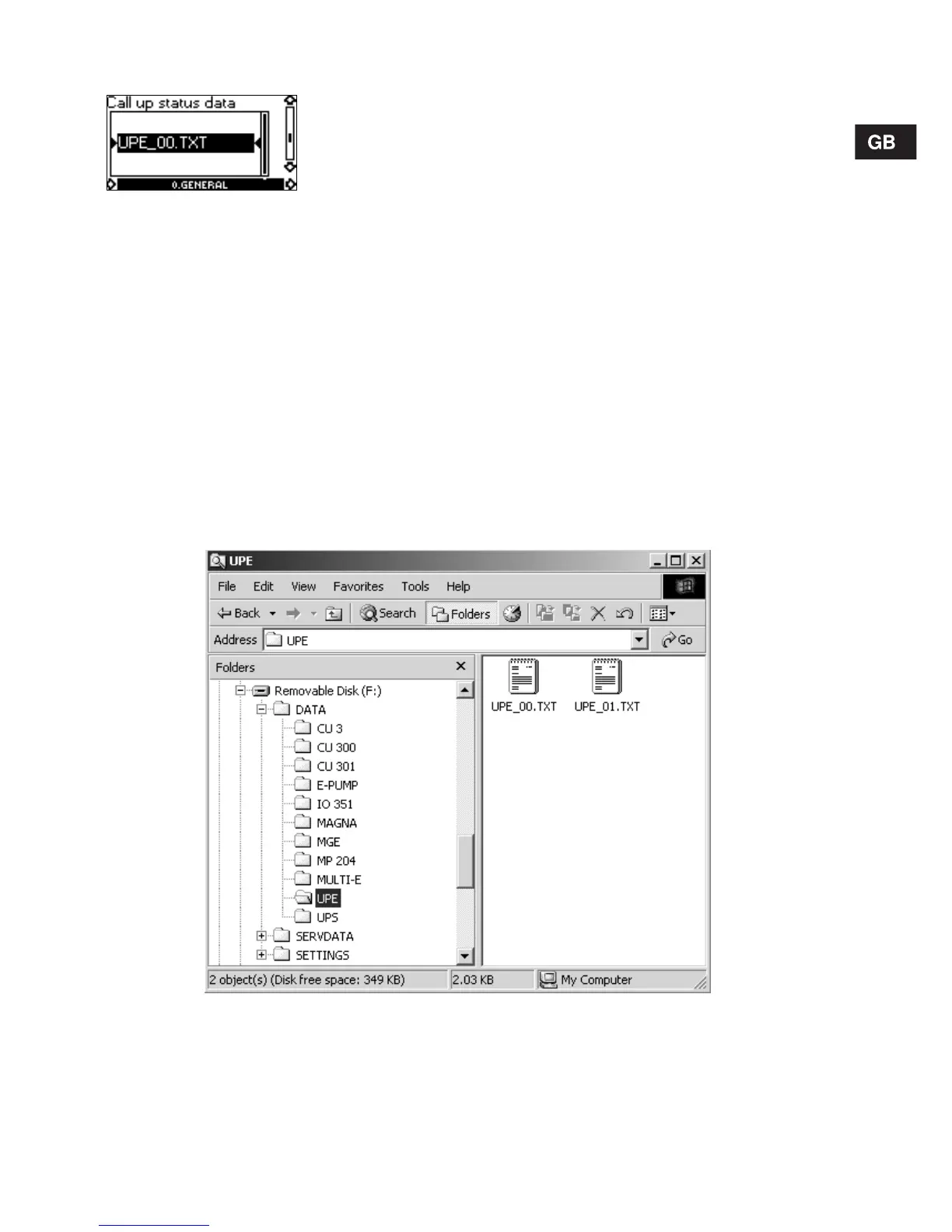

Fig. 2 Folder structure
Each of the main folders contains the product folders: CU 3, CU 300,
CU 301, E-pump, IO 351, MAGNA, MGE, MP 204, Multi-E, UPE, UPS.
Each of the product folders contains the R100 auto-generated files.
Note: The service folder SERVDATA is displayed, but cannot be changed.
Accesses the data files generated by Store status
