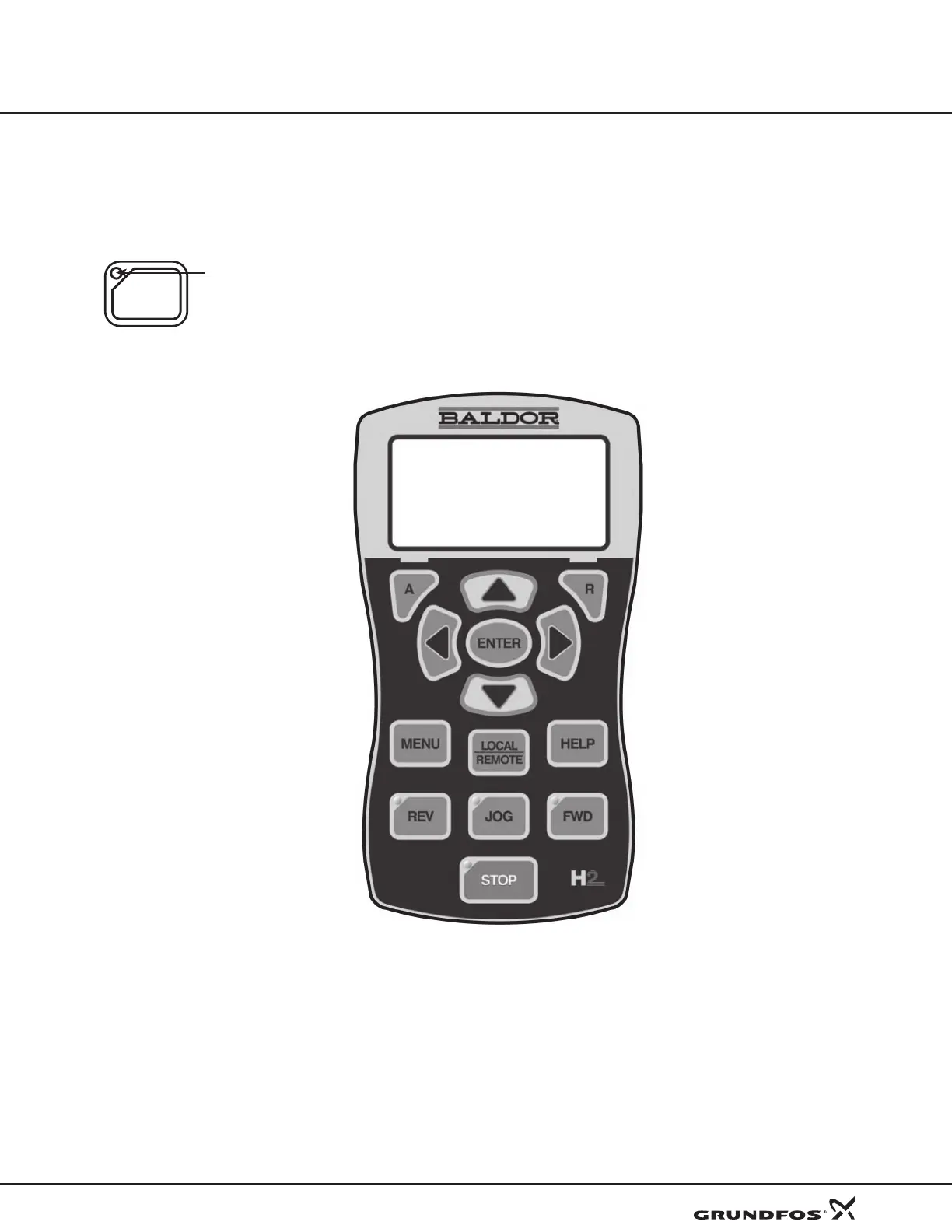

REDI-FlO VFD KEYPAD OVERVIEW
Overview
The keypad is used to program the control parameters, to operate the pump and to
monitor the status and outputs of the pump.
JOG - Press JOG to select the
preprogrammed jog speed. After
the jog key has been pressed,
hold the FWD or REV keys to
run the motor in the direction that
is needed. The JOG key is only
active in the local mode.
FWD - Press FWD to initiate
forward rotation of the motor.
(Active in Local and Jog modes).
REV - Press REV to initiate
reverse rotation of the motor.
(Not active).
STOP - Press STOP to stop the
motor. This key is operational in
all modes of operation unless it
has been disabled by the Keypad
Stop parameter in the Keypad
(programming) Setup Block.
LOCAL - Press LOCAL to change
between the local (keypad) and
remote operation.
PROG (soft key) - Press PROG
soft key to enter the program
mode. While in the program mode
the PROG key is used to edit a
parameter setting.
DIAG (soft key) – Press DIAG
soft key to return to the main
display window.
(Left and Right Arrow).
Press or to move the
cursor when navigating through
the programming menus.
ENTER - Press ENTER to save
parameter value changes. In the
display mode the ENTER key
is used to directly set the local
speed reference. It is also used to
select other operations when
prompted by the keypad display.
HELP - Provides help at each
display screen, setup parameter
and fault. Press to view/close help
information.
(UP and Down Arrow).
Press or to increment
or decrement the value of the
parameter being displayed. Also,
when the fault log or parameter
list is displayed, these keys will
scroll up and down through the
list. In the local mode pressing
the or key will increase or
decrease motor speed.
Indicator Lights
JOG - (Green) lights when Jog is active.
FWD - (Green) lights when FWD direction is commanded.
STOP - (Red) lights when motor STOP is commanded.
s
s
s
s
s
s
s
s
s
s
DIAG STOP LOCAL
MP1
MOTOR VOLTS 0.0V
MOTOR CURR 0.0A
MOTOR FREQ 0.00Hz
PROG 0.00r MAIN
To Next Page
