9.3 Electrical data
9.3.1 Speed

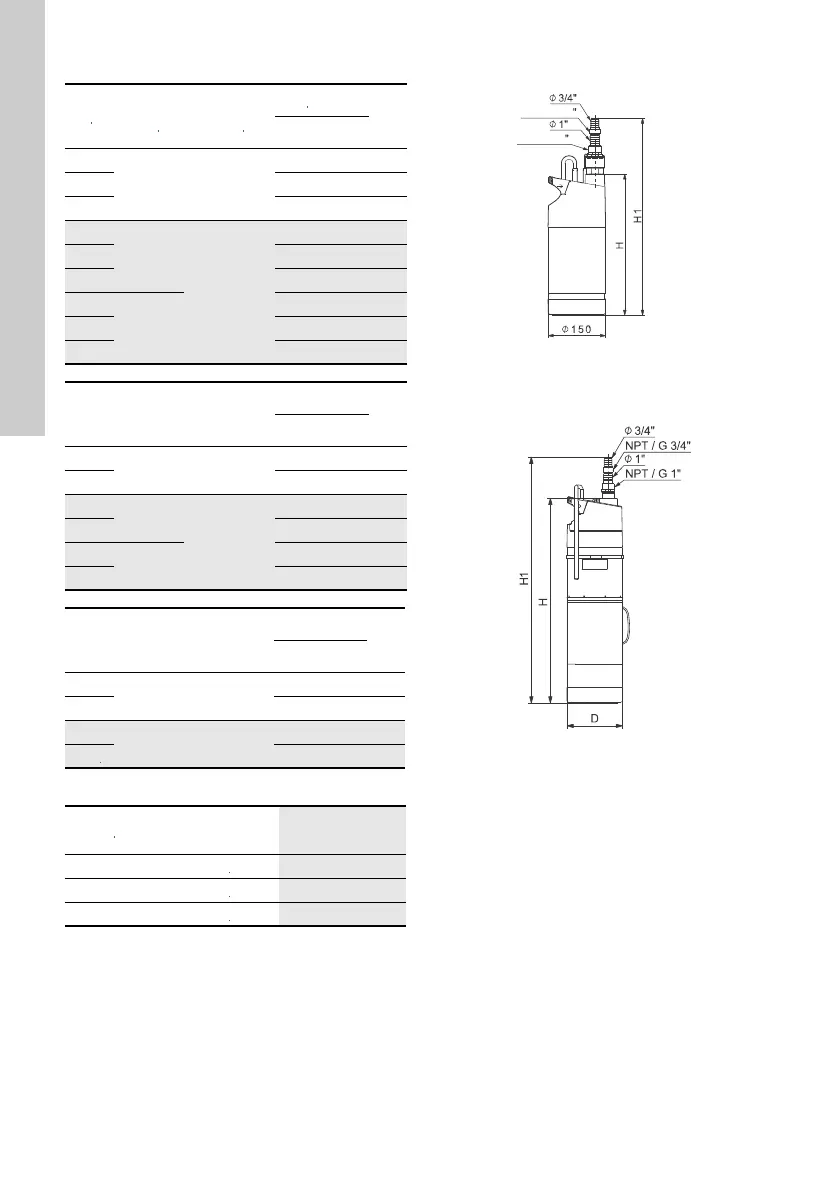

9.4 Dimensions
Fig. 11 SB pump. same dimensions with
integrated inlet strainer and with floating
inlet strainer
Fig. 12 SBA pump. same dimensions with
integrated inlet strainer and with floating
inlet strainer
SB
Voltage
[V]
Frequency
[Hz]
P1 P2
I
1/1
[A]
[kW] [hp]
3-25
1 x 230 50
0.57 0.52 2.8
3-35 0.80 0.72 3.8
3-45 1.05 0.83 4.8
3-25
1 x 115
60
0.70 0.50 5.5
3-35 0.90 0.75 8.4
3-45 1.10 1.00 9.8
3-25
1 x 230
0.57 0.50 2.5
3-35 0.73 0.75 3.3
3-45 0.92 1.00 4.2
SBA
Voltage
[V]
Frequency
[Hz]
P1 P2
I
1/1
[A]
[kW] [hp]
3-35
1 x 230 50
0.80 0.72 3.8
3-45 1.05 0.83 4.8
3-35
1 x 115
60
0.80 0.75 8.4
3-45 1.05 1.00 9.8
3-35
1 x 230
0.74 0.75 3.4
3-45 0.90 1.00 4.1
SB
HF
Voltage
[V]
Frequency
[Hz]
P1 P2
I
1/1
[A]
[kW] [hp]
5-55
1 x 230 50
1.70 1.36 7.0
5-70 2.00 1.60 9.1
5-50
1 x 230 60
1.67 1.36 7.6
5-65 2.07 1.63 9.4
Speed
50 Hz
[min
-1
]
60 Hz
[min
-1
]
SB 2800
3400
SBA 2800
3400
SB HF 2800
3360
TM04 6243 5109TM05 4804 2712
NPT / G 3/4
NPT / G 1
*
*
