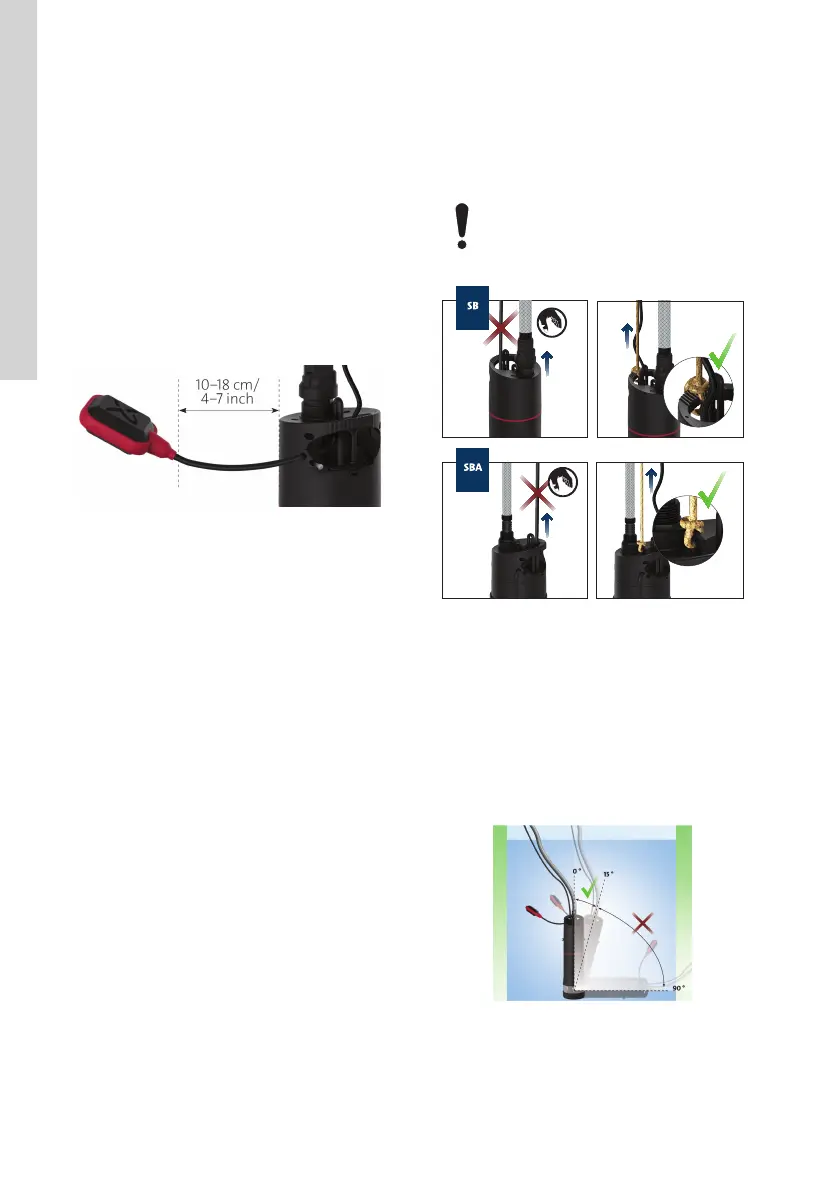

3.1.4 Adjustment of the float switch
To make sure that the float switch can start and stop
the pump, adjust the start and stop level by changing
the free cable length between the float switch and the
lifting handle.
A reduced free cable length results in more starts and
stops and a small difference in level. The minimum
free cable length is 10-18 cm. See fig. Minimum free
cable length for float switch.
An increased free cable length results in fewer
starts and stops and a large difference in level.
Make sure that the float switch can move freely.
Make sure that the stop level does not fall below the
pump inlet strainer.
TM082305
Minimum free cable length for float switch
3.2 Mechanical installation
3.2.1 Lifting the product
Lift the pump by the lifting handle. Never lift the pump
by the power cable. Tie a rope to the lifting handle or
lifting eye instead.
Do not lift the product by the power cable.
Lift the product by means of a rope.
TM071402
Lifting the pump
Related information
3.3.1 Pump position of SB and SBA
3.3
Pump position
3.3.1 Pump position of SB and SBA
Use the pump in the vertical position as shown in fig.
Position of SB, SBA pumps.
TM082310
Position of SB, SBA pumps
Related information
3.2.1 Lifting the product
8
English (GB)
