DANGER
Crushing hazard
Death or serious personal injury
‐ Pumps with installation type S, C and
pressure range S, H are delivered with
a mounted lifting eye and an additional
shackle, which must be used to attach
the hook and the chain correctly.
When lifting the pump, use the right lifting
point to keep the pump balanced for
proper installation. The table below shows
the correct lifting point.
Installation
type
Pressure
range
Lifting
bracket
assembly
Lifting point
S, C
S, H
with lifting
eye and
shackle
Pos. 2, see
fig. Lifting
points,
vertical
installation
M, L, E
no lifting
eye
Pos. 1, see
fig. Lifting
points,
vertical
installation
D
S, H, M, L,
E
no lifting
eye
Pos. 1, see
fig. Lifting
points,
vertical
installation
H
S, H, M, L,
E
no lifting
eye
See fig.
Lifting
points,
horizontal
installation
The following installation types must be lifted at the
lifting bracket:
• types S with pressure range M, L and E
• types C with pressure range M, L and E
• type D.
See fig. Lifting points, vertical installation, pos. 1.
The following installation types must be lifted at the
lifting eye with shackle (at the back of the lifting
bracket):
• types S with pressure range S and H
• types C with pressure range S and H.
See fig. Lifting points, vertical installation, pos. 2.
Installation type H can be lifted by a hole in the flange
and the middle lifting point. See fig. Lifting points,
horizontal installation.
1
2
TM075107

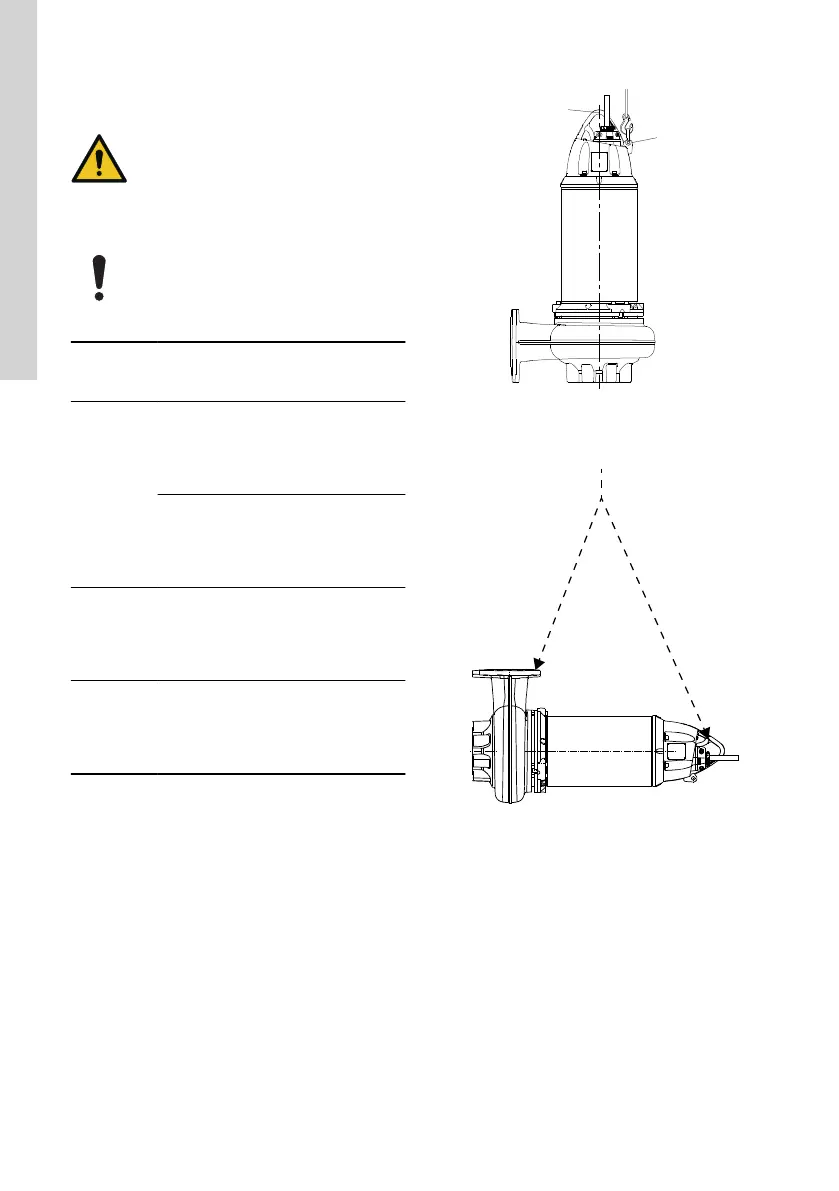

Lifting points, vertical installation
TM075108
Lifting points, horizontal installation
12
English (GB)
