TM031561
WIO sensor

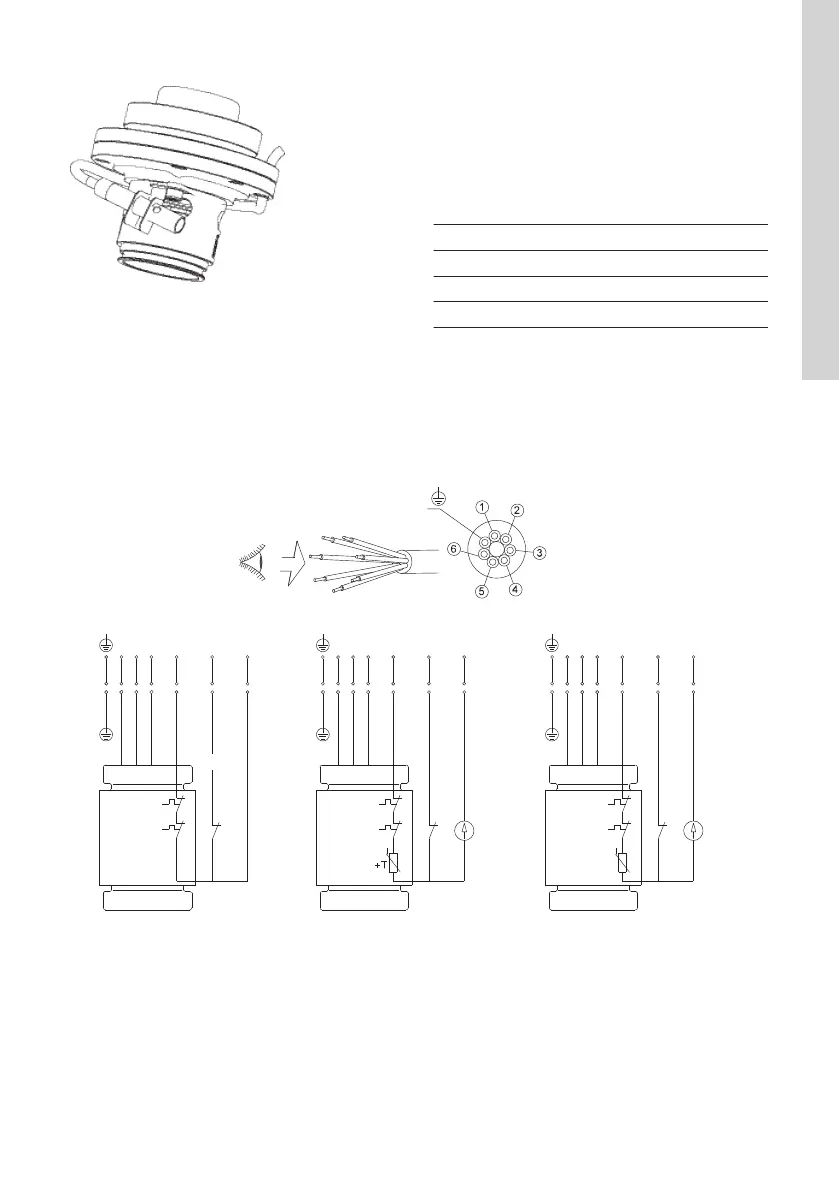

Fitting the WIO sensor
Fit the sensor next to one of the shaft seal openings.
See fig. Jerk direction. The sensor must be tilted into
the direction of rotation to ensure that oil is led into
the sensor. Make sure that the sensor is submerged
in the oil.
Technical data
Input voltage 12-24 VDC
Output current 3.5 - 22 mA
Power input 0.6 W
Ambient temperature 0 to 70 °C
Wiring diagrams
7-core cable
The figure below shows the wiring diagrams for SE1, SEV pumps with 7-core cable in three versions, one
without sensors and two with WIO sensor and moisture switch.
L1 L2 L3
T1 T2 T3
1 2 3 4 5
6
1 2 3 4 5
6
L1 L2 L3
P1
P2 P5
1 2 3 4 5
6
L1 L2 L3
P1
P2 P5
M WIO
M
WIO
N/A
Y&G
A B C
TM046884
Wiring diagram, 7-core cable, DOL
21
English (GB)
