English (GB)
20
6.1.1 Setting start levels with controller
LC 220
Select the start levels via the DIP switches. Choose
between LOW and HIGH. The stop and alarm levels
are setup automatically according to the chosen start
level.
See the installation and operating instructions of the
controller for more information about the DIP
switches.
The preset values of start, stop and alarm levels can
be changed via the PC tool, which can be ordered as
accessory. Use product number 96705378.
LC 221
Go go [Setup], then [L_01] and choose between the
following start levels. The stop and alarm levels are
setup automatically according to the chosen start
level.
6.1.2 Setting start levels with float switches
Set the start and stop level by adjusting the length of
the free cable (L).

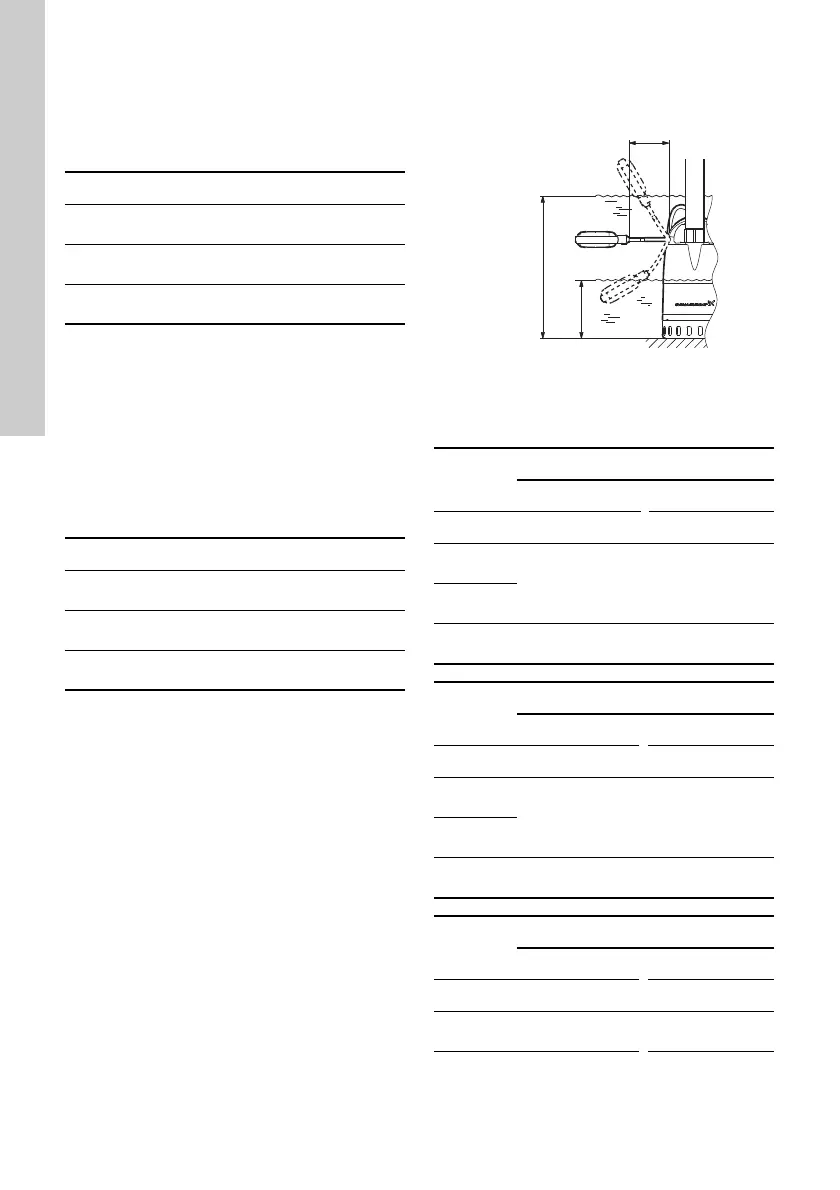

Fig. 23 Example start/stop levels for Unilift CC
We recommend start and stop levels corresponding
to a cable length between the minimum and
maximum indicated below.
LOW HIGH
Start level
[mm]
180 500
Stop level
[mm]
100 100
Alarm level
[mm]
350 600
12345
Start level
[mm]
180 250 350 450 500
Stop level
[mm]
100 100 100 100 100
Alarm level
[mm]
350 400 550 600 600
TM03 0829 0505
Unilift KP
Cable length (L)
70 mm (min) 150 mm (max)
Start Stop Start Stop
Unilift KP
150
290 140 335 100
Unilift KP
250
Unilift KP
350
300 150 345 110
Unilift CC
Cable length (L)
100 mm (min) 200 mm (max)
Start Stop Start Stop
Unilift CC
5
350 115 400 55
Unilift CC
7
Unilift CC
9
350 150 435 90
Unilift
APB
Cable length (L)
100 mm (min) 400 mm (max)
Start Stop Start Stop
Unilift
AP35/50B
430 320 460 140
Start
Stop
L
