English (GB)
4
2.2 Inspecting the product
1. Check that the product is as ordered.
2. Check that no visible parts have been damaged.
3. If parts are damaged or missing, contact your
local Grundfos sales company and refer to the
product numbers in section 2.3 Scope of delivery.
2.3 Scope of delivery
The scope of delivery depends on your order.
Pumps, tank and pipework are delivered separately
and are to be assembled.
Description of kits
CAUTION
Back injury
• Minor or moderate personal injury
• Get assistance from another person or
use lifting equipment to carry the
product.
CAUTION
Crushing of feet
• Minor or moderate personal injury
• Wear safety shoes when moving the
product.
Tank
Designation
Quantity
270 litres
tank
540 litres
tank
Tank 1 1
Cover with gasket 1 2
Screw, M8 x 30 12 24
Washer 12 24
Fastening brackets for
level sensor tube
22
Screws for fixing tank 4 4
Plugs for fixing tank 4 4
Socket seal, DN 40 1 1
Socket seal, DN 100 1 1

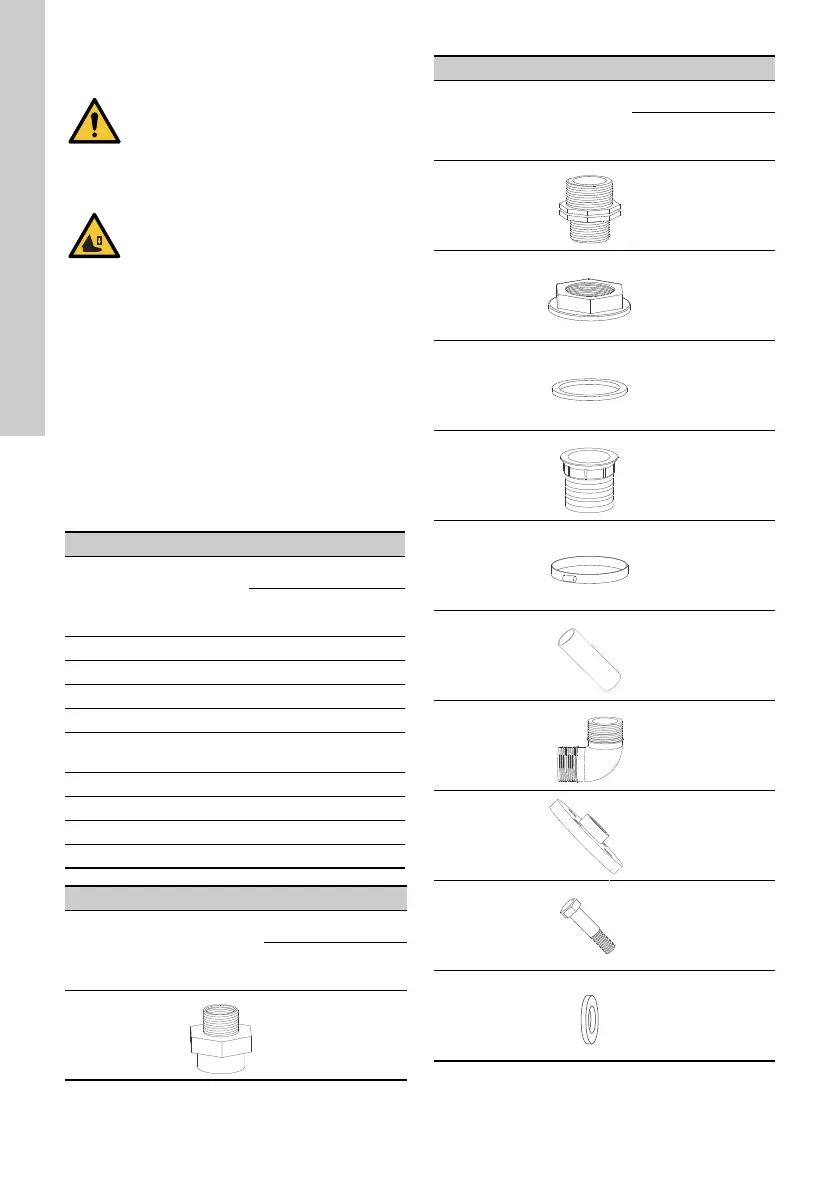

Inner connection pipes
Designation
Quantity
KP/
CC
SEG APB
Adaptor Rp 2 -
R 1 1/2
11-
Double socket
R 2 - R 2
111
Nut, PVC, 2" 1 1 1
O-Ring Ø60,
EPDM
--1
Nozzle adaptor,
F
222
Clamp,
stainless steel
222
Flexible
connecting
piece ∅50
111
Elbow 90° - 1 1
Flange ∅50 - 1 -
Screw,
for flange
-4-
Washer,
for flange
-8-
Inner connection pipes
Designation
Quantity
KP/
CC
SEG APB
