GRUNDIG Service CINIO AVR 5200 DD
2 - 11

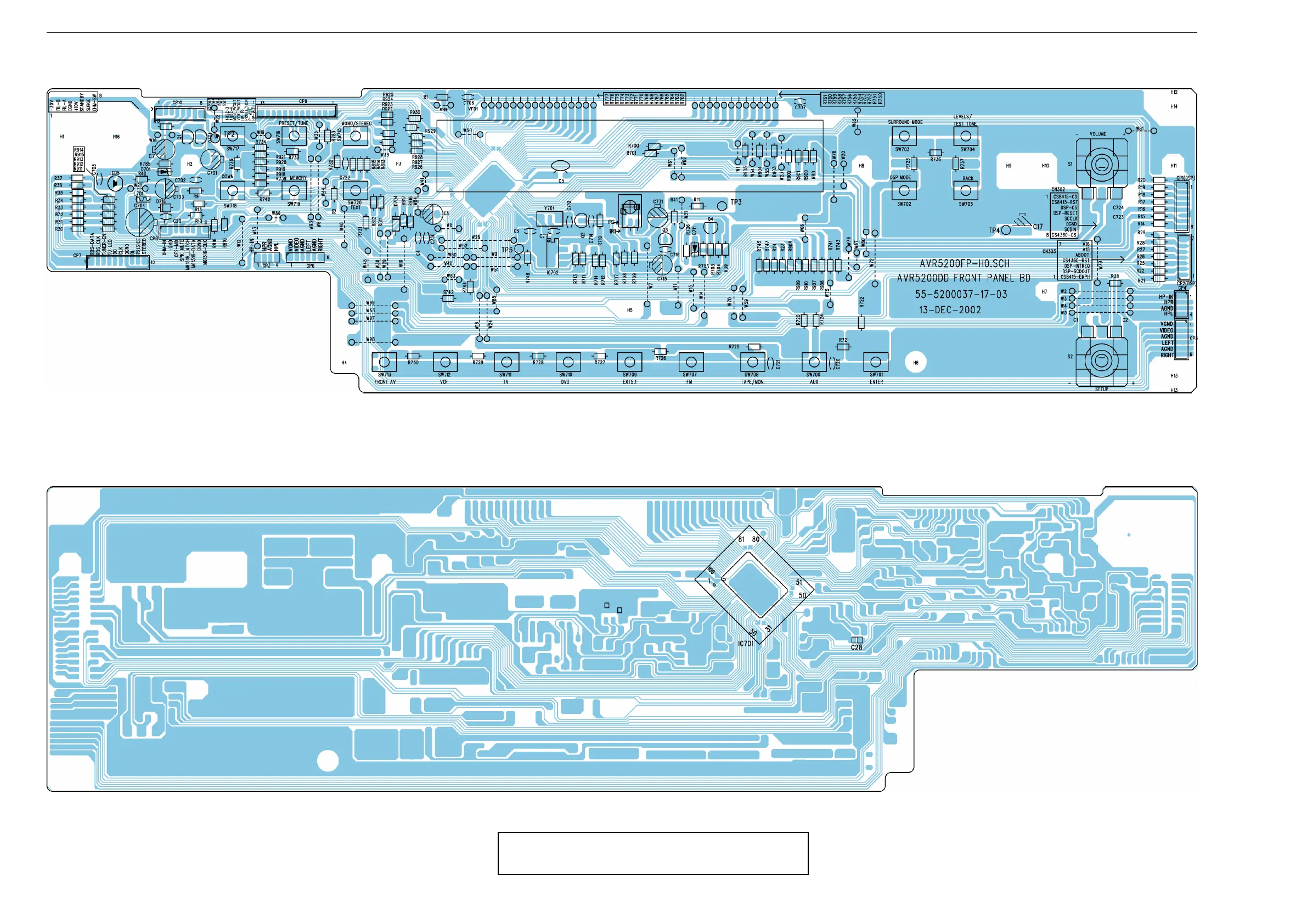

Front-Platte / Front Board
Sicht auf Bestückungsseite / View on Component Side
Sicht auf Lötseite / View on Solder Side
Für die tatsächliche Bauteilbestückung ist das Schaltbild maßgebend!
The circuit diagram is relevant for the actual component assembly!
