GRUNDIG Service CINIO AVR 5200 DD
2 - 13
DSP-Platte / DSP Board

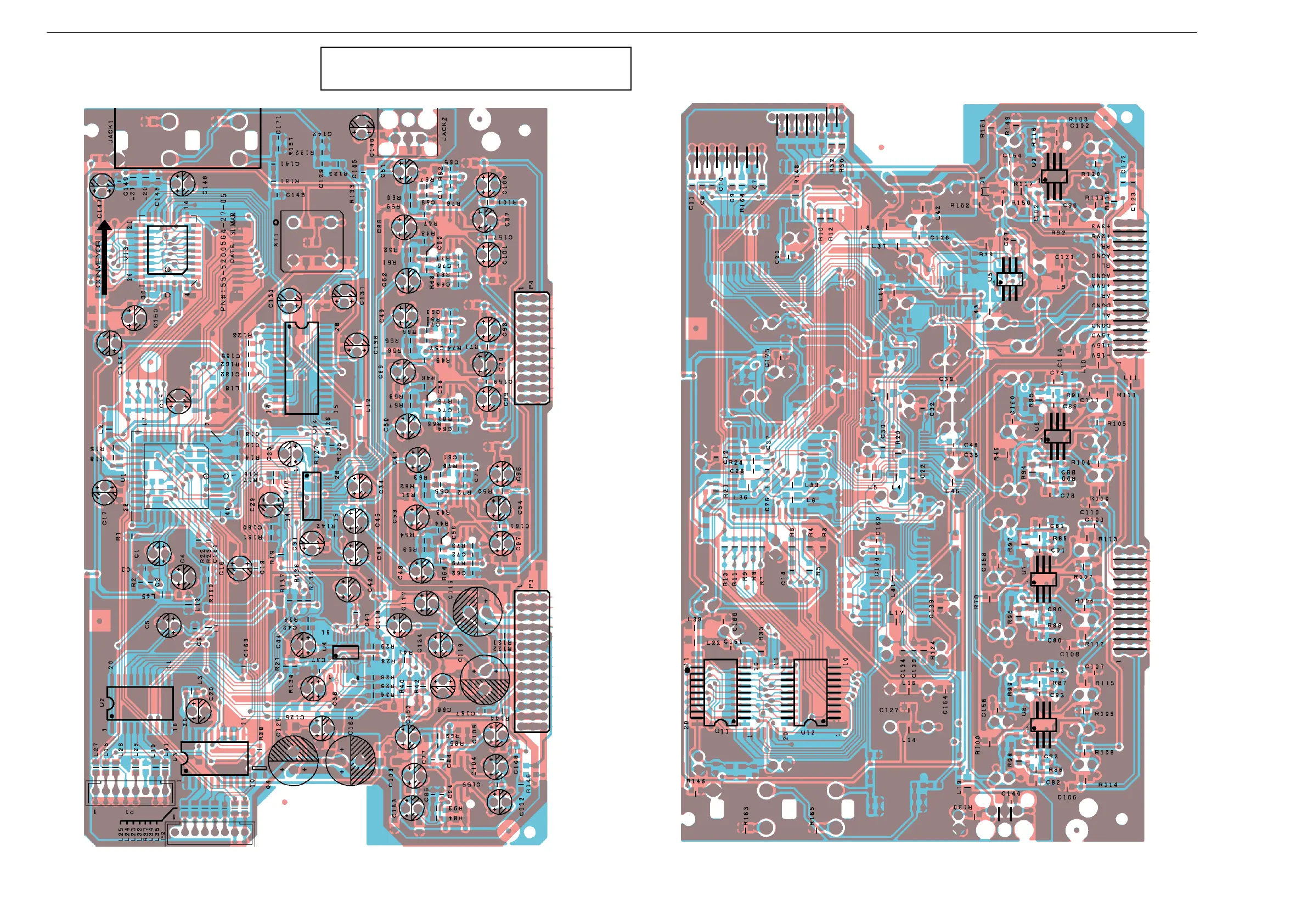

Sicht auf Bestückungsseite / View on Component Side Sicht auf Lötseite / View on Solder Side
Für die tatsächliche Bauteilbestückung ist das Schaltbild maßgebend!
The circuit diagram is relevant for the actual component assembly!
