Grundig MCD 36 - INSTALLATION; Carpet Installation (Horizontal); Carpet Installation (Vertical)

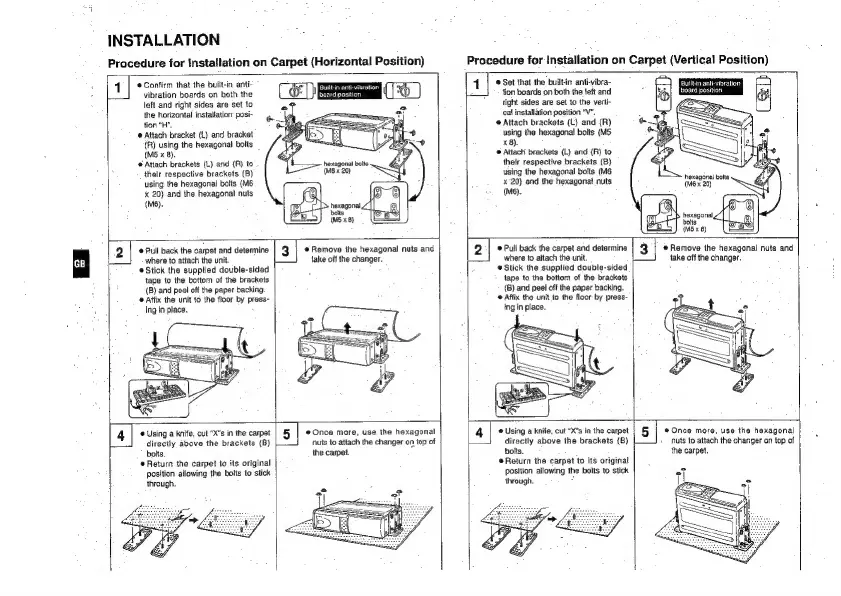

INSTALLATION
Procedure for Installation on Carpet (Horizontal Position)
Procedure for Installation on Carpet (Vertical Position)
4 | # Confirm that the built-in anti-
vibration boards on both the
left and right sides are set to
the horizontal installatiorr posi-
tion “H".
@ Attach bracket (L} and bracket
(R) using the hexagonal bolts
(M5 x 8).
@ Attach brackets (L) and (R) to
their respective brackets (B)
using the hexagonal bolts (M6
Xx 20) and the hexagonal nuts
(M6).
a
© Sot that the built-in anti-vibra-
fion boards on both the teft and
right sides are set to the verti-
cal installation position “V".
*Altach brackets (L) and (R)
using the hexagonal bolts (M5
x8).
© Attacly brackets (L) and (R) to
their respective brackets (B)
using the hexagonal bolts (M6
x 20) and the hexagonal nuts
(M6).
hexagonal bolts
(M6 x 20)
Pull back the carpet and determine
where to attach the unit.
Stick the supplied double-sided
tape to the bottom of the brackets
(B) and peel off the paper backing
© Affix the unit to the floor by press-
ing in place.
# Remove the hexagonal nuts and
take off the changer.
[2]
‘® Pull back the carpet and determine
where to attach the unit.
© Stick the supplied double-sided
tape to tha bottom of the brackets
(8) and peel off the paper backing.
‘© Affix the unit to the floor by press-
ing in place.
@ Remove the hexagonal nuts and
take off the changer.
4 | © Using a knife, cut "X's in the carpet
directly above the brackets (B)
bolts.
Return the carpet to its original
position allowing the bolts to stick
through.
5 | ¢0nce more, use the hexagonal
nuts to attach the changer on top of
the carpet.
© Using a knife, cut “X’s in the carpet
directly above the brackets (B)
bolts.
© Return the carpet to its original
position allowing the bolts to stick
through. :
Once more, use the hexagonal
nuts to attach the changer on top of
the carpet.
