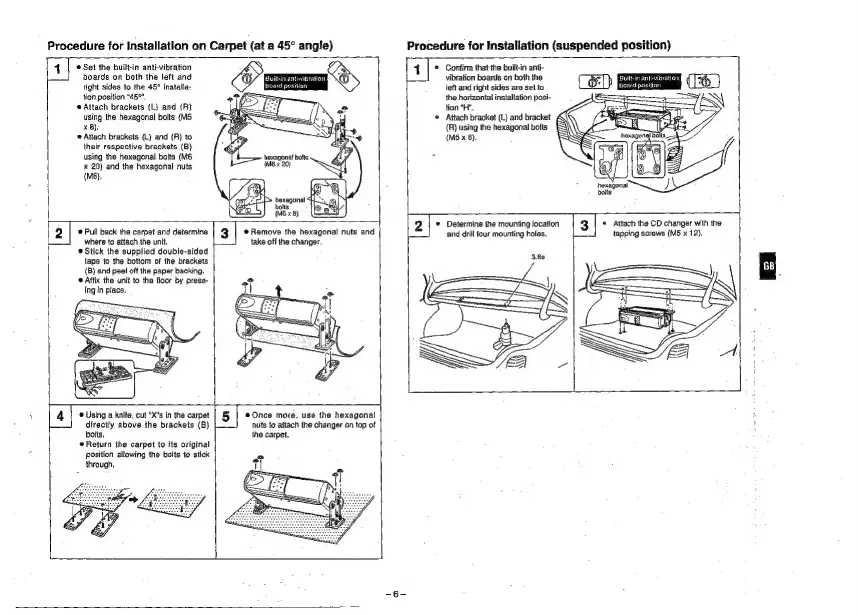

Grundig MCD 36 - Carpet Installation (45° Angle); Suspended Installation

Procedure for Installation on Carpet (at a 45° angle)
Procedure for Installation (suspended position)
1
Set the built-in anti-vibration
boards on both the left and
right sides to the 45° installa-
tion position “45°”.
* Attach brackets (L) and (R)
using the hexagonal bolts (M5
x8):
® Attach brackets (L) and (R) to
their respective brackets (B)
using the hexagonat bolts (M6
x 20) and the hexagonal nuts
(M6).
71
© Pull back the carpet and determine
where to attach the unit.
* Stick the supplied double-sided
tape to the bottom of the brackets
(B) and psel off the paper backing.
@ Affix the unit to the floor by press-
ing in place.
BE
Remove the hexagonal nuts and
take off the changer.
© Using a knife, cut “X"s in the carpet
directly above the brackets (B)
hoits,
Return the carpet to its original
position allowing the baits to stick
through,
5 | ¢Once more, use the hexagonal
nuts fo attach the changer on top of
the carpet.
| 4 =| * Confirm thatthe built-in anti-
vibration boards on both the
{eft and right sides ara set to.
the horizontal installation posi-
tion “H",
© Attach bracket (L) and bracket
(R) using the hexagonal bolts
(M5 x 8).
and drill four mounting holes.
* Determine the mounting location
* Attach the CD changer with the
tapping scraws (MS x 12).
