DVD Connections
Playing the DVD
19
Connection
1. Turn on the LCD TV and press on the remote controller.
2. Use to move to "Component 1/2".
·If S-Video has been connected, select "S-Video 1/2".
·If SCART terminal has been connected, select SCART1 or SCART2.
3. Turn on the DVD, insert the DVD and press Play button.
※ Connection terminals of other appliances differ by manufacture and model.
< LCD TV Back view >
< LCD TV Back view >
< LCD TV Back view >
Component cable
Audio cable
(R)
(L)

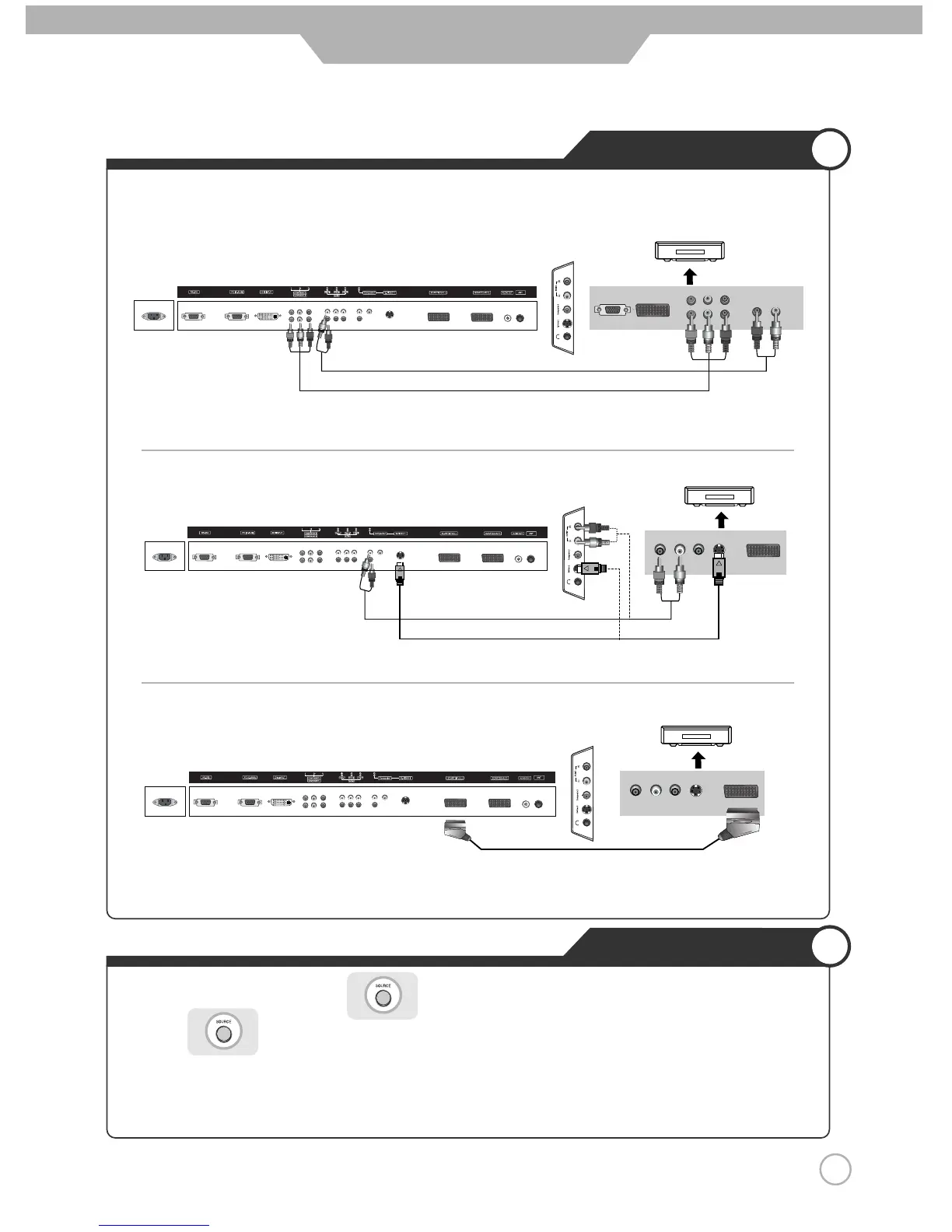

1. Connect LCD TV's Y, Pb,Pr terminal in component 1/2 to DVD's Video Out terminal using the external cable.
2. Connect LCD TV's Audio terminals (left & right) in component 1/2 to DVD's Audio Out terminal using the Audio cable.
※ S-Video cable can be used if there is an S-Video terminal.
·Connect the SCART terminal of the LCD TV to the DVD with the SCART cable.
● Connecting to the component terminal
● Connecting to the S-Video terminal
● Connecting to the SCART terminal
PrPbY
S-Video Cable
SCART Cable
Audio Cable
< DVD >
< DVD >
< DVD >
(R) (L)
(R) (L)
