1. Turn on the LCD TV and press on the remote controller.
2. Use to move to "Composite 1/2".
·If S-Video has been connected, select "S-Video 1/2".
·If SCART terminal has been connected, select SCART1 or SCART2.
3. Turn on the VCR, insert the tape and press play button.
VCR Connections
·Connect the LCD TV's Composite In terminal to the VCR's Composite Out terminal using the Composite cable.
(Make sure the colour of the terminals and the colour of the cable are the same)
※ Use the S-Video cable for higher picture quality.
※ Connection terminals of other appliances differ by manufacture and model.
< LCD TV Back view >
< LCD TV Back view >
Composite Cable
S-Video Cable
SCART Cable
Auto Cable
·Connect the SCART terminal of the LCD TV and the VCR with the SCART cable.
< VIDEO >
(R) (L)
< VIDEO >
(R) (L)
< VIDEO >
(R) (L)

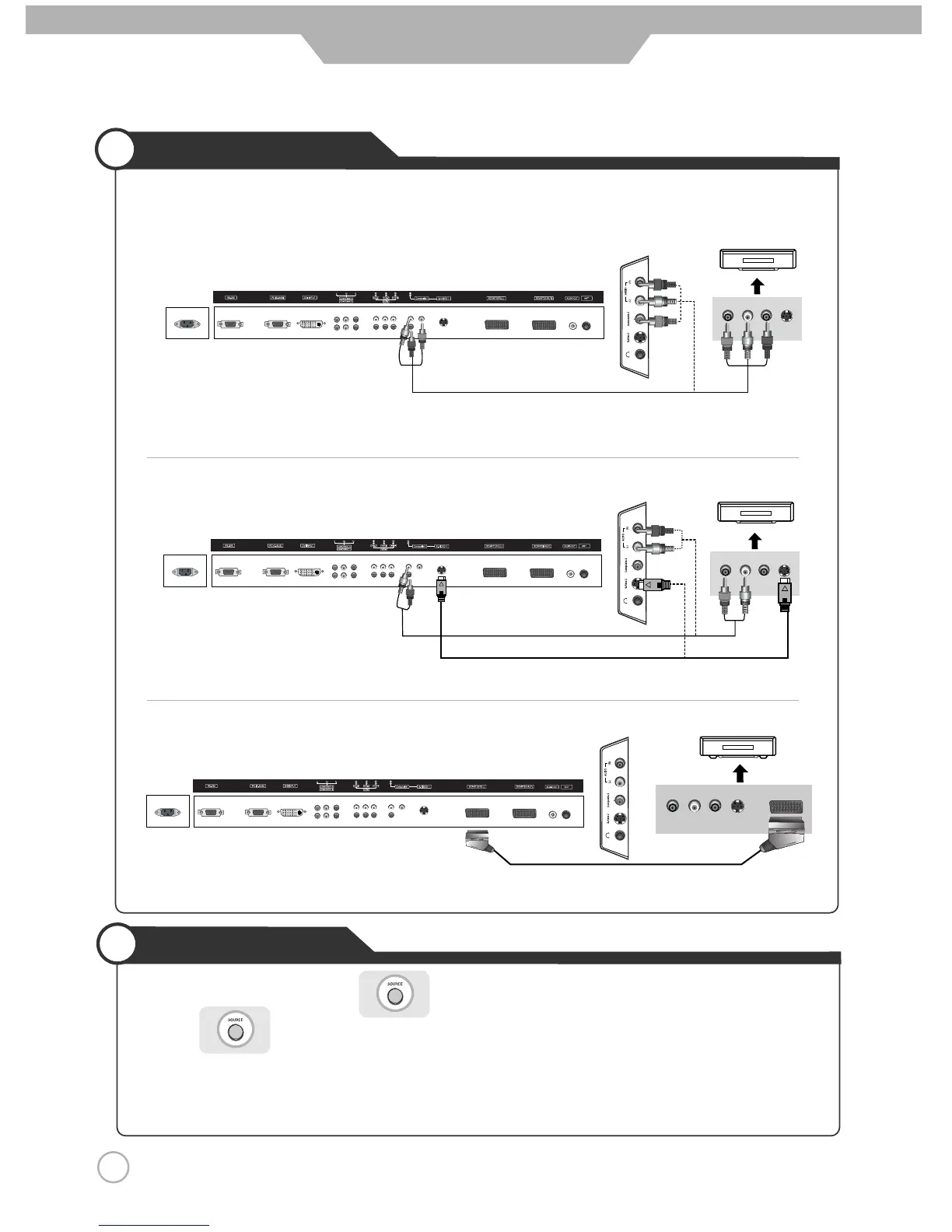

● Connecting to the composite terminal
● Connecting to the S-Video terminal
● Connecting to the SCART terminal
< LCD TV Back view >
Playing the VCR
16
Connection
