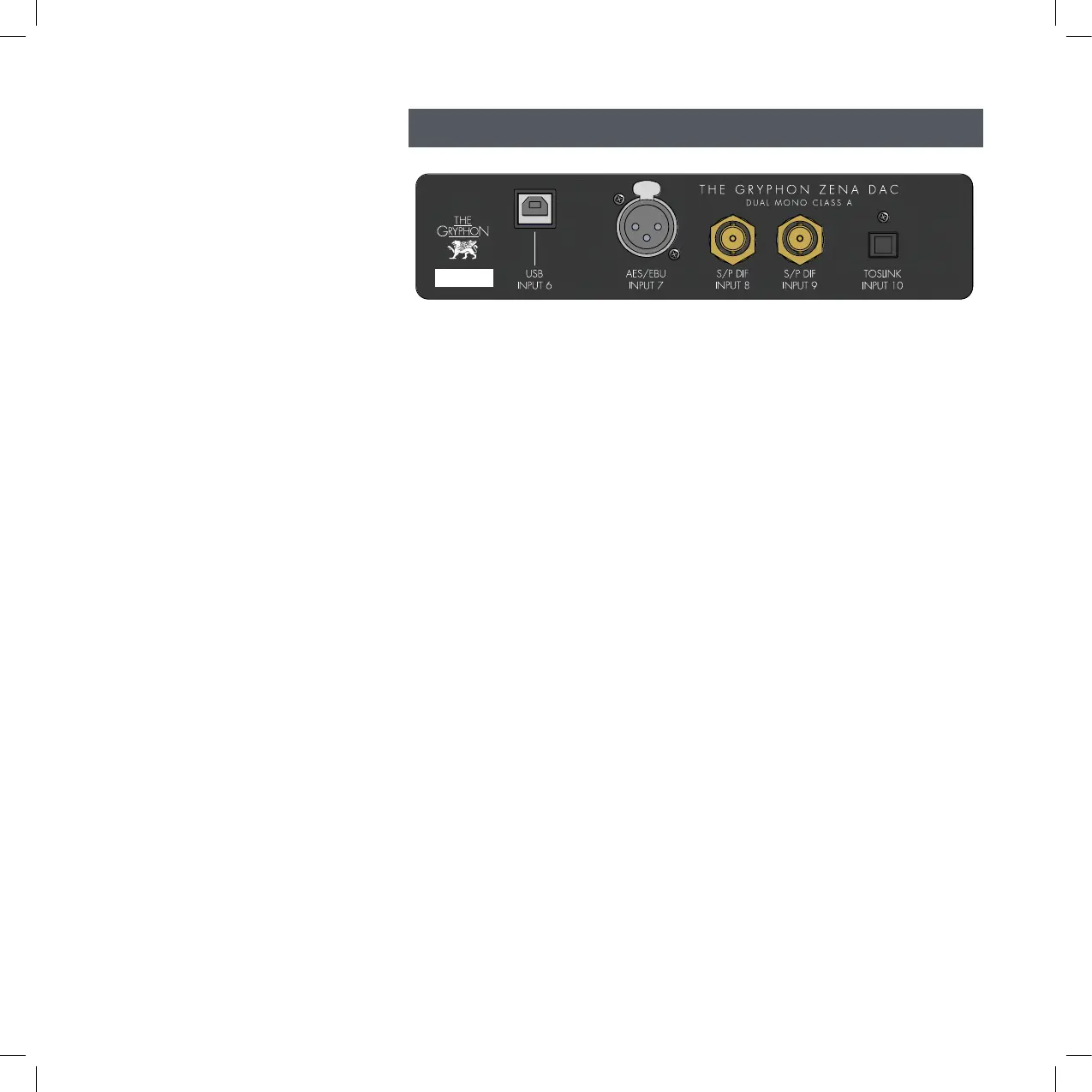

Optional Zena DAC module inputs
INPUT 6: USB
Connect your PC, Mac or streamer via your preferred dedicated USB Audio cable. Please see
separate PC/Mac player information and guide on: www.gryphon-audio.com.
Accepted USB formats and sample rates:
• PCM (Pulse Code Modulated):
Fs: 44.1Khz, 48Khz, 88.2Khz, 96Khz,
176.4Khz, 192Khz, 352.8Khz or 384Khz
• DSD (Direct-Stream Digital):
Mac: DSD64 and DSD128
Windows: DSD64, DSD128, DSD256 and DSD512
NO Drivers needed for Mac OSX 10.6+ and Linux with UAC2 compliant kernel.
Zena DAC Kernel-Streaming/ ASIO drivers for MS OS XP to Win10 32-64bit can be downloaded at:
www.gryphon-audio.com
INPUT 7: AES/EBU
Connect a digital source with balanced 110 Ohm output to this XLR input.
INPUT 8-9: S/PDIF
Connect digital sources with single-ended 75 Ohm output to these inputs.
INPUT 10: TOSLINK
Connect digital sources with optical output to this input.
