4. Installation
PNEG-2381 2000 Series U-Trough Bin Sweep Auger Unload System (72' - 78') 19

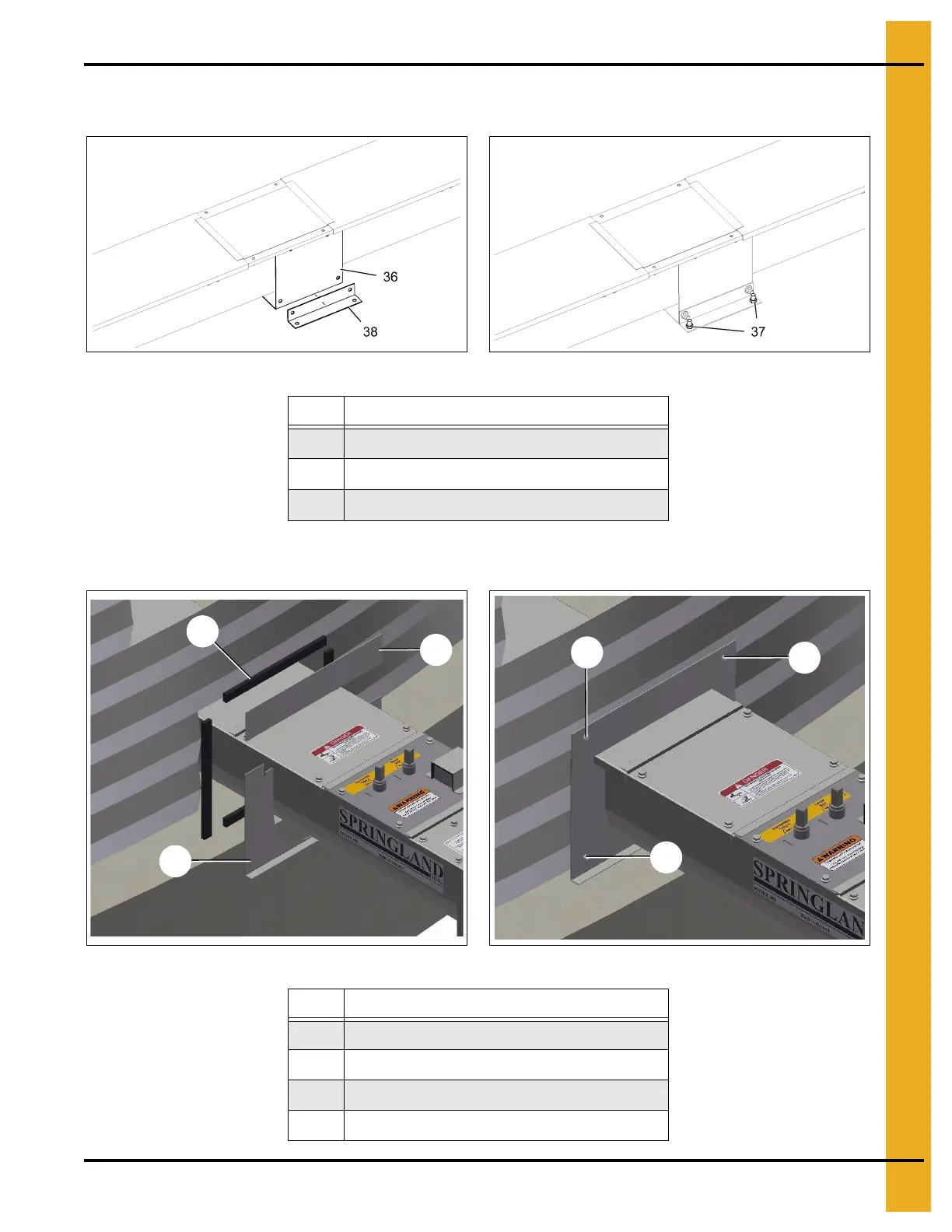

3. Secure UT stands (36) to concrete using UT stand hold-down brackets (38) and provided hardware
(41HK006). (See Figure 4E and Figure 4F.)
Figure 4E Figure 4F
4. Install the bin wall flange and secure with self-tapping screws (21) as shown in Figure 4G and
Figure 4H.
Figure 4G Figure 4H
Ref # Description
36 UT Stand
37 Concrete Anchors
38 UT Stand Hold-Down Bracket
40
39
41
21
21
21
Ref # Description
21 Self-Tapping Screws
39 Bin Plate Upper
40 Foam Sealing Strips
41 Bin Plate Lower
