4. Installation
22 PNEG-2381 2000 Series U-Trough Bin Sweep Auger Unload System (72' - 78')

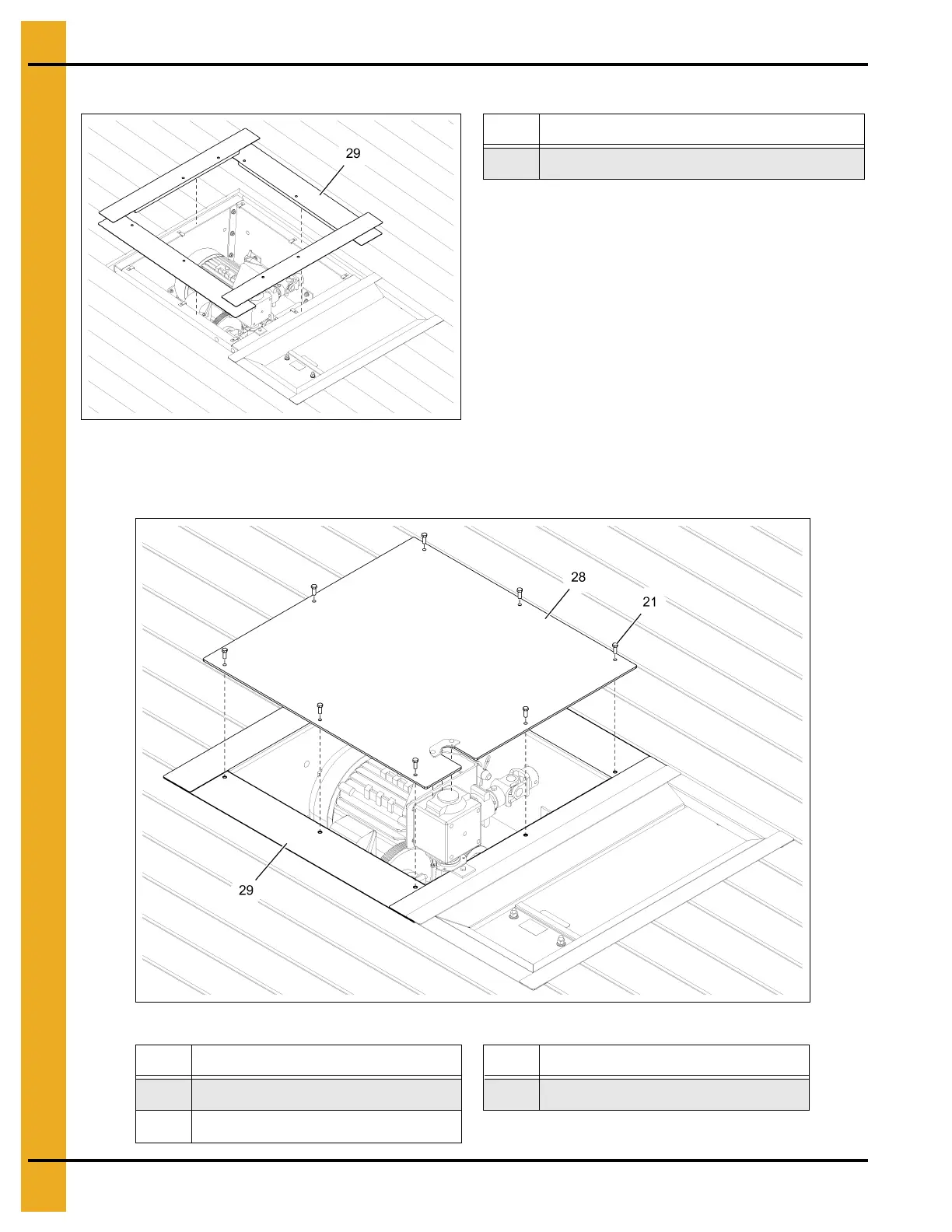

9. Lay the floor flashing (29) around the center drive. (See Figure 4N.)
Figure 4N
10. Re-install the center drive lid (28), secure with previously removed hardware. Secure the center drive
floor flashing (29) with self-tapping screws (21). (See Figure 4O.)
Figure 4O
Ref # Description
29 Floor Flashing
Ref # Description Ref # Description
21 Self-Tapping Screw 29 Floor Flashing
28 Drive Lid
