4. Installation

PNEG-2381 2000 Series U-Trough Bin Sweep Auger Unload System (72' - 78') 21

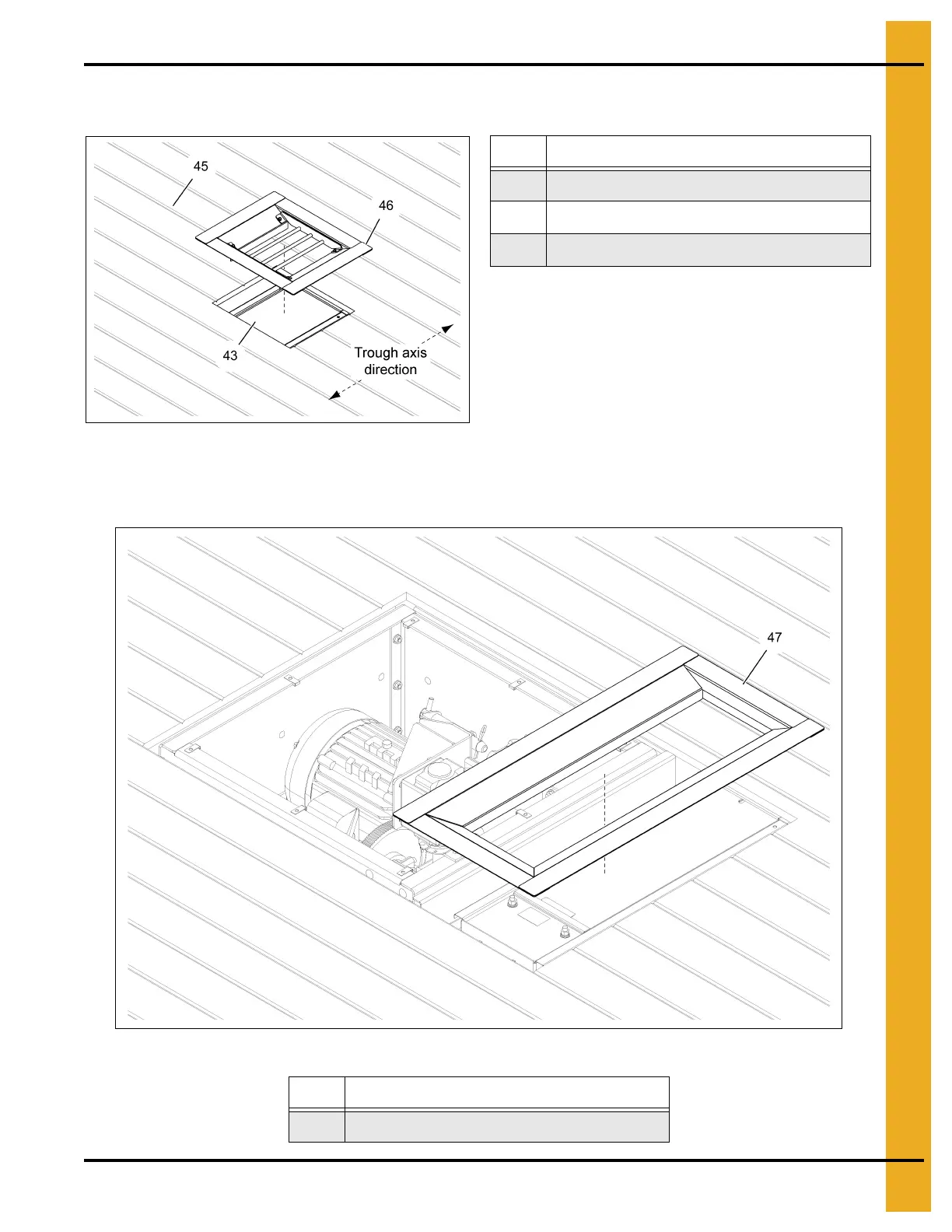

7. Install the intermediate floor flange (46) and secure with self-tapping screws (21) (not provided).

(See Figure 4L.)

Figure 4L

8. Install the center floor flange (47) and secure with self-tapping screws (21) (not provided).

(See Figure 4M.)

Figure 4M

Ref # Description

43 Intermediate Gate

45 Aeration Floor

46 Intermediate Floor Flange

Ref # Description

47 Center Floor Flange
