4. Installation

26 PNEG-2381 2000 Series U-Trough Bin Sweep Auger Unload System (72' - 78')

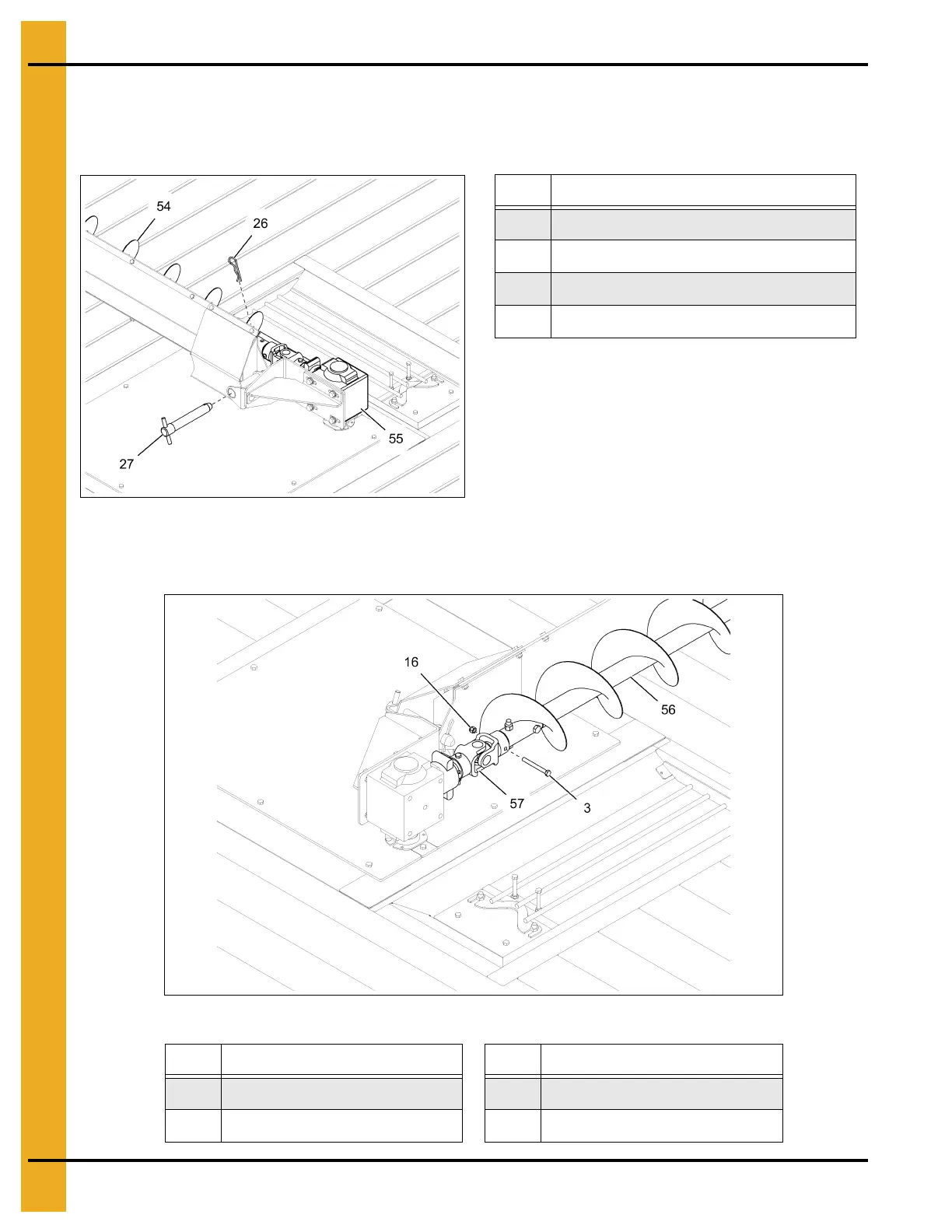

Installing the Sweep onto Center Gearbox

1. Install the sweep (54) onto gearbox sweep arm (55) using sweep pin (27). Secure with 3" hair pin

(26). (See Figure 4V.)

Figure 4V

2. Install the sweep flight (56) onto gearbox universal joint (57) using 3/8" x 3" bolt (3) and 3/8" lock nut

(16).

(See Figure 4W.)

Figure 4W

Ref # Description

26 3" Hair Pin

Sweep Pin

54 Sweep

55 Gearbox Sweep Arm

Ref # Description Ref # Description

3 3/8" x 3" Bolt (1) 56 Sweep Flight

16 3/8" Lock Nut (1)

57 Gearbox Universal Joint
