4. Installation

PNEG-2381 2000 Series U-Trough Bin Sweep Auger Unload System (72' - 78') 27

Sweep Stop

Mount sweep stop (59) such that it will stop the sweep before it reaches the walk-through door.

(See Figure 4X.)

2. Install bolt containing a through hole (58) at height shown. Feed cable through hole (58) and

reconnect to sweep stop. (See Figure 4Y and Figure 4Z.)

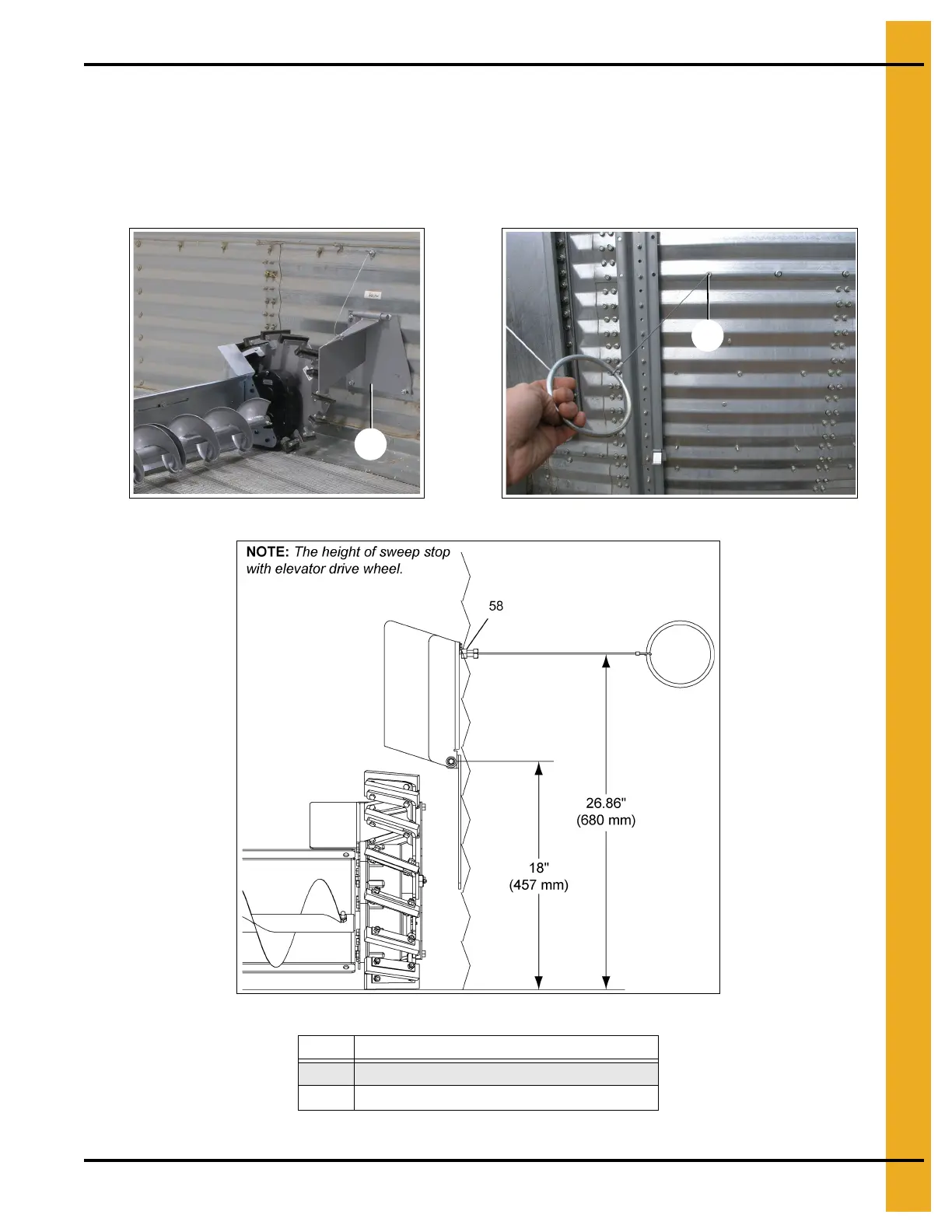

Figure 4X

Figure 4Y

Figure 4Z

NOTE: Only operate sweep stop from the outside of the bin.

Ref # Description

58 Feed Cable Through Hole

59 Sweep Stop
