7
It will lock (click) securely into place.
With the blade cover still on, connect the
hedge trimmer blade to the head.
Fit the head to the main body.

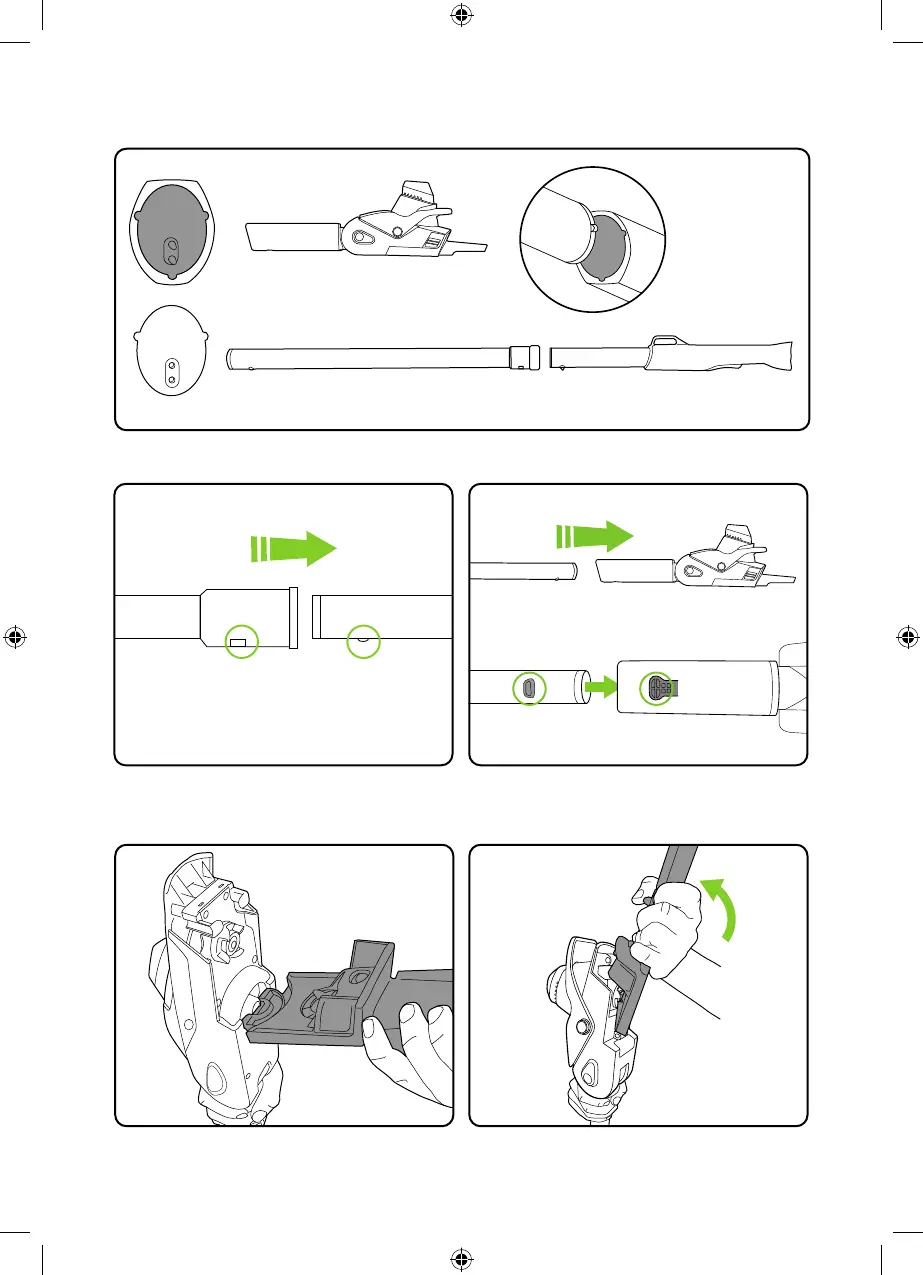

Assembly
When the tube is fully inserted, the button (1)
will pop up into the aperture (2). To remove,
press the button (2) and pull the tube.
When inserting the body into the hedge trimmer head, ensure the body is the right way up.
The shapes need to match or the handle will not fit.
Hedge trimmer head
Hedge trimmer tube and handle
The shapes
need to match
or the handle
will not fit.
1
2
View underneath
1 2
Assemble the handle to the tube. When the
tube is fully inserted, the button (2) will pop up
into the aperture (1).
