Gtech Pro2 - Troubleshooting Blockages

If the suction is low when the bag is empty and a new bag is fitted
you may have a blockage

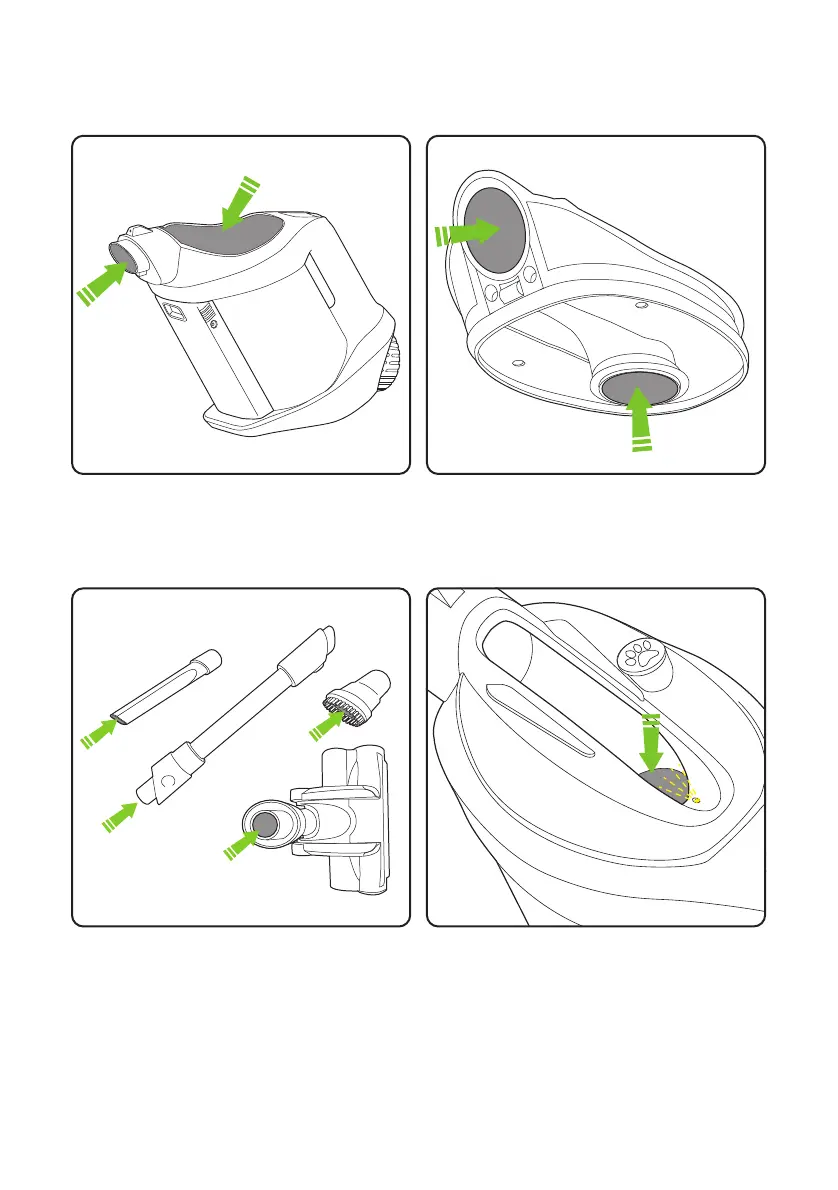

Remove the battery and lid and look through
the nozzle. Remove any blockages.
Remove the bag from the lid.
Check for any blockages in the lid.
Remove any blockages.
The tools can block sometimes, too.
A light above the window on the top of the lid
allows visibility into the bag to indicate when
the bag is full or if there is a blockage.
