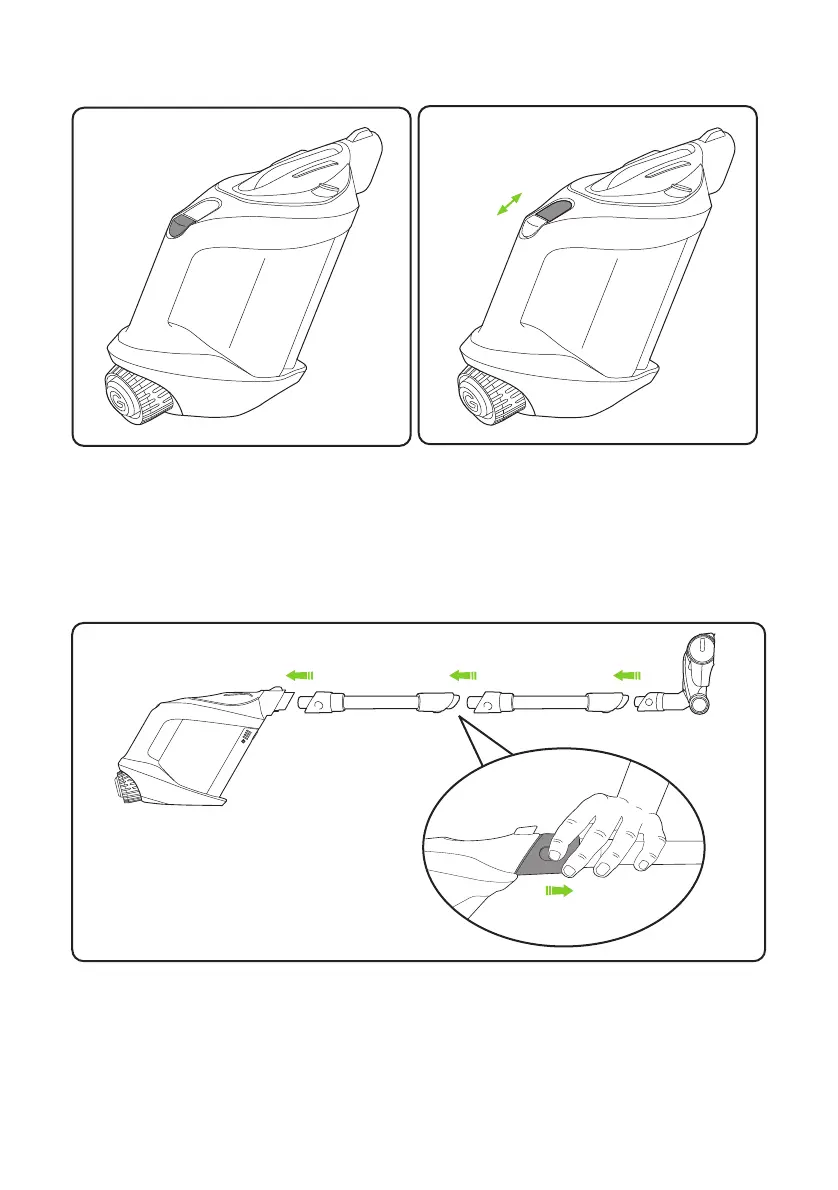

Power floor head assembly
To use the product in floor cleaning mode, join the 2 sections of the extension tube and fit the
power floor head at the end. Ensure all parts are correctly lined up and push them into place.
Ensure the product is switched off before removing or fitting attachments.
To disassemble, place your fingers in the indents of the tube, grip and pull the sections apart.
Disassembly:
Assembly:
6
Operation
Press the large button above the handle to turn
the product on and off.
The product has 2 power settings: Max mode
(higher suction power and shorter runtime) and
Eco mode (lower suction power and longer
runtime). Change modes by sliding the switch
located in front of the On/Off button. The
product will turn on in the mode it was last
used.
Eco
Max
