2.3 Rear Panel Description

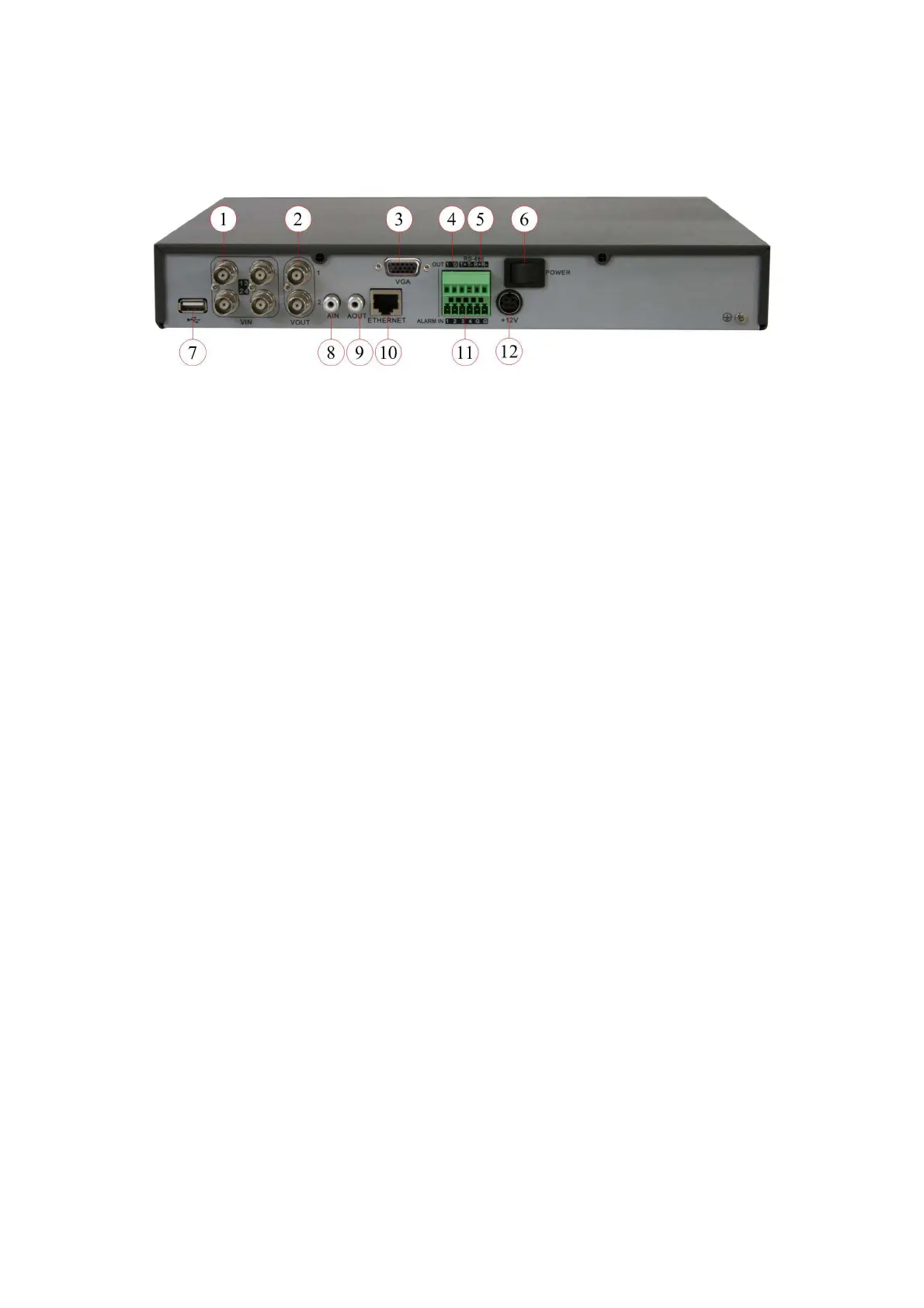

Fig. 2-1 G-DVR4 Rear panel
Note: Please refer to real product.
1 Video in 2 Video out 3 VGA interface
4 Alarm out 5 RS-485 T+ T- R+ R- 6 Power switch
7 USB interface 8 Audio in 9 Audio out
10 UTP interface 11 Alarm in 12 +12V DC power
supply
