Guardian Fall Protection 6305 S. 231st St., Kent, WA 98032 phone: (800) 466-6385 fax: (800) 670-7892 www.guardianfall.com
4
Installation and Use
Components and Specifications
Materials: steel, stainless steel, and aluminum.
Prior to use, plan your system:
Bolt Hole Anchor may be installed in steel substrates ONLY.
Minimum substrate thickness: ¼”.
Minimum installation distance from all edges or corners: 2”.
Compatible installation hole diameter: ¾” (19mm) - 1
3
/8
” (35mm).
1. Ensure all PFAS equipment is selected and deemed compatible with Bolt Hole Anchor by Competent Person.
2. Eliminate or minimize all risk of swing fall.
3. Ensure structure to which Bolt Hole Anchor is to be installed, and on which work is to be performed, is free
of all hazards, including, but not limited to, debris, rot, rust, sharp or abrasive edges and surfaces, and
hazardous materials.
4. Selected installation location must withstand MINIMUM loads specific to application as specified by this
instruction manual.
5. Bolt Hole Anchor is rated for loading in any direction provided it is installed as prescribed.
6. Bolt Hole Anchor is suitable for use in HLL applications.
Installation:
1. Compress Anchor Toggle to bring Spring-Loaded Blade to parallel position.
2. Insert Bolt Hole Anchor through compatible hole in substrate.
3. After Spring-Loaded Blade has completely cleared bolt hole, release Anchor Toggle to return Spring-Loaded
Blade back to its perpendicular position.
4. If Spring-Loaded Blade does not completely return to its original position, DO NOT USE.
5. Ensure Bolt Hole Anchor is fully secured in installation location.
6. Connect complete and compatible PFAS to Bolt Hole Anchor Connection Point.

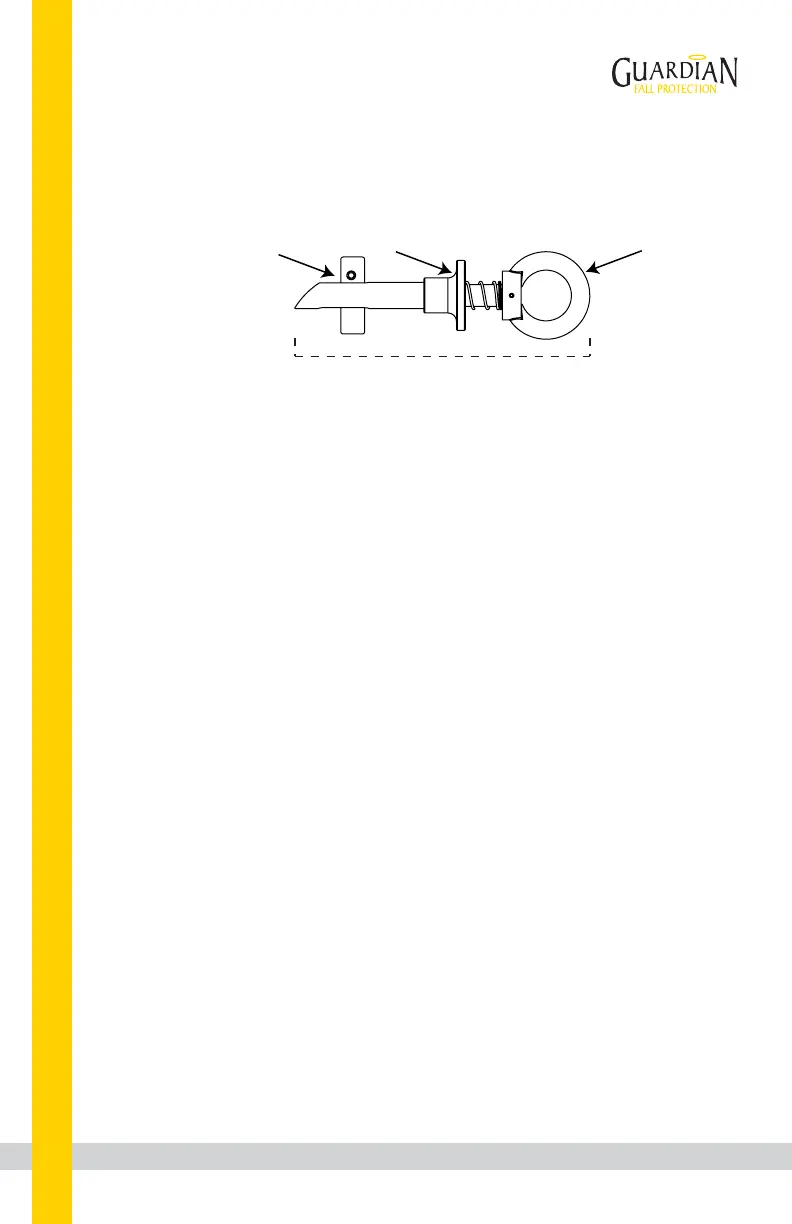

Connection PointAnchor ToggleSpring-Loaded
Blade
8¾”
