operations manual Model 2608A-B/2610A-B/2611A-B
DIAGRAM 6: 2610A-B (5/5 AMPS) USED WITH 2 12V BATTERIES
THE 2610A-B CAN BE USED ON 2 X 12 VOLT INDEPENDENT BATTERIES. T MAY
NOT BE USED FOR A 24 VOLT SYSTEM, THE OUTPUTS MAY NOT BE WIRED IN
SERIES. THE 2610A-B MAY BE USED TO CHARGE ONE SINGLE BATTERY. WHEN
DOING THIS, A 12 GAUGE JUMPER WIRE MUST BE ADDED BETWEEN OUTPUT
POSTS DC + #1 AND DC + #2. SEE DIAGRAM 7.

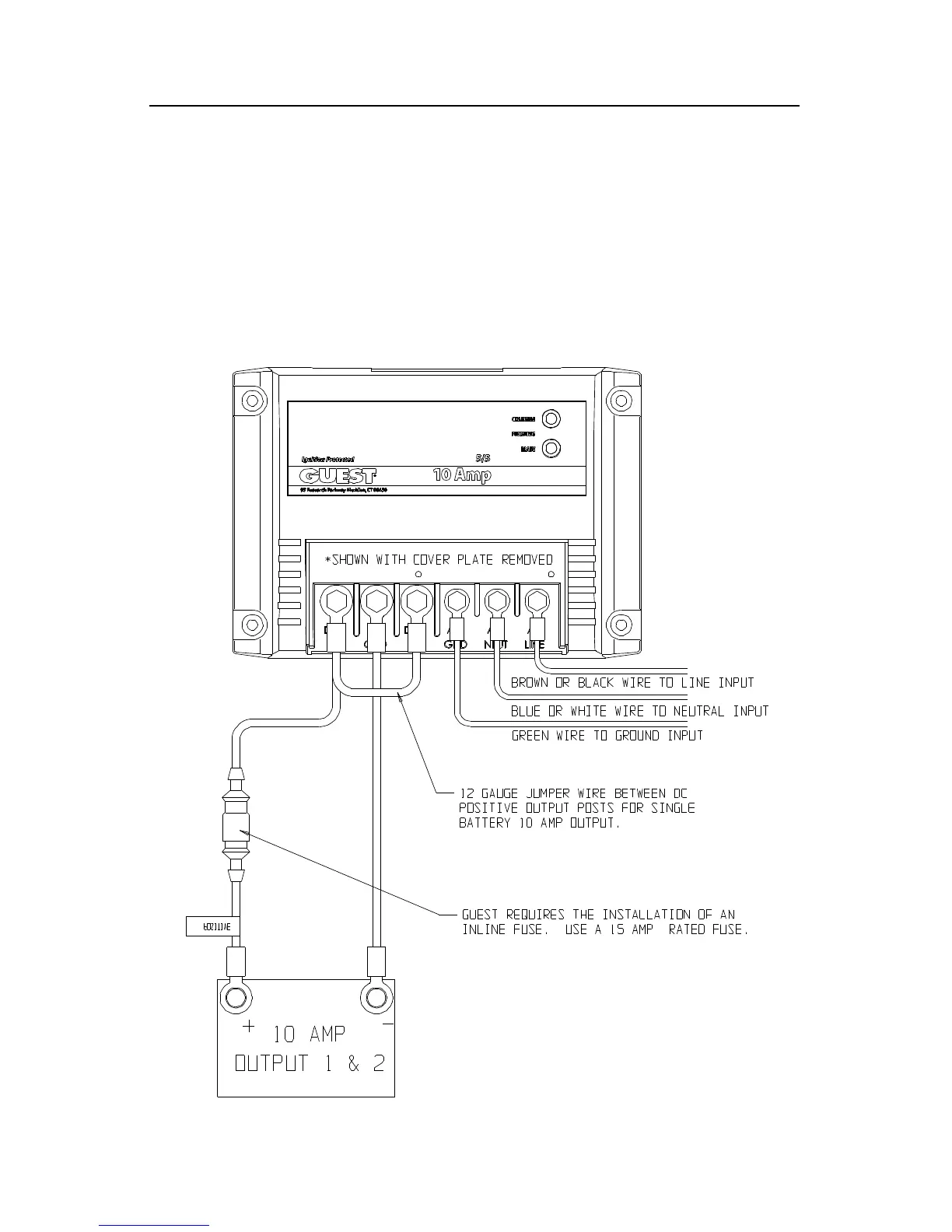

DIAGRAM 7: 2611A-B USED IN A SINGLE BATTERY SYSTEM
