2622A Connections
Model
Output
Volts
Output
Amps
Banks
Output Circuit
Breakers
Input Volts
Input Amps
Max
2622A 12/12 10/10 2 YES
115VAC
50/60Hz
5 Amp
2622A-230 12/12 10/10 2 YES
230VAC
50/60Hz
2.5 Amp

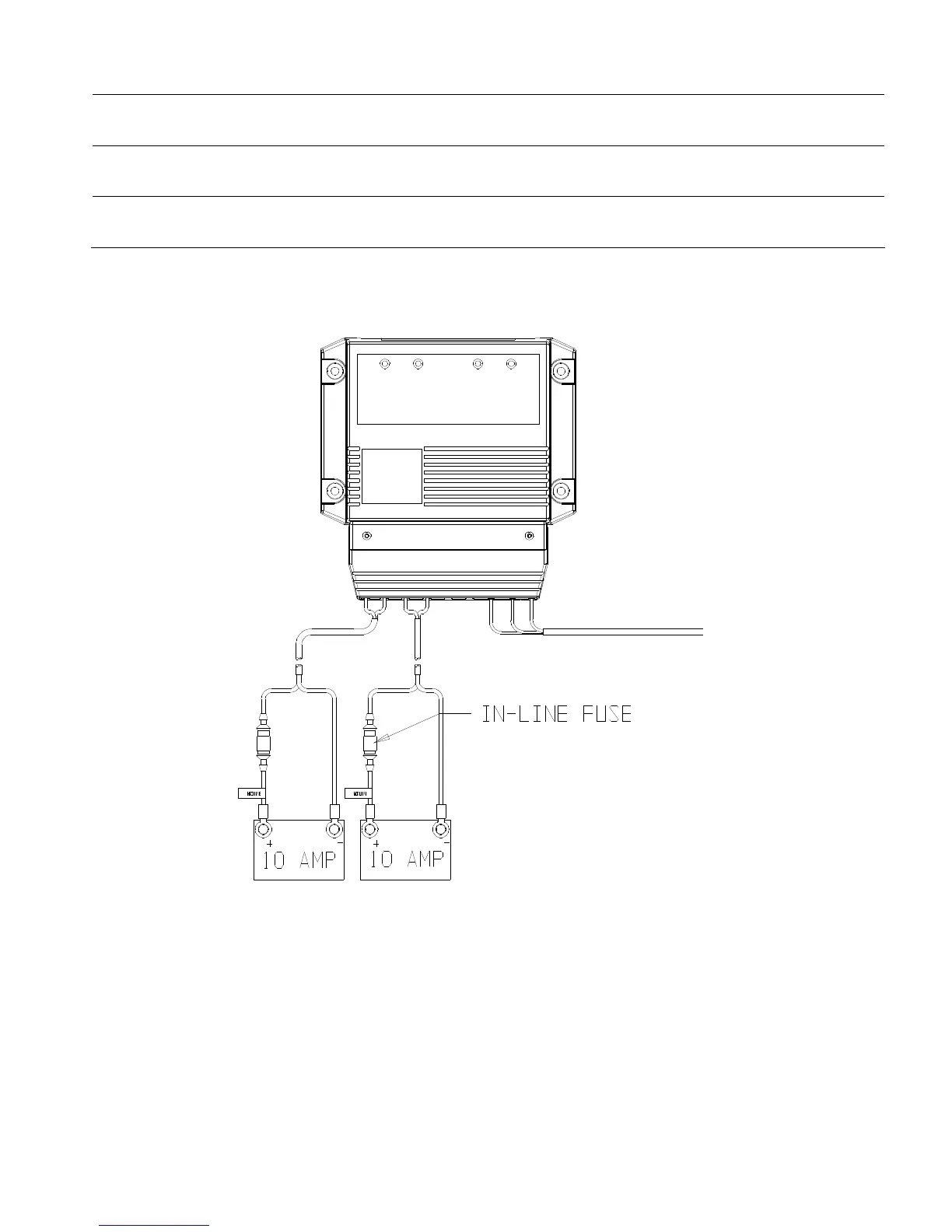

Diagram 4. Standard Connections for a 2622A (10/10 Amps) used with 2
independent 12V Batteries
2622A Connection Warnings: Output 1 and output 2 may be connected in
parallel or in series at any time.
