4
2. INSTALLING THE CHARGER
AC Connection and Grounding Precautions:
DANGER
DO NOT OPERATE THIS CHARGER WITH A TWO BLADED
ADAPTER PLUG OR EXTENSION CORD. DOING SO CAN RESULT
IN SERIOUS PERSONAL INJURY. DO NOT ATTEMPT TO WIRE
THE BATTERY CHARGER USING AN ELECTRICALLY ENERGIZED
LINE CORD. WIRE THE CHARGER ONLY WHILE THE WIRING OR
AC SOURCE IS DE-ENERGIZED. AFTER SECURING THE
BATTERY CONNECTIONS, PLUG THE AC LINE CORD INTO AN
AVAILABLE AC OUTLET THAT IS PROTECTED BY A GROUND
FAULT CIRCUIT INTERRUPTER (GFCI) BREAKER. DO NOT PLUG
INTO AC UNTIL ALL CHARGER CONNECTIONS ARE MADE.
Making AC Connections:

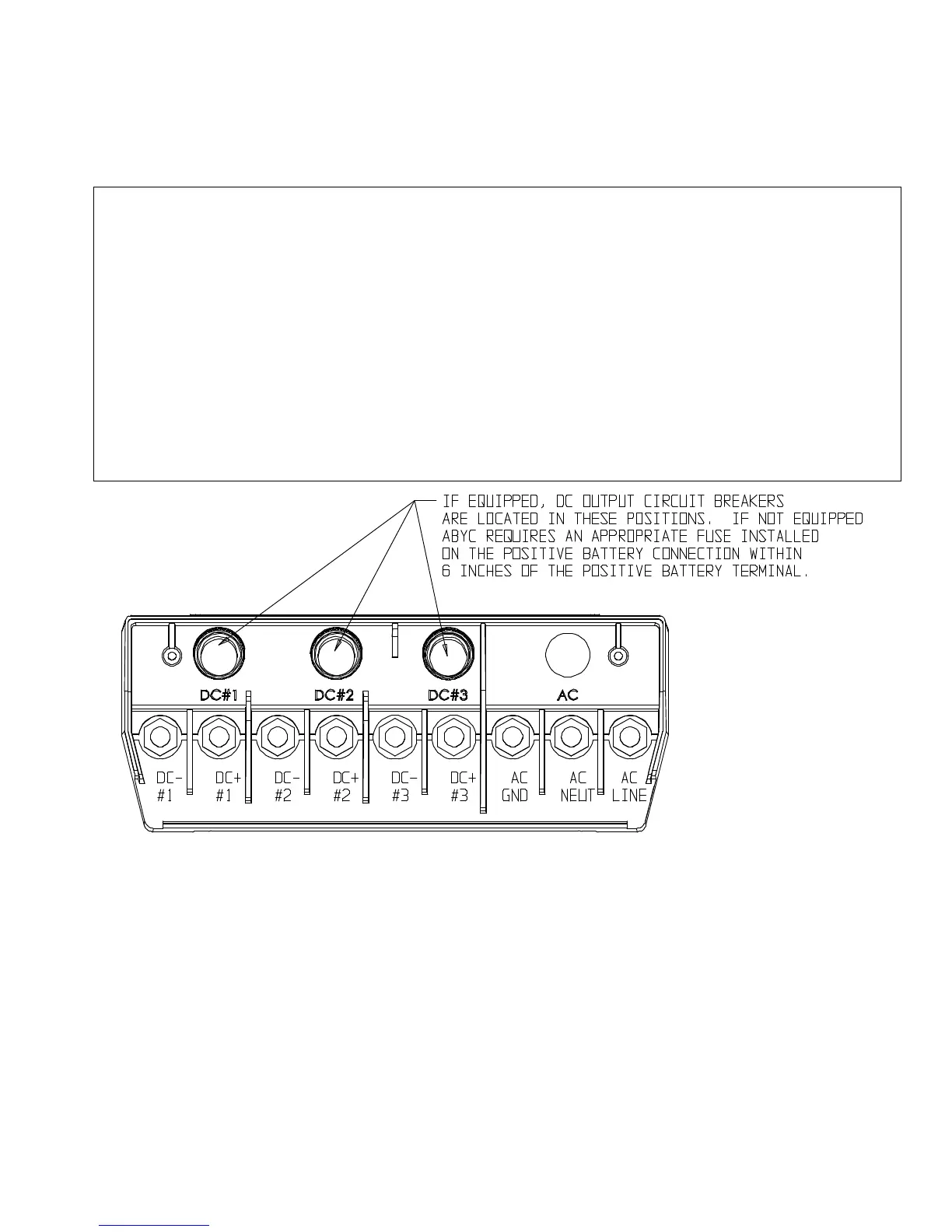

Reference the above drawing:
1. Make AC connections to the charger by wiring AC Hot or Line to the AC LINE
terminal, wire AC Neutral to the AC NEUT terminal, wire Earth Ground to the AC
GND terminal.
2. To interface between the conductor and the stud terminal, use either a fork or
ring terminal appropriately sized for a ¼” stud.
