8
2) may NOT be connected in parallel with output 1 & 3. Output 1 and 3 may be
connected in series for a 24 V system, the engine start output (Output 2) may
NOT be connected in series with output 1 and 3.
2623A Connections

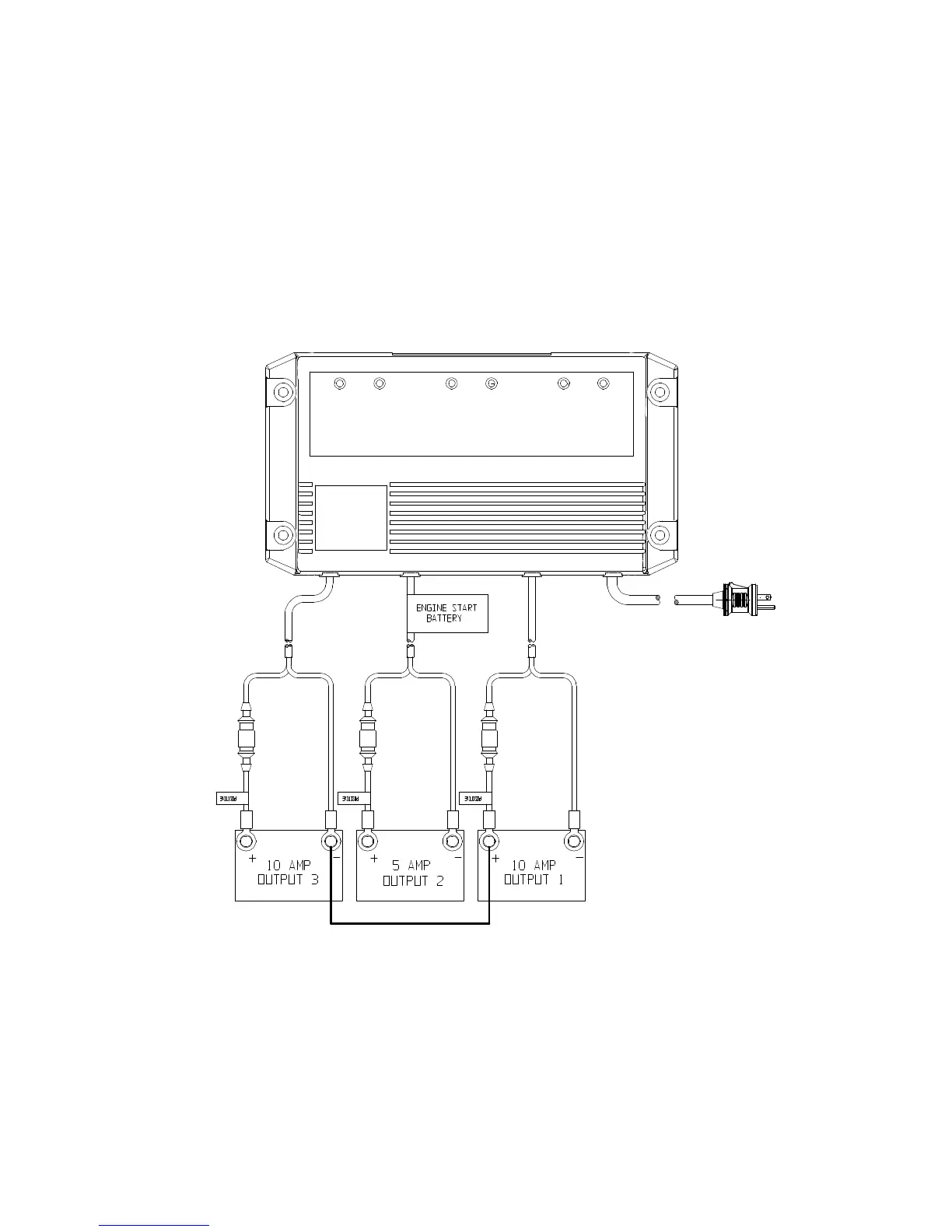

*Diagram 5: 2623A used in a 24 V system

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Guest Trolling Charger 2613A and is the answer not in the manual?

Guest Trolling Charger 2613A Specifications

2613A

Power Specifications IconPower Specifications
input voltage115 VAC
input voltage options12/24/36 Volts
output amperage5/5/5 Amps
Physical Dimensions IconPhysical Dimensions
size (L x W x H)9.6 x 7 x 2.6 inches
DC cable length6’/4’/4’

2620A

Power Specifications IconPower Specifications
input voltage115 VAC
input voltage options12/24 Volts
output amperage10/10 Amps
Physical Dimensions IconPhysical Dimensions
size (L x W x H)9.6 x 7 x 2.6 inches
DC cable length6’/6’

2623A

Power Specifications IconPower Specifications
input voltage115 VAC
input voltage options12/24 Volts
output amperage10/5/10 Amps
Physical Dimensions IconPhysical Dimensions
size (L x W x H)13 x 7 x 2.6 inches
DC cable length6’/6’/6’

2631A

Power Specifications IconPower Specifications
input voltage115 VAC
input voltage options12/24/36 Volts
output amperage10/10/10 Amps
Physical Dimensions IconPhysical Dimensions
size (L x W x H)13 x 7 x 2.6 inches
DC cable length6’/6’/6’
