9
2631A Connections
Model
Output
Volts
Output
Amps
Banks
DC Cable
Size
Size (inches)
L x W x H
Input Volts
Input
Amps Max
2631A 12/24/36 10/10/10 3 6’/6’/6’ 13 x 7 x 2.6
115VAC
50/60Hz
7.5 Amps

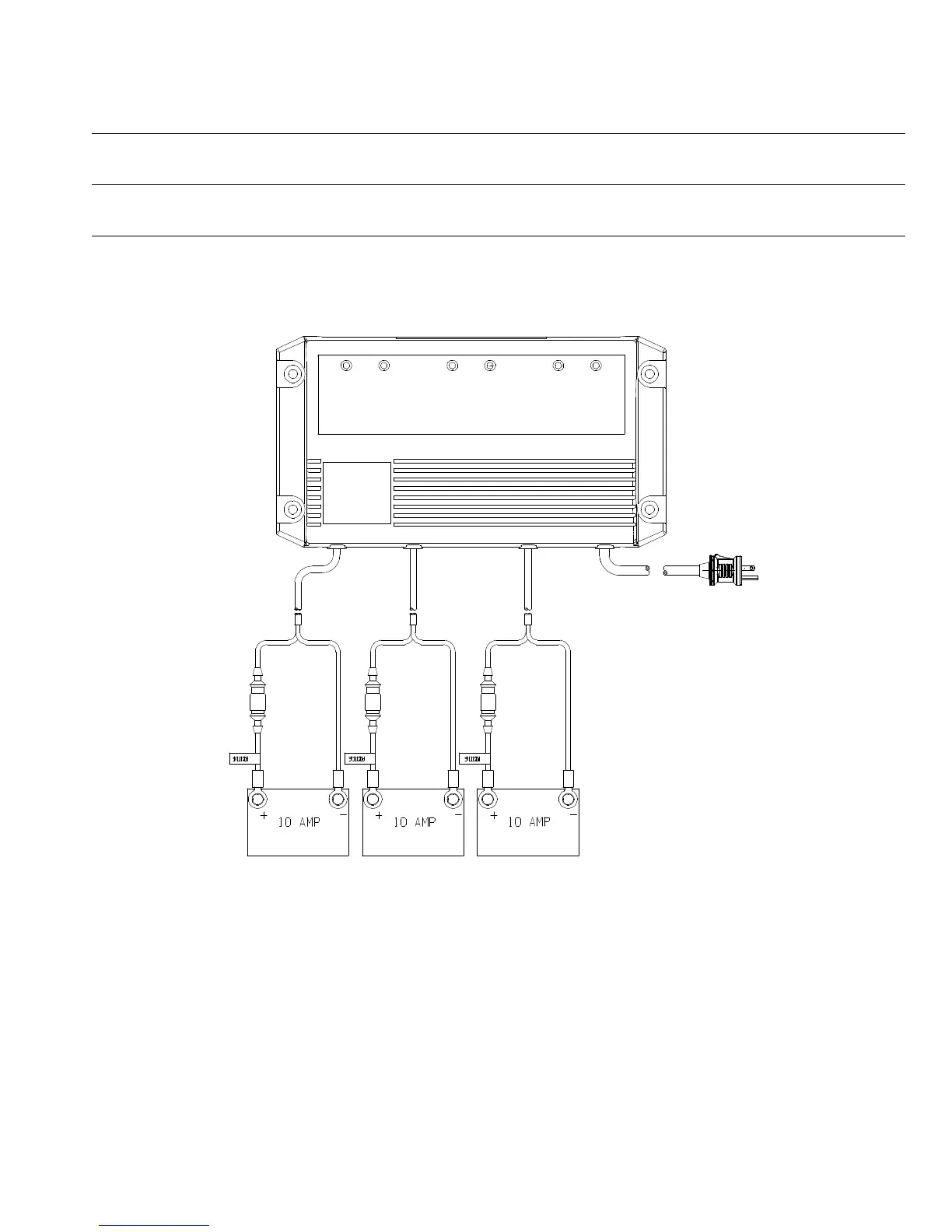

Diagram 6: 2631A (10/10/10 Amps) used with 3 independent 12V Batteries
NOTE: The 2631A can be used on 3 12 volt batteries, a 24V system, or a 36 volt
system. Connections to the individual batteries are the same as shown
above. For a 2 battery system use only 2 banks, leave 3
rd
disconnected.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Guest Trolling Charger 2613A and is the answer not in the manual?

Guest Trolling Charger 2613A Specifications

2613A

Power Specifications IconPower Specifications
input voltage115 VAC
input voltage options12/24/36 Volts
output amperage5/5/5 Amps
Physical Dimensions IconPhysical Dimensions
size (L x W x H)9.6 x 7 x 2.6 inches
DC cable length6’/4’/4’

2620A

Power Specifications IconPower Specifications
input voltage115 VAC
input voltage options12/24 Volts
output amperage10/10 Amps
Physical Dimensions IconPhysical Dimensions
size (L x W x H)9.6 x 7 x 2.6 inches
DC cable length6’/6’

2623A

Power Specifications IconPower Specifications
input voltage115 VAC
input voltage options12/24 Volts
output amperage10/5/10 Amps
Physical Dimensions IconPhysical Dimensions
size (L x W x H)13 x 7 x 2.6 inches
DC cable length6’/6’/6’

2631A

Power Specifications IconPower Specifications
input voltage115 VAC
input voltage options12/24/36 Volts
output amperage10/10/10 Amps
Physical Dimensions IconPhysical Dimensions
size (L x W x H)13 x 7 x 2.6 inches
DC cable length6’/6’/6’
