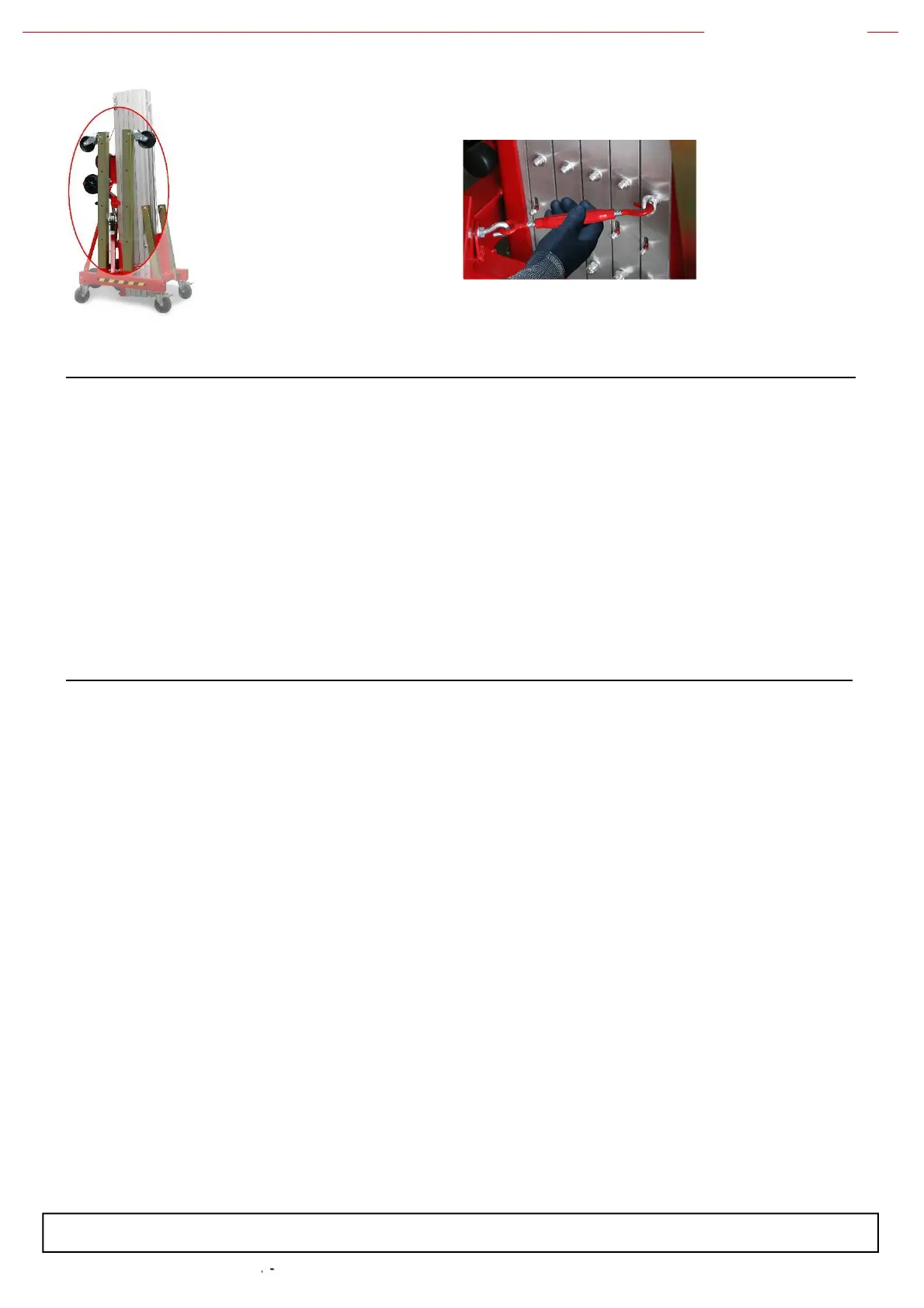

4.- Pull out the stabiliser legs from the front or the back leg sockets and place them vertically on the base in the
storage position.
IMPORTANT: Always attach the mast profile blocking hook to the profiles to prevent sliding
during horizontal transportation.
5.- Select a safe storage location making sure it is: on a firm and level surface, protected from the elements.
TRANSPORT
• The lifter must be completely stowed and the profile blocking hook activated.
• The transport vehicle must be parked on a level surface.
• The vehicle must be stationary to prevent it from moving whilst loading the TORO lifter.
• Make sure the vehicle capacity, the loading space and chains or straps used are sufficient to withstand the
weight of the TORO manual lift.
• The TORO lifter must be secured to the vehicle with straps or slings of adequate load capacity to prevent any
movement.
• Place the TORO lifter against the vehicle. Use the transportation wheels to help load the tower onto the vehicle.
MAINTENANCE
• Carry out a thorough inspection of the lifter to ensure there are no missing components and that there are no
broken or damaged parts.
• Check that the wheels turn smoothly and are not damaged or dented.
• Inspect the legs, forks, and strengthening braces to ensure they are in good condition.
• Examine the side stabiliser legs making sure they fold and unfold smoothly and that the blocking system works
correctly.
• Make sure that the level and the levelling jacks are not damaged and function correctly. Grease the levelling
jacks periodically.
• Check that the profile blocking hook functions perfectly.
• Test the safety brake system (IPB) by manually raising each mast profile about 15 cm and release. Brakes
should engage before the mast section reaches bottom stop. Use the winch to deactivate safety brakes and
unblock the mast profiles.
• Check that the winch cable isn’t frayed, bent or worn.
• Make sure the winch functions correctly and doesn’t show any signs of damage or deformations.
• Raise mast profiles to verify that they slide smoothly.
• Make sure wire sideways and the winch cable are free of dust and oxidation and grease them periodically,
depending on the frequency the lifter is used.
VERY IMPORTANT: Do not grease, lubricate or tamper with the winch. Consult with a GUIL
®
technician.
