GUIL - TORO lifters
25
www.guil-lifters.com - GUIL
-

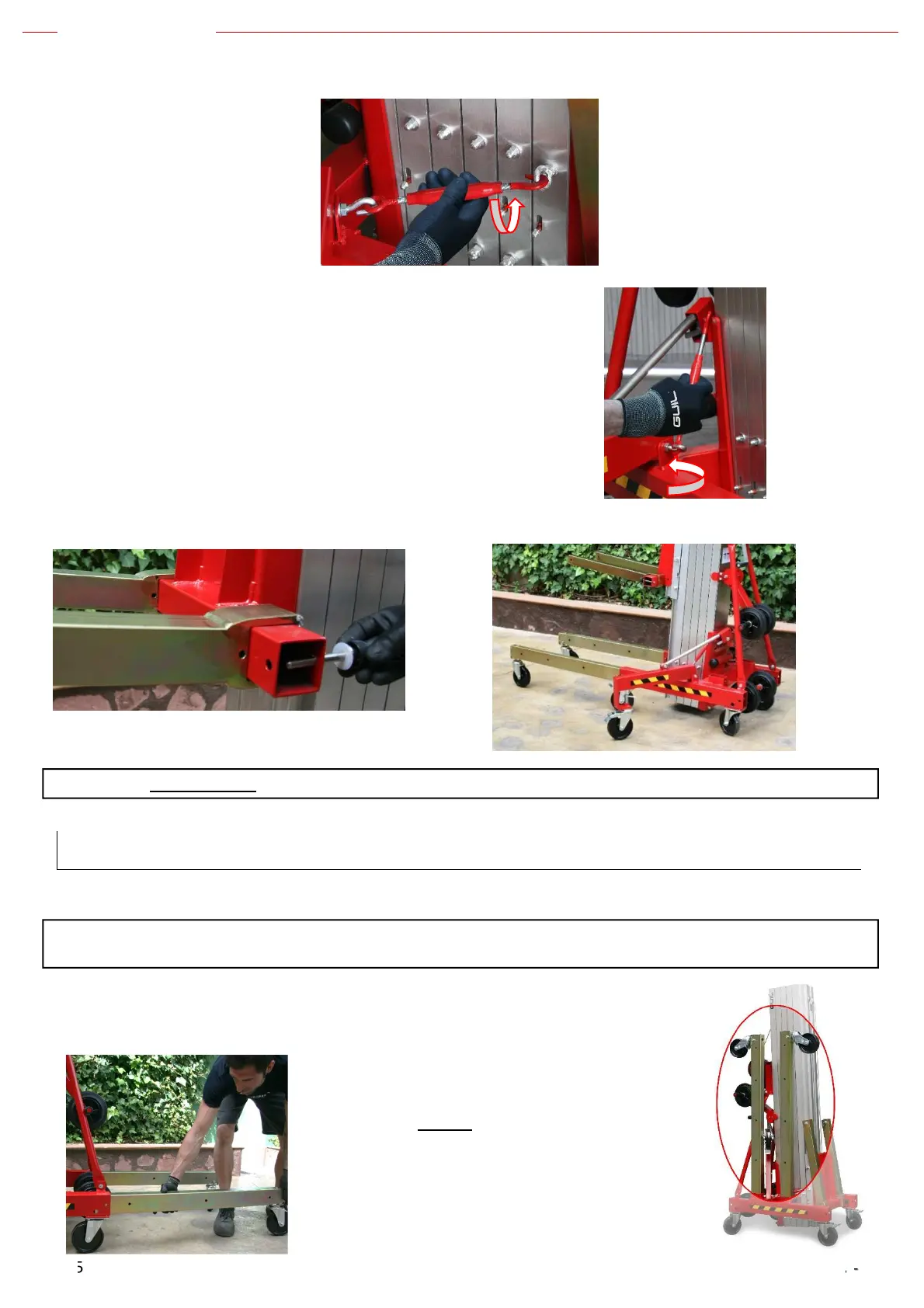

6.- Remove the profile blocking hook by twisting the central part to lengthen it and unhook it from the eye nut.
7.- Hook it on the back part of the mast sections so that it isn’t left loose.
8.- Lastly, put the forks into the horizontal position and secure using the magnetic locking bolts.
9.- Place the load on the forks.
IMPORTANT: When the TORO lifter is raised over 6.5 m the minimum load is 50 kg.
10.- With the load on the lifter ensure it is levelled. If not, adjust the levelling jacks on the legs until it is.
B.- INSTALLATION WITH BACK STABILISER LEGS
This set-up option is applied in case the front legs of the TORO lifter are an obstacle in the work area.
CAUTION! This type of installation requires the use of counterweights. These must always come to a sum of 100
kg.
1.- Position the TORO lifter at the desired work site.
2.- Pull the stabiliser legs out of the base and insert them into the back sockets in the most
extended position.
The legs must always be set in the most extended
position.
