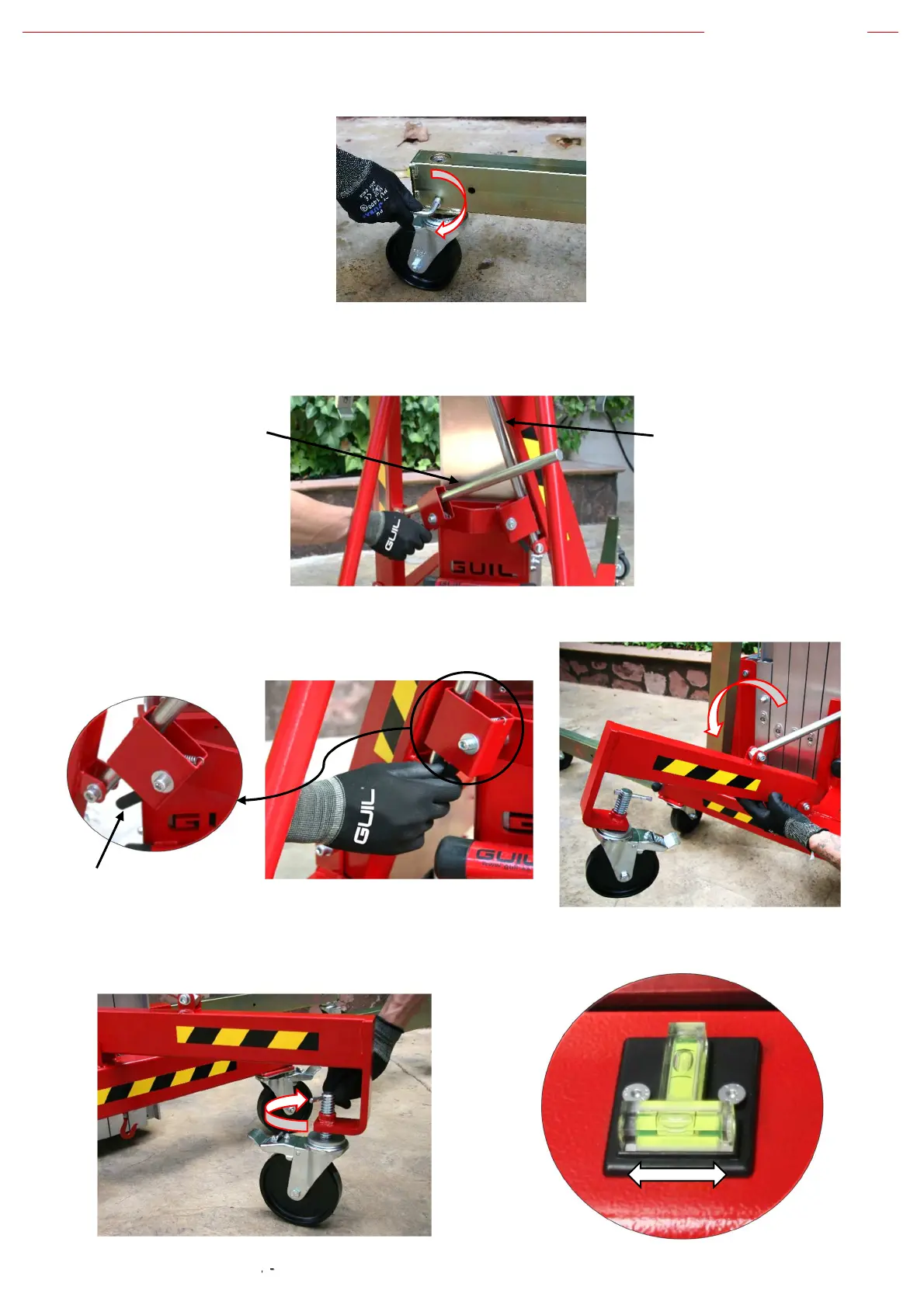

4.4.- Block the levelling jack by tightening the M10 bolt found on the side of the leg, but not too tight so
as not to cause any damage to the thread on the screw stem.
5.- Unfold the side stabiliser legs (outriggers):
5.1.- Unfold the leg with the sliding bar that is furthest away from the lifter first.
5.2.- Press the blocking lever that protrudes from the bottom of the adjusting box and at the same time
unfold the outriggers down to the ground.
5.3 Adjust the levelling jacks until the legs are firm and free of wobbling, levelling the lifter from the
sideways axis with the help of the spirit level.
SLIDING BAR CLOSEST TO
THE LIFTER
SLIDING BAR FURTHEST
AWAY
ADJUSTING BOX
BLOCKING LEVER
