Guldmann GH2 F - Example of a Serial Number Label; Audio Signals; Indicator Lamps

10

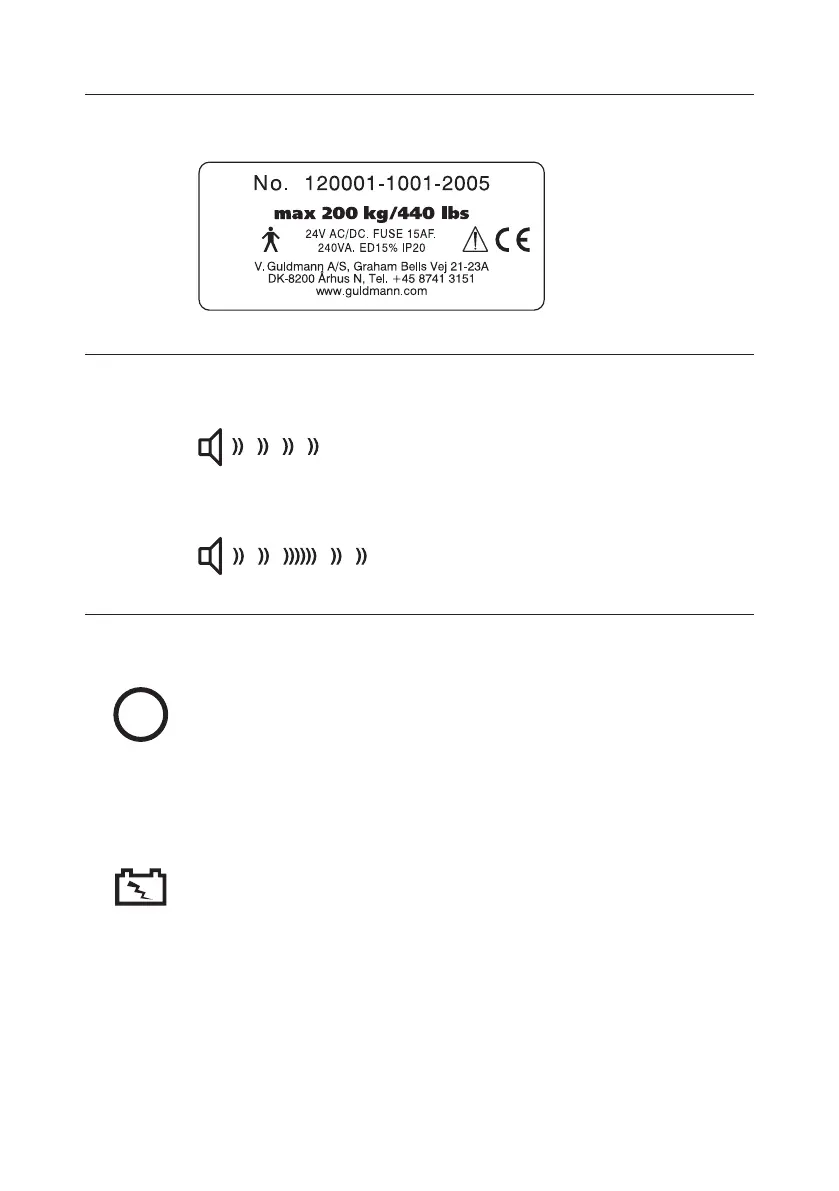

502 Example of a serial number label
– see variants of GH2 F ceiling hoists under point 14.00
503 Audio signals
Short, consecutive audio signals
GH2 F’s installation function has been activated.
Long, continuous audio signal
The installation/deinstallation sequence has been
interrupted or completed.
504 Indicator lamps
The colours and functions for GH2 F are as described below.
Green
The green circle of lamps on the bottom of the hoist will blink if the batteries
are running low – the GH2 F will then have only a certain number of lifts/
installations/deinstallations left, and the batteries must be recharged.
On: The hoist is active
Blinking: The batteries are running low and must be recharged
Off: The hoist is switched off
Yellow
When GH2 F is being recharged, the yellow charging indicator on its infor-
mation face is illuminated. The indicator lamp ashes while the batteries are
being recharged.
On: The lamp will light up briey when connected to the charger,
irrespective of the state of the battery. This indicates that there
is a correct connection between GH2 F and the charger.
On/blinking: The hoist is being recharged
Off: The hoist has been fully charged
The lamp will also be off when the charger is not connected.
