Guldmann GH2 F - Mounting the Lifting Hanger before Use

6
201 Mounting the lifting hanger before use
Lifting hangers made by other manufacturers
Guldmann shall not be liable for faults or accidents that occur as a result of
using a lifting hanger made by other manufacturers.
If you are in doubt about the choice or use of lifting hanger, please
contact your supplier.
Strap with snap hook
Use lifting hanger type 21X87 or the X lifting hanger type
21387 when using GH2 F with a snap hook.
The snap hook is sewn onto the strap and cannot be
removed.
Please note
Bath chairs, bath stretchers, and horizontal stretchers
must be attached to the snap hook.
Strap attachment
Use lifting hanger type 21X70 or Horizontal Lifter Type BS when using GH2 F
with strap attachment.

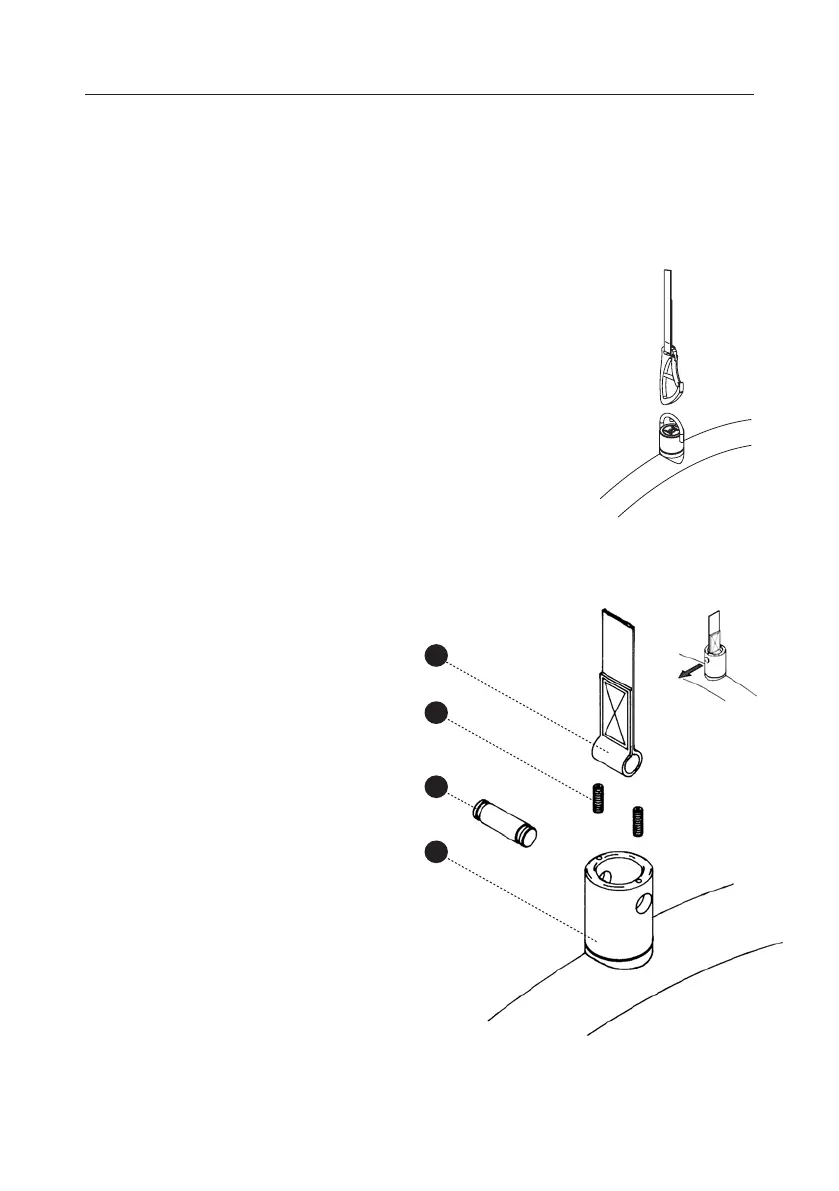

Mount the lifting hanger as
illustrated.
• Loosen the pointed screws
(2).
• Release the axle journal (3).
• Mount the lifting strap (1) on
the lifting hanger (4).
• Introduce the axle journal
again (3).
• Use a 1.5 mm Allen key to
tighten the pointed screws.
1
2
3
4
