Electrical specications
Power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 V DC
Output charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 VA
Voltage supply, charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100-240 V
Power consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8.5 A at full load
Max. power absorption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240 VA
Charging time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3 hours (max. 8 hours)
Lead acid batteries, sealed, maintenance-free . . . . . . . . . . . . . . . . . . 2 x 12 V
Rechargeable batteries . . . . . . . . . . . . . . . . . . . . . . . . . order number 933015
Safety functions
Safety cut off for strap . . . . . . . . . . . . . . . . . . . . . . approx. 45° longitudinally
approx. 10° transversely
Battery protection at too low voltage . . . . . . . . . . . . Switches off when voltage
goes below 17 V
Periodic load, lifting motor (operation/pause) . . . Dynamic supervision (15/85)

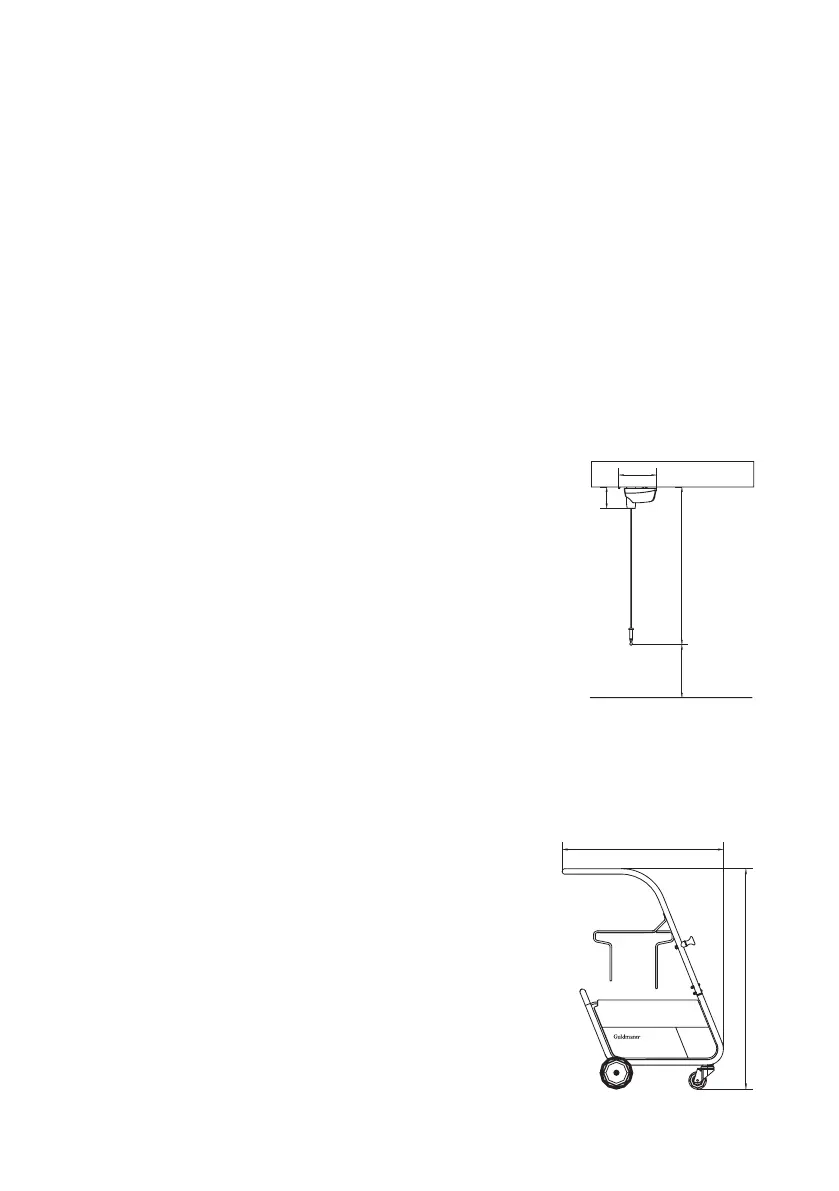

Travelling trolley for GH2 F/GH2 F HD
A 98 mm / 3.5”
B 166 mm / 6.5”
C*, max. 2800 mm / 110”
D, min. 650 mm / 25.5”
D, max. 750 mm / 29.5”
Depth of travelling trolley 84 mm / 3”
*Cord length C adapted to height of rail
during installation
Max. load . . . . . . . . . . 250 kg / 550 lbs.
Weight:
Travelling trolley (with the
exclusion of lifting modules
GH2 F/GH2 F HD) . . . . 1.2 kg / 2.5 lbs.
Transport trolley for GH2 F/GH2 F HD
A 1005 mm / 39.5”
B 735 mm / 29”
Depth of transport trolley 485 mm / 19”
Capacity, bag . . . . . . . . . . . . . 2-3 slings
Weight:
Trolley including bag . .10.4 kg / 23 lbs.
B
A
D
A
B
C
Floor
