Guru Home Systems GU-HB-201-R1 - Testing & approvals; Terminals & Cable Specifications; Mains Compartment

7
Mains Compartment
All cables entering this compartment must have an external
diameter between 6 and 8mm for compatibility with the strain
relief system. All cables must be less than 3m in length for EMC
compliance.
• EN 301489-17 v2.2.1
• EN 61326-1:2006
• EN 55022:2010
• EN 55024:2010
• EN 61000-3-2
• EN 61000-3-3
• EN 300 328 V.1.7.1
• EN 60730-1:2011
• IP 43 to BS EN 60529:1992
Testing & approvals
Terminals & Cable
Specifications
L1 L2 N1 N2 R1
L N E
R2 R3
COMPARTMENT A
COMPARTMENT B
PULSE
PULSE
MBUS – Aln
A0V
A5V
MBUS +

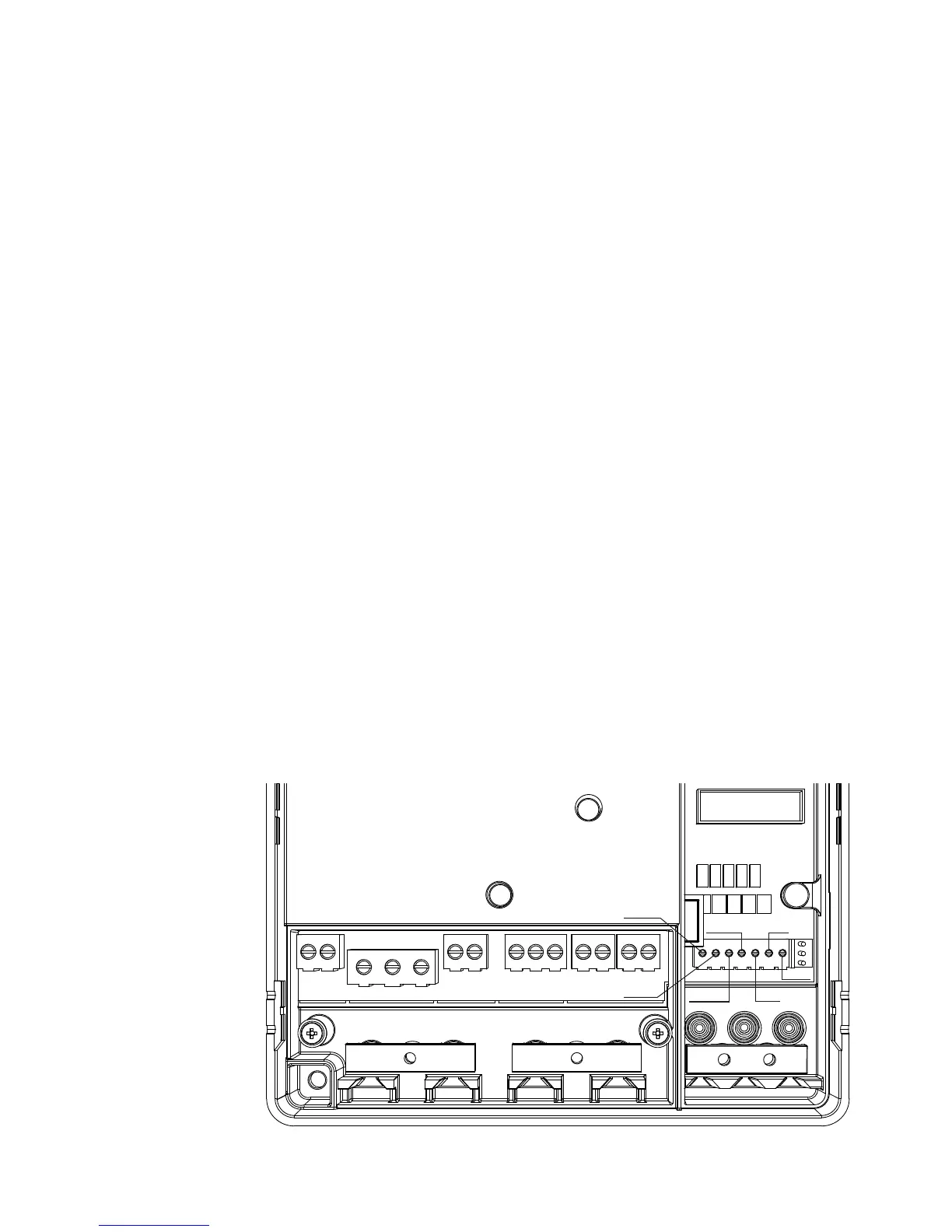

Figure 3. Terminals
