Display and the menu

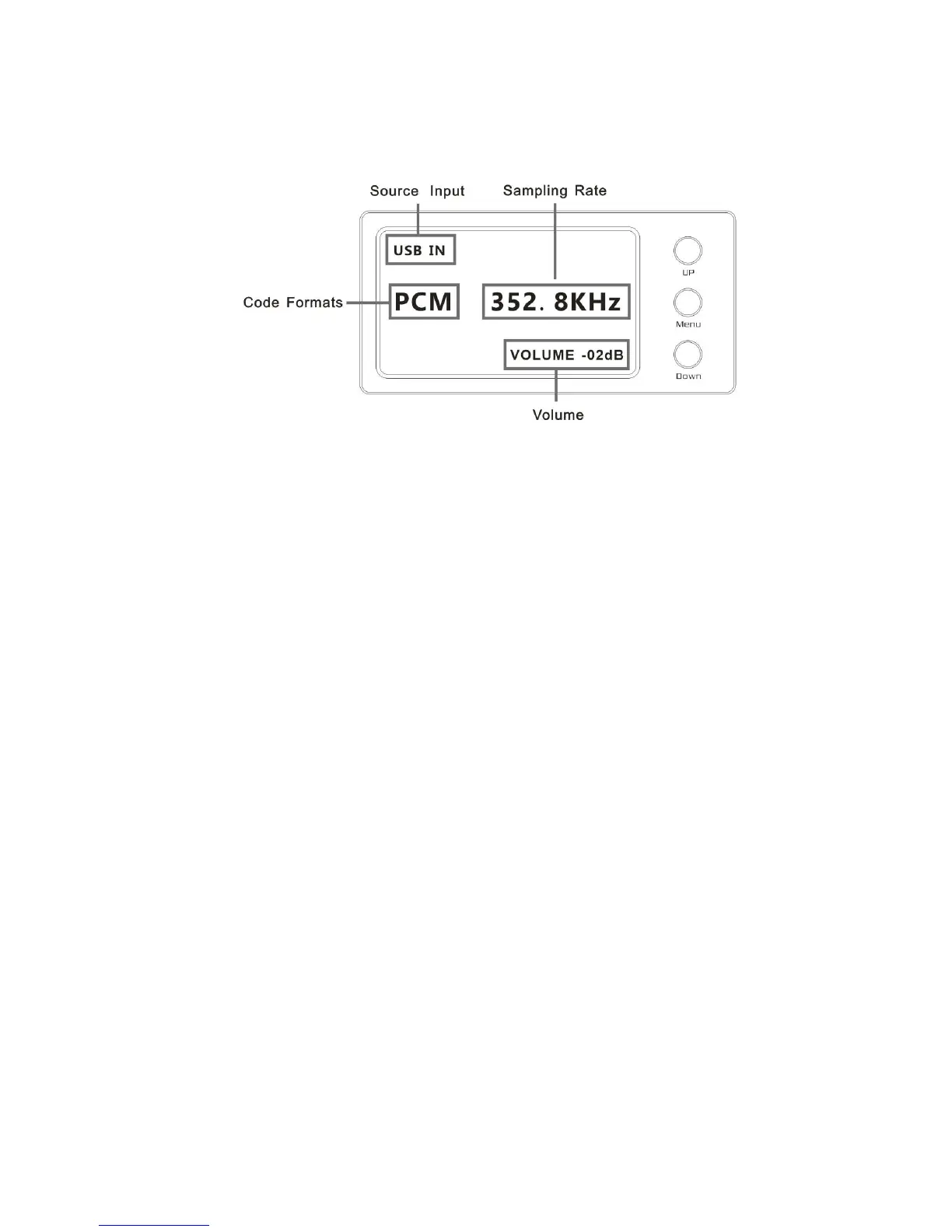

1. Used large OLED monitor.Display the real-time status and functions
The following figure shows an example
2. Input channel select:
X22 has 5 channels to input. In main menu press the button to select in
COAX——AES——USB——IIS——OPT.
3. Volume
In main menu turn the knob to adjust the volume. Clockwise to increase counter
clockwise to decrease from -90dB to 0dB a total of 90 levels adjustment.
4. Enter the menu：
When in the main interface. Hold down the button “menu” for 2s to enter the menu.
And press up and down to switch the option. Adjust the functions by rotating.
Press the button “menu” to return.
The menu switched by the arrow circularly
as followed:
—PCM Digital Filter adjust
—DSD Digital Filter adjust
—Digital PLL bandwidth adjustment
—Master clock mode
—Phase control
—Monitor Brightness adjust
