GDS-200 & GDS-300 Series User Manual
112
Display Menu
The Display Menu defines how the waveforms and parameters
appear on the display.

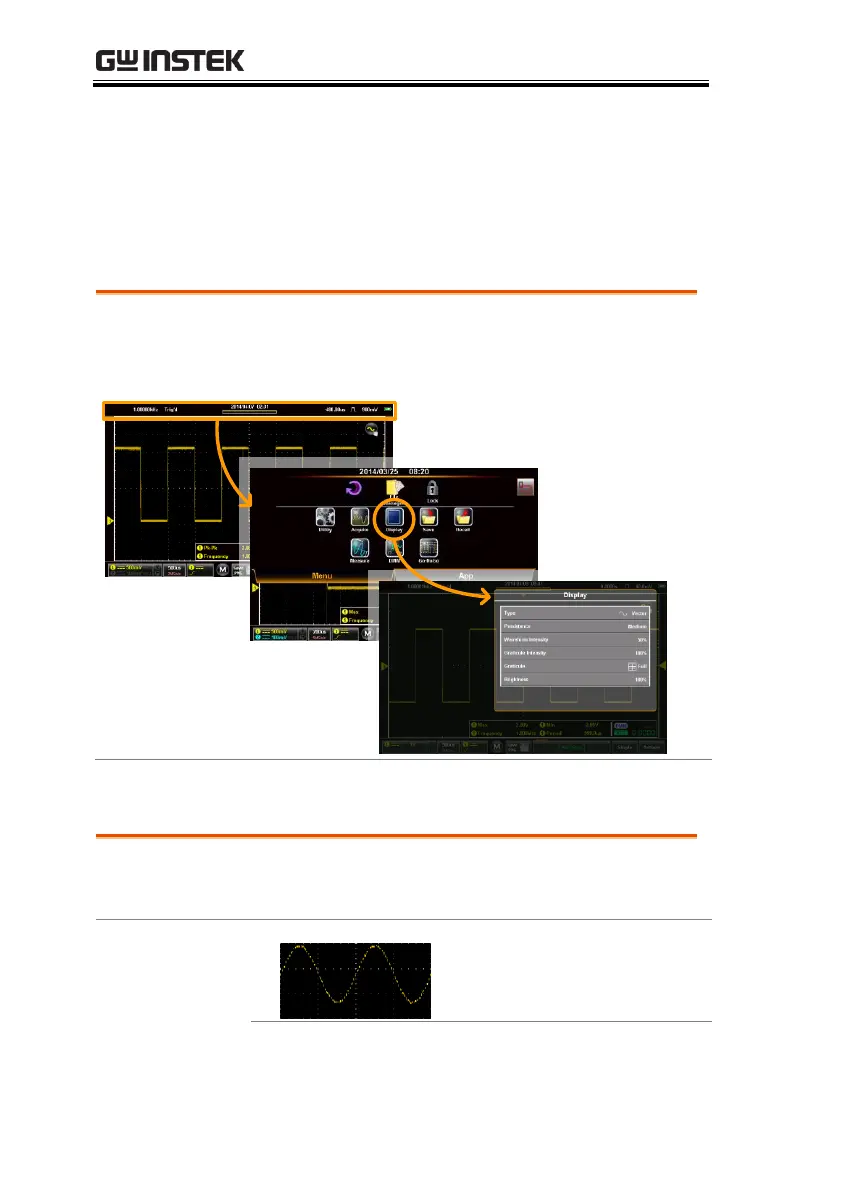

Accessing the Display Menu
From the main screen, press the title bar to bring up the Drop Down
menu. Press the Display icon to show the Display menu
Menu tray
App tray
Display
Display the Waveform as Dots or Vectors
Background
When the waveform is displayed on screen, it
can be displayed as dots or vectors.
Modes
Dots: Only sampled dots
are displayed.
