GDS-200 & GDS-300 Series User Manual
152
Temperature Measurement
Back Ground
The GDS-300 can measure temperature using a
thermocouple. To measure temperature, the
DMM accepts a thermocouple input and
calculates the temperature from the voltage
fluctuation. The thermocouple type is taken
into consideration. Temperature measurement
is only supported on the GDS-300.
Note
Please see the specifications on page 184 for the
thermocouple specifications.

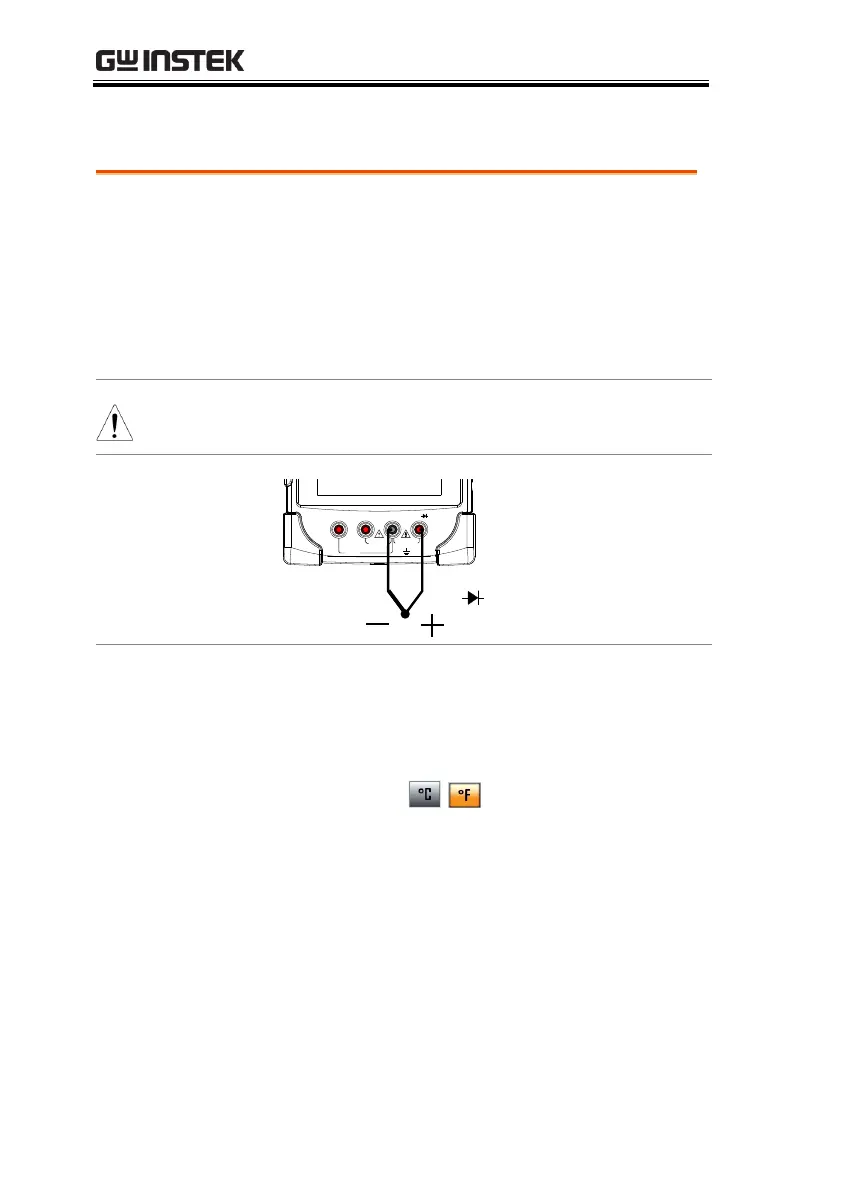

Connection
10A MAX
FUSED
V
W
COMA mA
GDS-220
Digital Storage Oscilloscope
200 MHz 1GSa/s
COM V
W
CAT II 600V
CAT III 300VFUSED
600mA MAX
Steps
1. From the multimeter settings choose the
temperature measurement.
 Pressing the Temperature button will
toggle between ºC and ºF.
Temperature =
/
2. Next, select the thermocouple type.
Thermocouple = B E, J, K, N, R, S, T
