GW Instek GDS-200 Series User Manual

OPERATION
91
Steps
1. Make sure the automatic measurements are
visible at the bottom of the display.
2. From the Menu Bar: Long-press anywhere
within the area that the automatic
measurements are displayed to bring up the
Measurement menu.
OR
From the Drop Down Menu: Press the top of
the screen to access the drop down menu. From
the Menu tray, select the Measure icon.

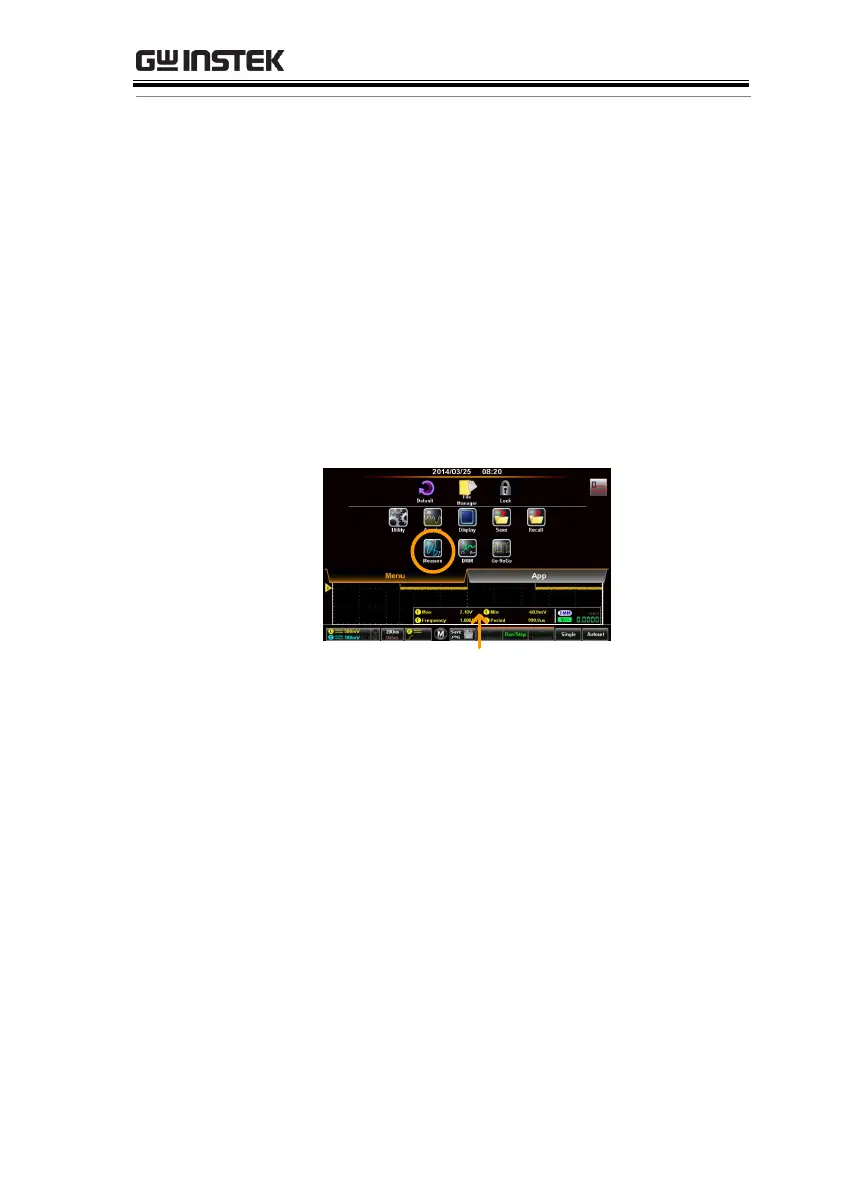

Long press
Measure
icon
3. Select a measurement slot (from 1 of 4
quadrants).
4. Select a measurement category (Amplitude,
Time, Delay).
