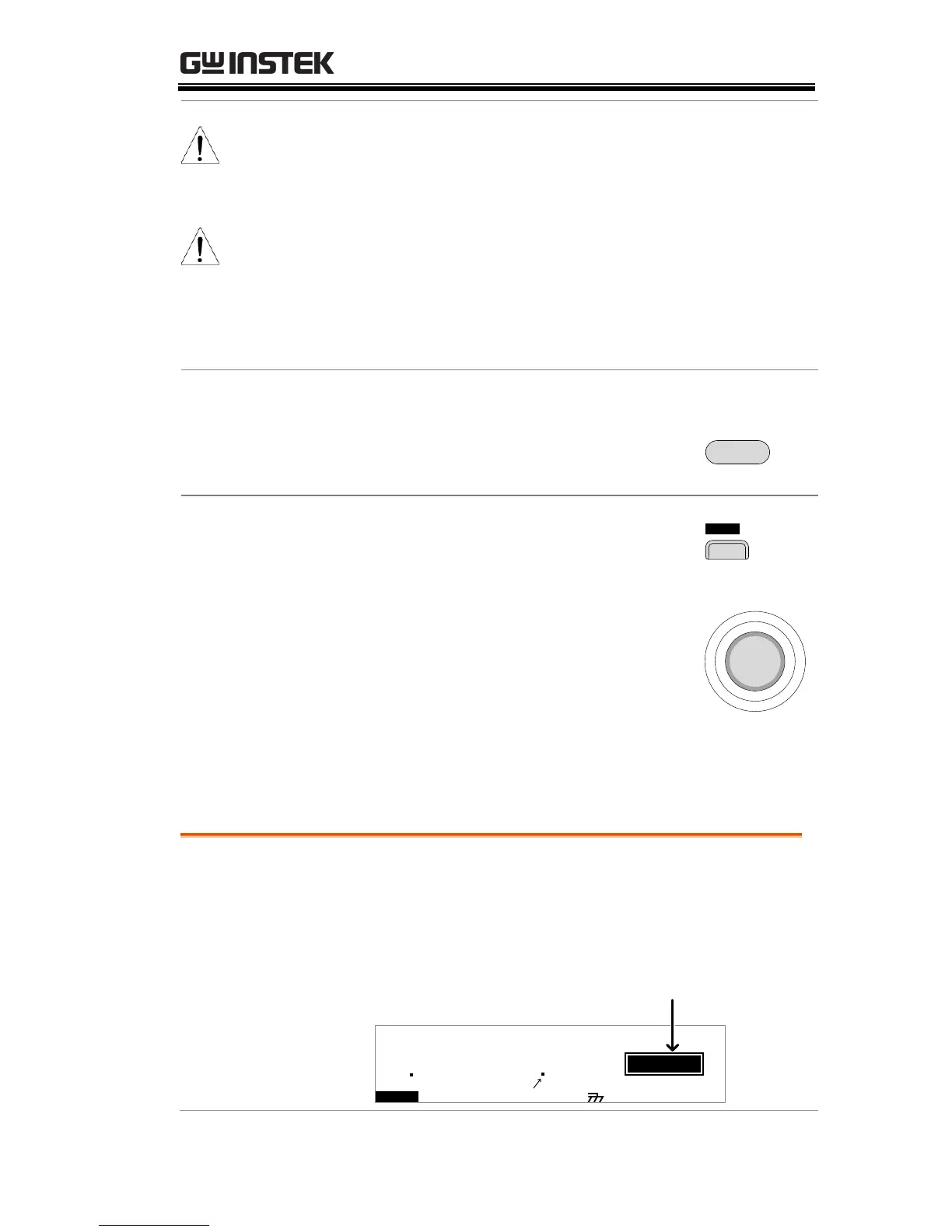

OPERATION
13
WARNING
If Double Action is active, the START button must
be pressed 500ms after the STOP button was
pressed to be able to start testing.
WARNING
If INTERLOCK is set to ON and the interlock
connector is not connected to the SIGNAL I/O
port, INTERLOCK OPEN will be displayed on the
screen, preventing the test from starting. See page
18 for the Common Utility settings.
Return to VIEW Status
Press the MANU/AUTO key when in READY status
to return to VIEW status.
MANU/AUTO
ZERO function (GB test only)
Short the SOURCE H/L & SENSE H/L terminals using
the GLT-115 alligator clips.
In the READY status, press the ZERO soft-key.
Press the START button to perform the zeroing.
The tester will go into the ZERO status.
When finished the tester will return to the VIEW status
and the REF# will be set as measured resistance from
the zeroing.
E R OZ
START
TEST Status
Description
TEST status is active when a MANU test or
AUTO test is running. Pressing STOP will
cancel the current test and any remaining steps
in the case of an AUTO test.
G
B
I R A CW D CW
E
F R E Q = 0 H z 6
0
100
k V
RA C = F FO
SET
MT I E = 0 0 1 . 0 SR
0 0 m AER F =# 0 .0
1 . 0 0 m AIH ES = 0T
0 0 . 1 S0A M P =R
MM A UN N A_2M A N U = * * * - 0 0
TEST status
T
m A
00 33
