GW Instek GPT-9801 Quick Start Guide

INTRODUCTION
5

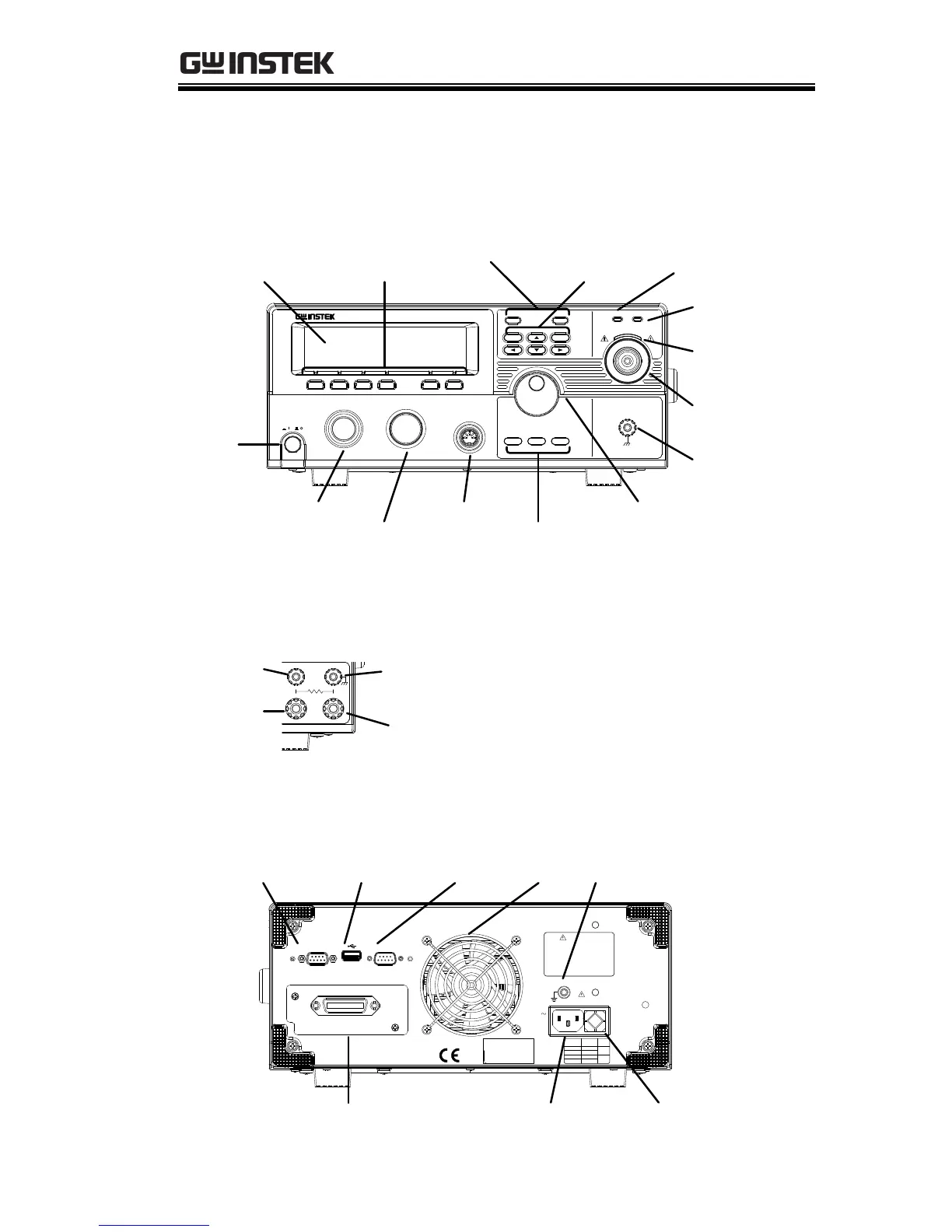

Panel Overview
Front Panel (GPT-9801/9802/9803)
POWER
START STOP
REMOTE
MANU/AUTO EDIT/SAVE UTILITY
ESC PAGE
GPT-9803
Tester
HIGH VOLTAGE
CAUTION
5.0 kVAC MAX.
6.0 kVDC MAX.
AC / DC Withstanding Voltage /
Insulation Resistance
RETURN
PASS FAIL READY TEST
PASS/FAIL indicators
Directional keysFunction keys
HIGH VOLTAGE
indicator
RETURN
terminal
REMOTE terminal
STOP button
START button
POWER
button
Display
Scroll wheel
Configuration keys
READY indicator
TEST indicator
HIGH VOLTAGE
output terminal
Front Panel (GPT-9804)
ESC PAGE
PASS FAIL
Tester
AC / DC Withstanding Voltage /
Insulation Resistance / Ground Bond
SENSE H
Rx
SENSE L
SOURCE LSOURCE H
RETURN
HIGH VOLTAGE
CAUTION
5.0 kVAC MAX.
6.0 kVDC MAX.
READY TEST
GPT-9804
POWER
START STOP
REMOTE
MANU/AUTO EDIT/SAVE UTILITY
SOURCE L
SENSE L &
RETURN Terminal
SENSE H
SOURCE H
Rear Panel (All models)
SIGNAL I/O USB A port RS232 port Fan
Fuse selectorLine voltage
Optional GPIB port
GND
TO AVOID ELECTRIC SHOCK THE POWER CORD
PROTECTIVE GROUNDING CONDUCTOR MUST BE
ONLY WITH SPECIFIED TYPE AND RATED FUSE
.
NO OPERATOR SERVICEABLE COMPONENTS INSIDE
.
DO NOT REMOVE COVERS REFER SERVICING TO
FOR CONTINUED FIRE PROTECTION
.
REPLACE
CONNECTED TO GROUND
.
QUALIFIED PERSONNEL .
WARNING
AC
LINE VOLTAGE
100V
230V
220V
120V
SELECTION
207~250V
RANGE
90~110V
198~242V
108~132V
(50/60 Hz)
T 5A
250V
FUSE
T 25A
250V
POWER MAX.
500VA
GND
SIGNAL I / O RS232
SER. NO . LB
ENSURE THE POWER IS REMOVED FROM
THE INSTRUMENT BEFORE REPLACING THE FUSE
GPIB
