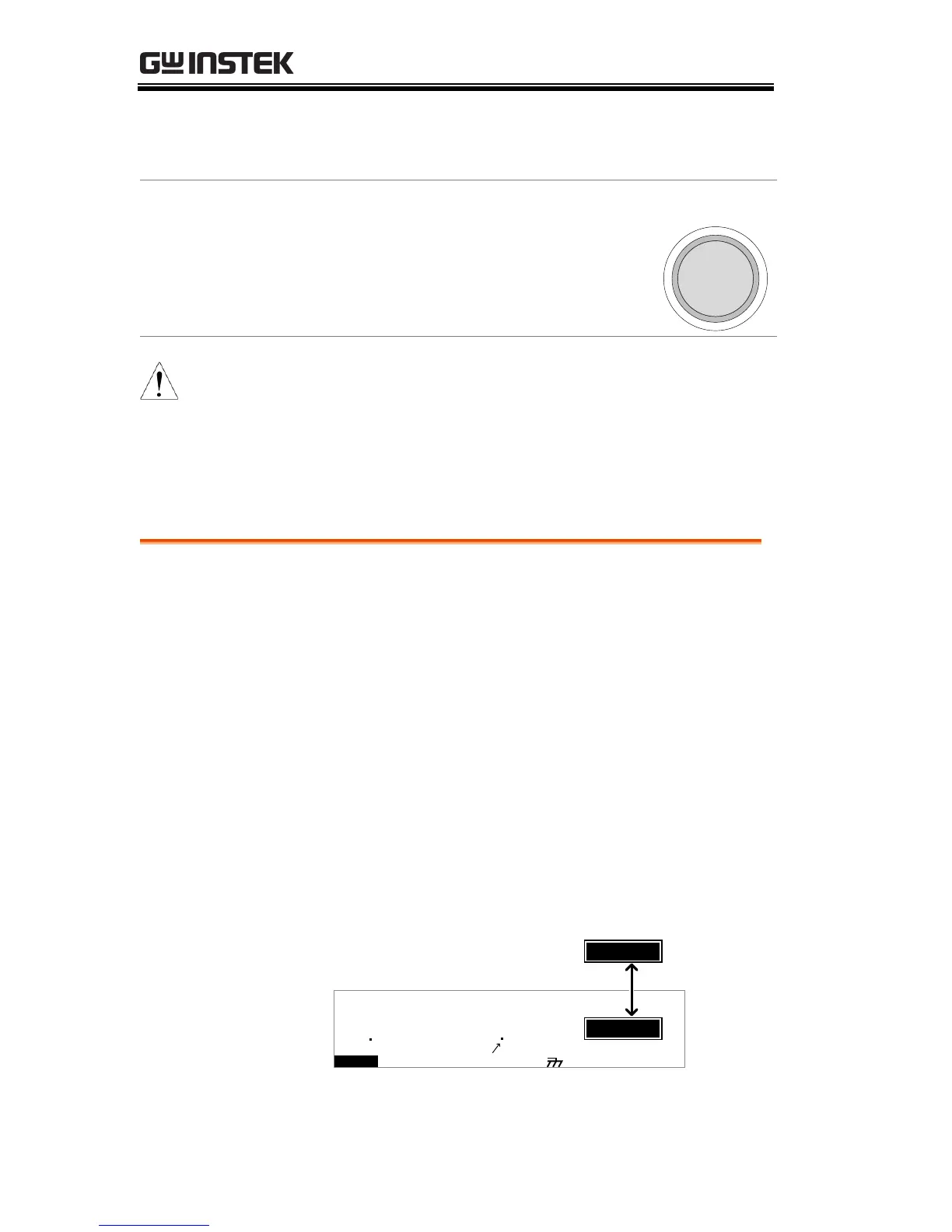

Get Test Results
 Wait for the MANU/AUTO test to finish.
Abort MANU Test/AUTO Test
 Press the STOP button
 The tester will go into the STOP status.
STOP
NOTE
If PASS/FAIL HOLD is active, the START button
can be used to continue to the next step in AUTO
mode whereas the STOP button can be used to
cancel the test in AUTO mode.
Results
Results
When the tester is allowed to run to
completion, a MANU test or AUTO test result
is shown as a PASS or FAIL.
For MANU mode, the screen will show PASS or
FAIL on the screen and the PASS or FAIL
indicators will light up.
For AUTO mode, a PASS or FAIL judgment
will be shown for each step in a table. The
AUTO test as a whole will be judged either as
PASS if all steps have passed, or as FAIL if any
one step has failed.
MANU MODE
Results
G
B
I R A CW D CW
E
F R E Q = 0 H z 6
0 100
k V
RA C = F FO
SAP
MT I E = 0 0 1 . 0 SR
0 0 m AER F =# 0 .0
1 . 0 0 m AIH ES = 0T
0 0 . 1 S0A M P =R
MM A UN N A_2M A N U = * * * - 0 0
S
IAF L
m A
00 33
