GW Instek MFG-2000 Series Quick Start Guide

GETTING STARTED
19

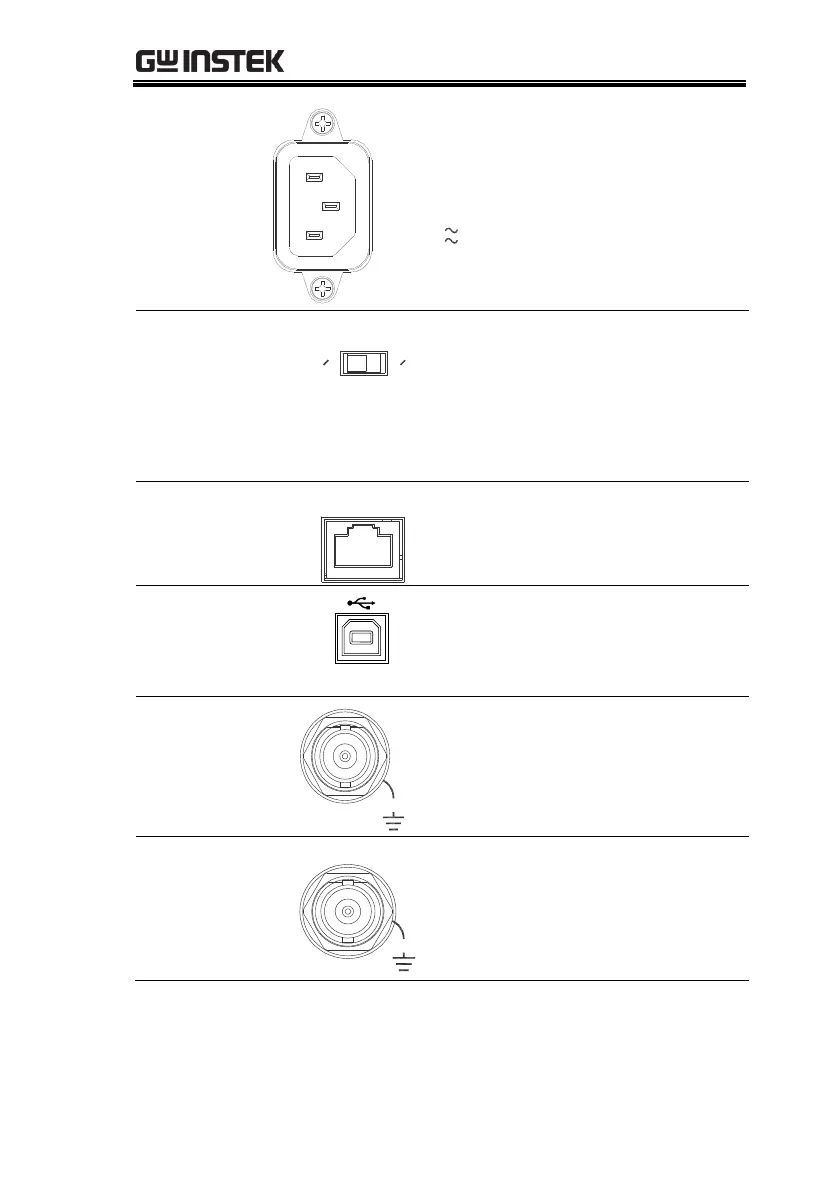

Power Input
Socket

     




      
     
        

      
Power input:
100~240V AC
50~60Hz. Or
100~120V AC
220~240V AC
50~60Hz.
Power Switch

      




      
      
       

      
Selects AC voltage: 100V~120V
Or 220V~240V.
This function can only be used
in the models with power
amplifier machines such as
MFG-2120MA, MFG-
2260MFA, MFG-2260MRA.
LAN Port
  
          
      
     
      

      
     
                                       
                                    
                
                                     
      
       
         
    
   
      

      

   
       
                             
   
   
   
Power socket input
Power switch
Fan
Trigger input
Modulation input
Counter input
Power amplifer input
Power amplifer output
SYNC input
USB port
LAN
The LAN port is used for
remote control over a network
(MFG-22XX only)
USB Device
Port
USB type-B device port is used
to connect the function
generator to a PC for remote
control.
Counter Input

      
      
     
    
   
      
  

      

      
      
      
Frequency counter input.
MOD Input

      
      
    
    
   
      
  

      

      
      
      
Please refer to the tables on
Page 21.
