GW Instek MFG-2000 Series Quick Start Guide

MFG-2000 Quick Start Guide
40
8. Press 5 + 0 + Degree
(F1).

Dg
9. Press MOD, PM (F4),
Source (F1), INT (F1).

 

10. Press the Output key.
PSK

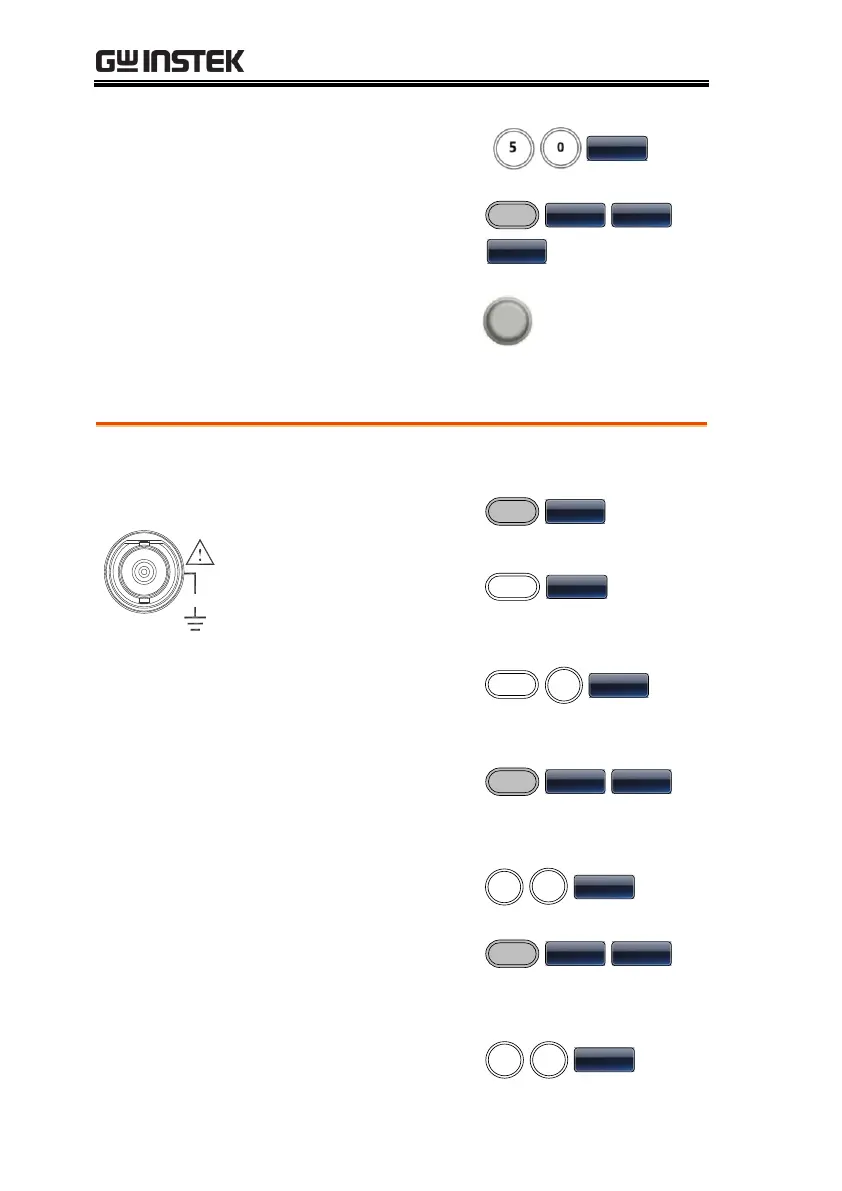

Example: PSK modulation. 50% phase deviation. 1kHz sine carrier wave. 10Hz PSK rate.
Internal source.
Output

      
      
     
    
   
      
  

      

      
      
      
1. Press MOD and select
PSK (F6).

K
2. Press Waveform and
select Sine(F1).


Input: N/A
3. Press the Freq/Rate
key, followed by 1 +
kHz (F5).

kz
Q
4. Press the MOD key,
select PSK (F6), PSK
Rate (F3).

K Ka
5. Press 1 + 0 + Hz (F2)


z
6. Press the MOD key,
select PSK (F6), PSK
Phase (F2).

K Kha
7. Press 5+ 0 + %(F3)

%

