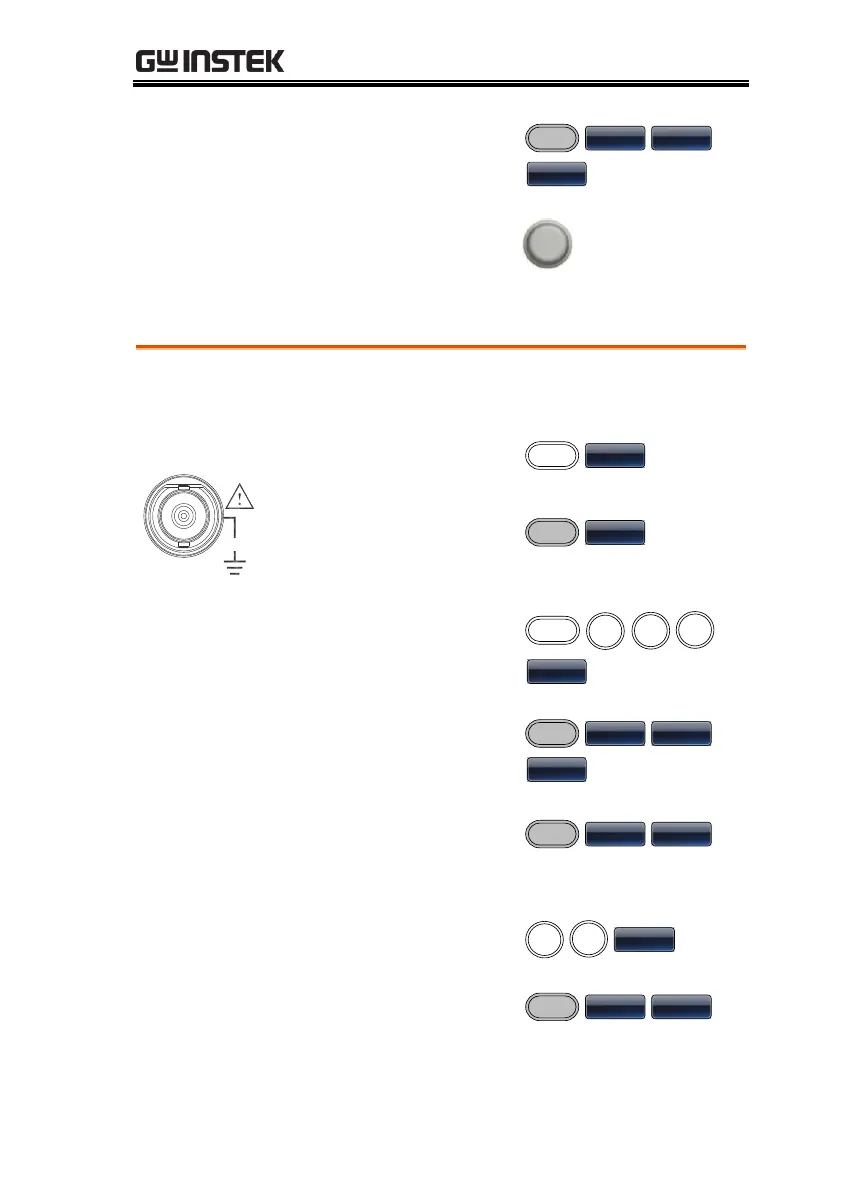

QUICK REFERENCE
41
8. Press MOD, PSK(F6),
Source (F1), INT (F1)

K 

9. Press the Output key
PWM
Example: PWM modulation. 800Hz carrier, 15kHz modulated sine
wave. 50% duty cycle. Internal source.
Output:

      
      
     
    
   
      
  

      

      
      
      
1. Press Waveform and
select Square (F2)

qa
2. Press MOD and select
PWM(F6)


Input: N/A
3. Press the Freq/Rate
key, followed by
8+0+0 Hz (F4).

Q


z
4. Press the MOD key,
select PWM (F6),
Shape (F4), Sine(F1).

 ha

5. Press MOD, select
PWM(F6),PWM
Freq(F3)

 q
6. Press 1 + 5+ kHz (F3).


kz
7. Press MOD, select
PWM(F6),Duty(F2)

 D
