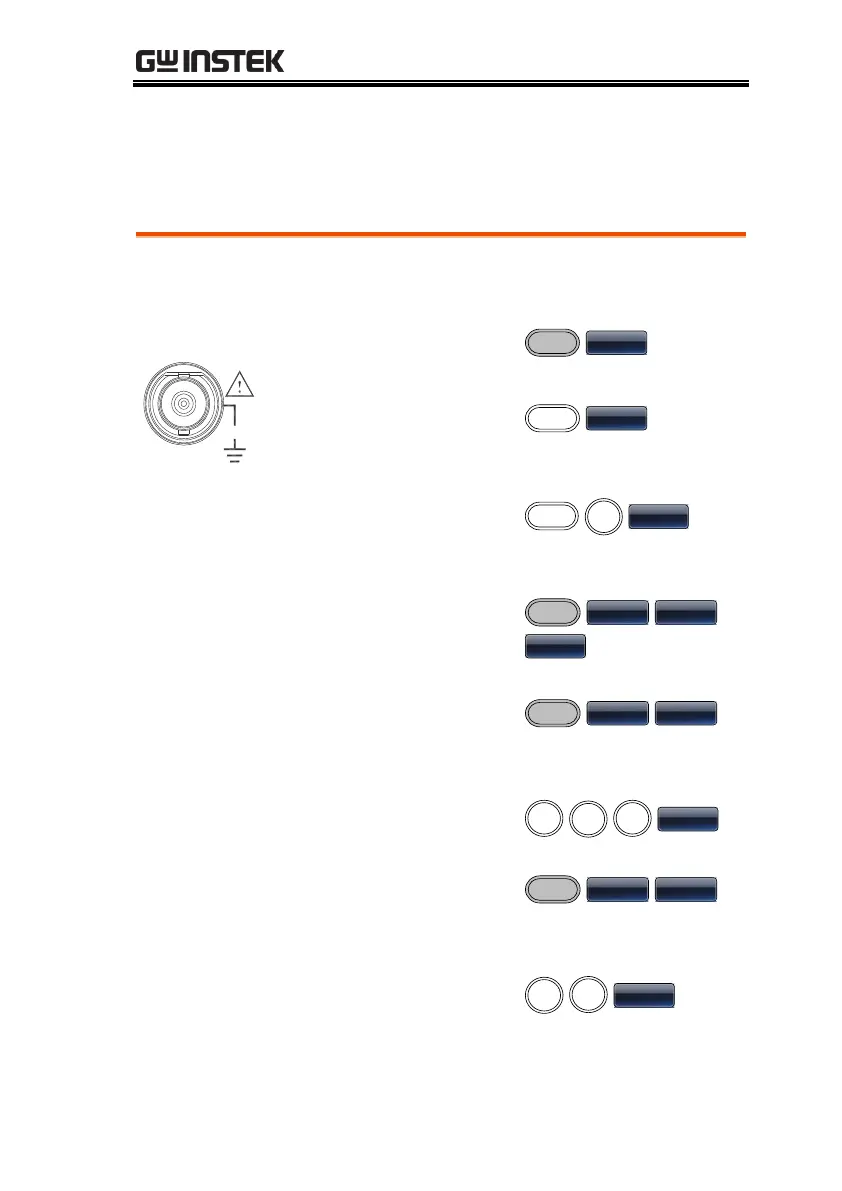

QUICK REFERENCE
35
Modulation
AM
Example: AM modulation. 100Hz modulating square wave. 1kHz
Sine wave carrier. 80% modulation depth.
Output:

      
      
     
    
   
      
  

      

      
      
      
1. Press the MOD key
and select AM (F1).


2. Press Waveform and
select Sine (F1).


Input: N/A
3. Press the Freq/Rate
key, followed by 1 +
kHz (F5).

kz
Q
4. Press the MOD key,
select AM (F1), Shape
(F4), Square (F2).

 ha
qa
5. Press the MOD key,
select AM (F1), AM
Freq (F3).

 q
6. Press 1 + 0 + 0 + Hz
(F2).


z

7. Press the MOD key,
select AM (F1), Depth
(F2).

 Dh
8. Press 8 + 0 + % (F1).


%
