Please find the following solution when the device doesn’t work
Please confirm the installation is correct
Please confirm whether the sequence of RJ45 cable meet the EIA/TIA568A or
568B industry standards;
Please replace device which can not work with a properly working one to check
whether the device is broken;
Please contact the factory if the problem stays unsolved.
;

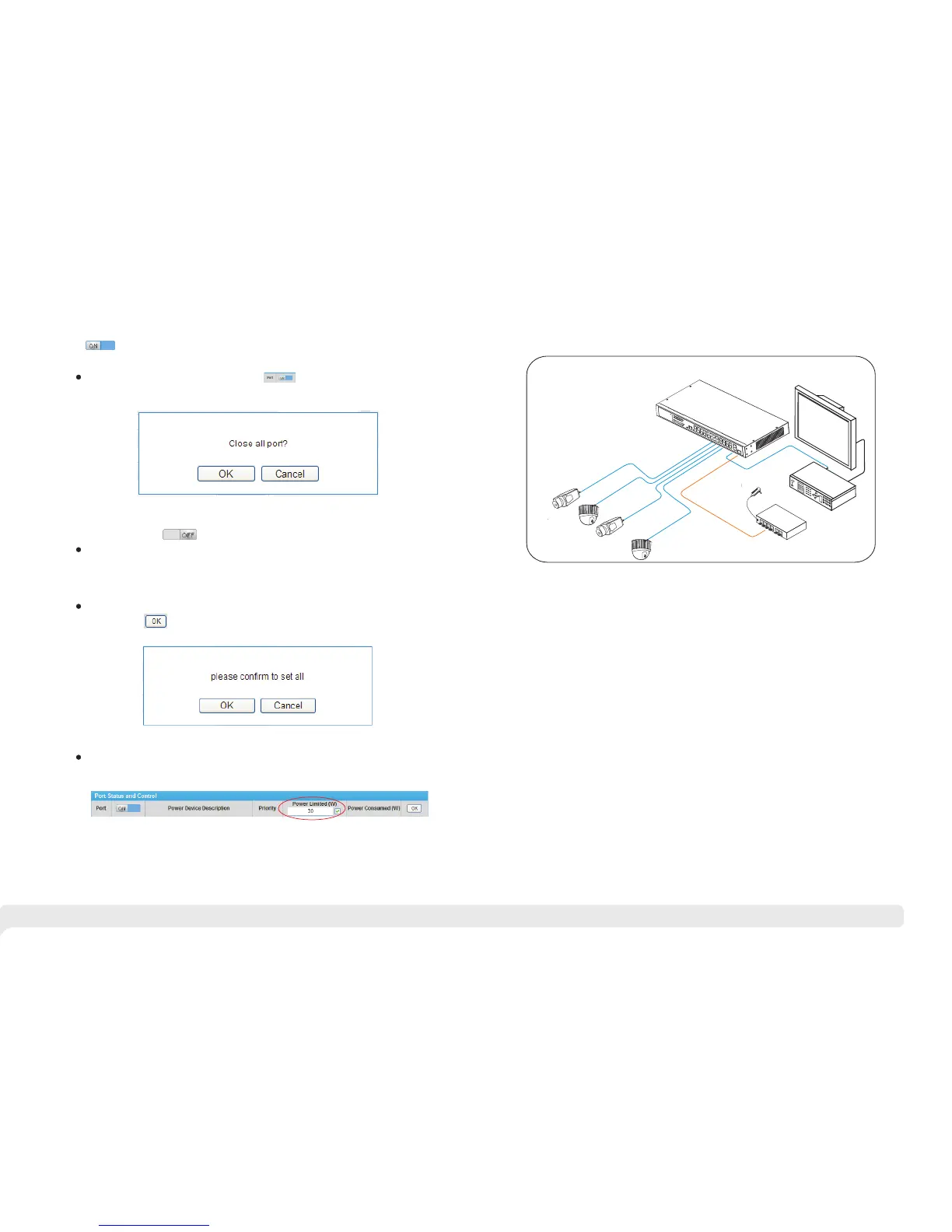

Turn off all the ports: press title bar button, popup dialog box as
shown below:
Press OK , when all the ports open, popup “setup is successful” , the
button become status.
Setting single port parameters : port parameters include powered device
location, priority and allowed maximum output power. After setting
parameters, press <OK> button of the corresponding port, then popup
“setting success” when operation finishes .
Setting all the port parameters : press [port control and status] [actual output
power(W)] button, then popup dialog box as shown below:
< >
Press OK when all the setting finishes, popup “setup is successful”.
Setting unified allowed maximum output power: as shown below:
< >,
After selecting the check box, all the ports allow maximum output power
depends on this value.
Press <OK>, when all the port opens, popup “setting success”, the button turns
to status.
21 22
3 5 Trouble Shooting.
3.4 Typical Application
This product design is environmental friendly. Please store, use and discard
this product in accordance with the relevant national legal/ regulatory
requirements.
Env ir on me nt p ro tection
Cat5/5e/6
LCD
display
NVR
s
witch
UT
P
1
-S
W24
-
T
P420
Fiber
PoE camera
PoE camera
PoE camera
PoE camera
