GW Security GWSW1602G User Manual

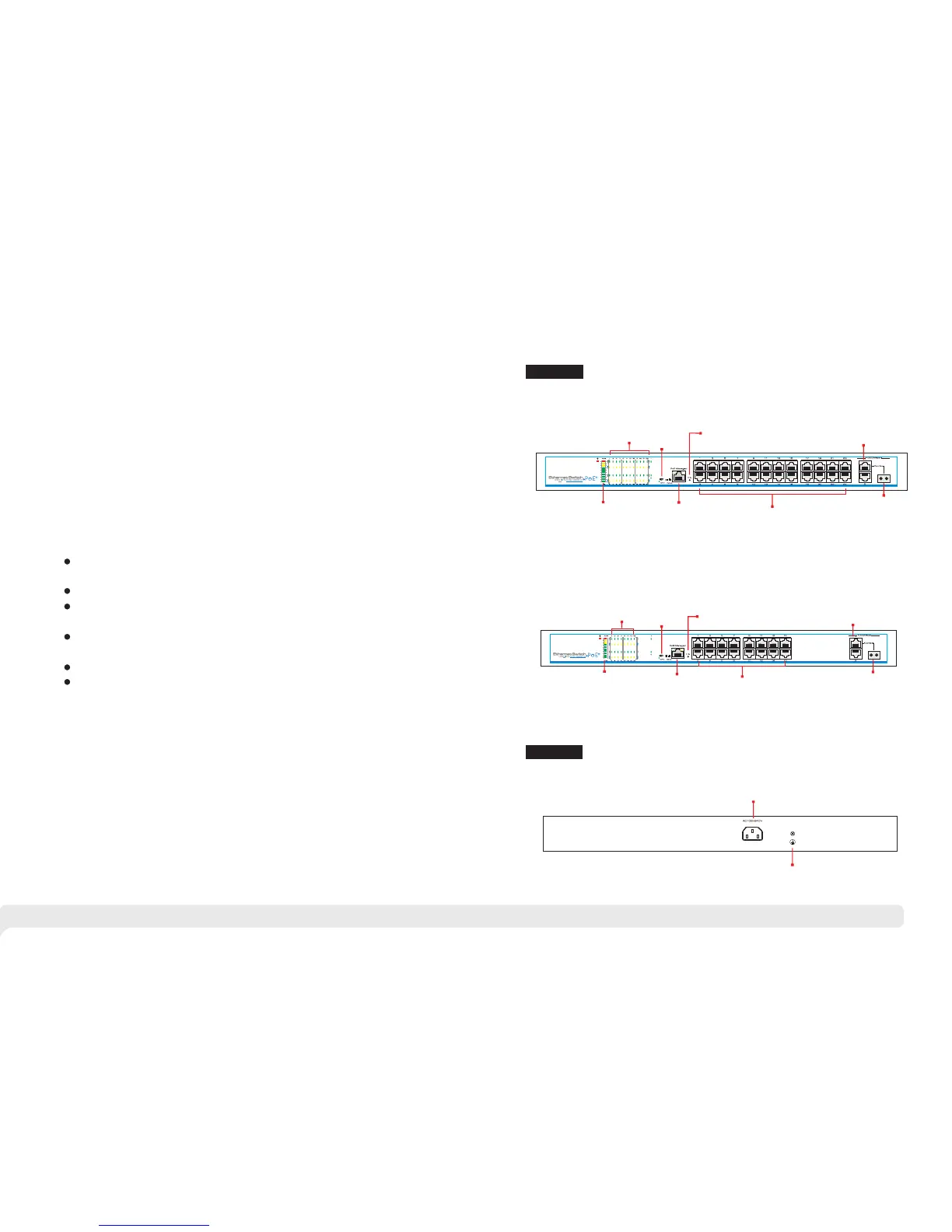

1 3 Board Diagram.
Back panel
Front panel
1 2
1 Product Introduction
1 1 Overview.
1.2 Product Feature
The 16/24 ports PoE switch is an unmanaged PoE Ethernet switch along with
16/24 * 100Base-TX downlink PoE ports and 2 * 1000Base-TX uplink Ethernet
ports featuring 30-watt 802.3at PoE+ as well as 1 additional Gigabit Combo
port. The total PoE power budget is up to 250/370 watts. It supports web-based
PoE management and real-time PoE output LED display.The device can be
widely used in video security monitoring systems, network projects, etc.
Uplink
Gigabit Ports
Uplink
Gigabit SFP
Combo Port
PoE Output Ports
PoE Web
Management
Port
PoE Output
LED
Reset
PoE Output
Percentage
LED
PoE Output Ports
Reset
PoE Web
Management
Port
PoE Output
LED
Uplink Gigabit
Ports
PoE Output
Percentage
LED
24 Po rt s PoE s wit ch
AC100~240V
Grounding Terminal
16 Po rt s PoE s wit ch
Provide 16 24x 100Mbps downlink PoE Ethernet ports, 2x gigabit uplink
Ethernet ports and 1x gigabit Fiber port;
Downlink Ethernet ports support PoE+, each port supports max. 30W output;
Support power consumption indication( LED indicates power output status);
support manage PoE on/off and power consumption setting via Web;
Accord with IEEE802.3、 IEEE802.3u、 IEEE802. 3ab、 IEEE802. 3 af/at
standard;
4K MAC address,2. 75Mb cache;
Quick installation, easy operation, convenient for wall-mounted、 desktop
and rack installations.
/
Uplink
Gigabit SFP
Combo Port
CCTV
Mode
CCTV
Mode

GW Security GWSW1602G Specifications

General

Brand	GW Security
Model	GWSW1602G
Category	Switch
Language	English
